Bio-Rad Model 680 Microplate Reader Accessories - Manual (Page 68)

Microplate Manager User Guide
60
Template Size
You can display a template in three sizes. Under the VIEW menu, select Show Full
Size, Show Compact, or Show Tiny. The smaller sizes are useful for viewing larger
templates.
If a template is too large to fit in the display window, it will be displayed with scroll
bars along the right side and bottom of the template window.
Cursor Feedback
When you move your cursor over a template, the well number is displayed next to the
cursor and in the status bar at the bottom of the Microplate Manager window. In
addition, if applicable, the assay number, well formatting, and current value of the
well are displayed in the status bar.

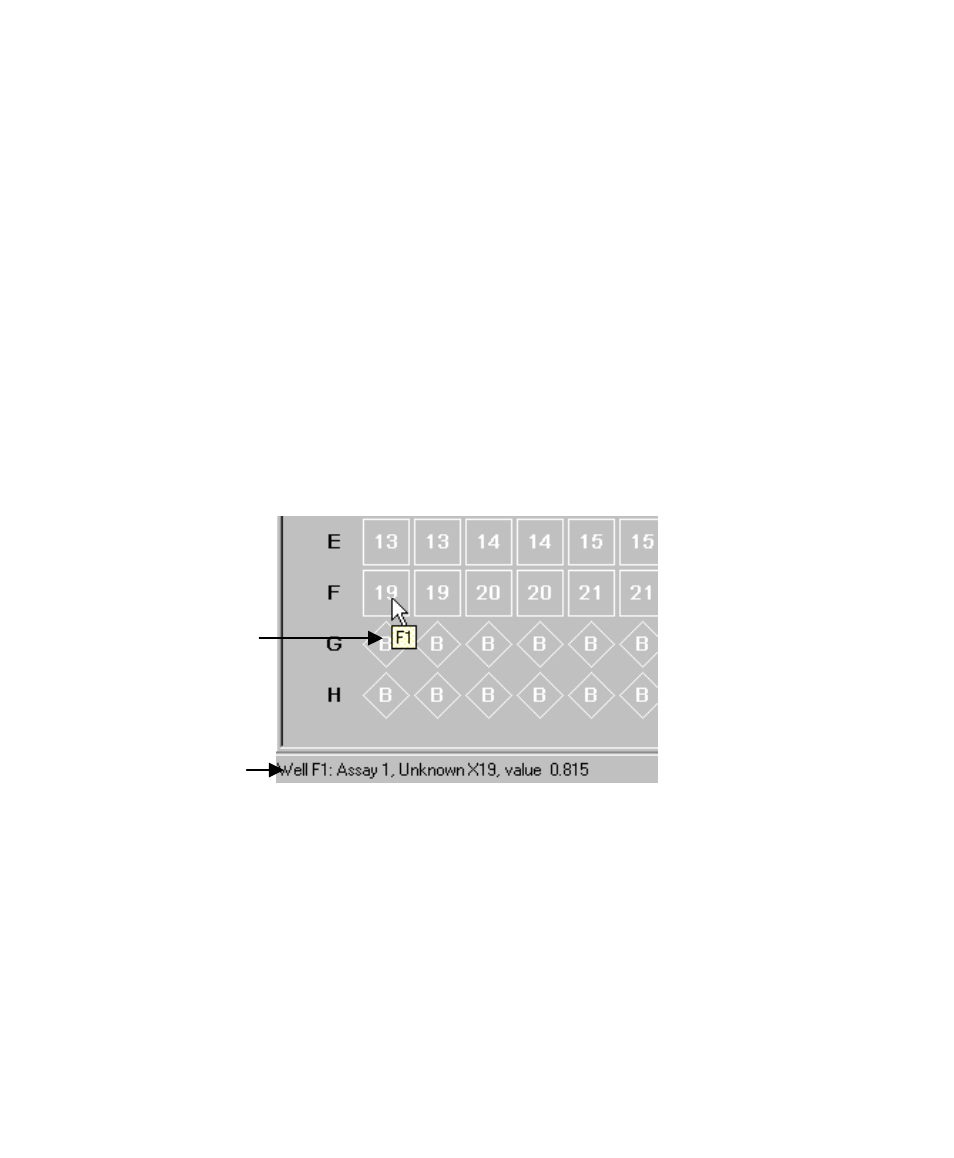

Figure 43. Example of cursor feedback in a template.
Information about Individual Wells
Another source of information about your template is the Well Info dialog box. To
open this dialog, click on a well and select Properties from the EDIT menu, or right-
click and select Properties from the drop-down list. This will open the info box.
Status Bar info
Tool tip
