Meter Shaft Settings
Refer to Figure 75
Front and rear meters have separate settings for sensor
setup and alarms.
Pulses per rev is normally the same for both meters,
except when disabling the sensor for an unused meter.
Alarm limits are typically different for each meter if
different materials are being applied.
Pulses per Rev (Meter)
Refer to Figure 76
Pulses per Rev (revolution) are the number of magnets
the associated sensor sees in one revolution of the shaft
being monitored.
The factory default is 2, which is correct for new
ADC2220 carts.
Changing this number to 0 turns the sensor OFF.
Low Alarm Point
The Low Alarm Point is set as a reference point for the
alarm. If the shaft turns slower than this designated
point, an alarm sounds.
High Alarm Point
The High Alarm Point is set as a reference point for the
alarm. If a shaft turns faster than this designated point,
an alarm sounds.

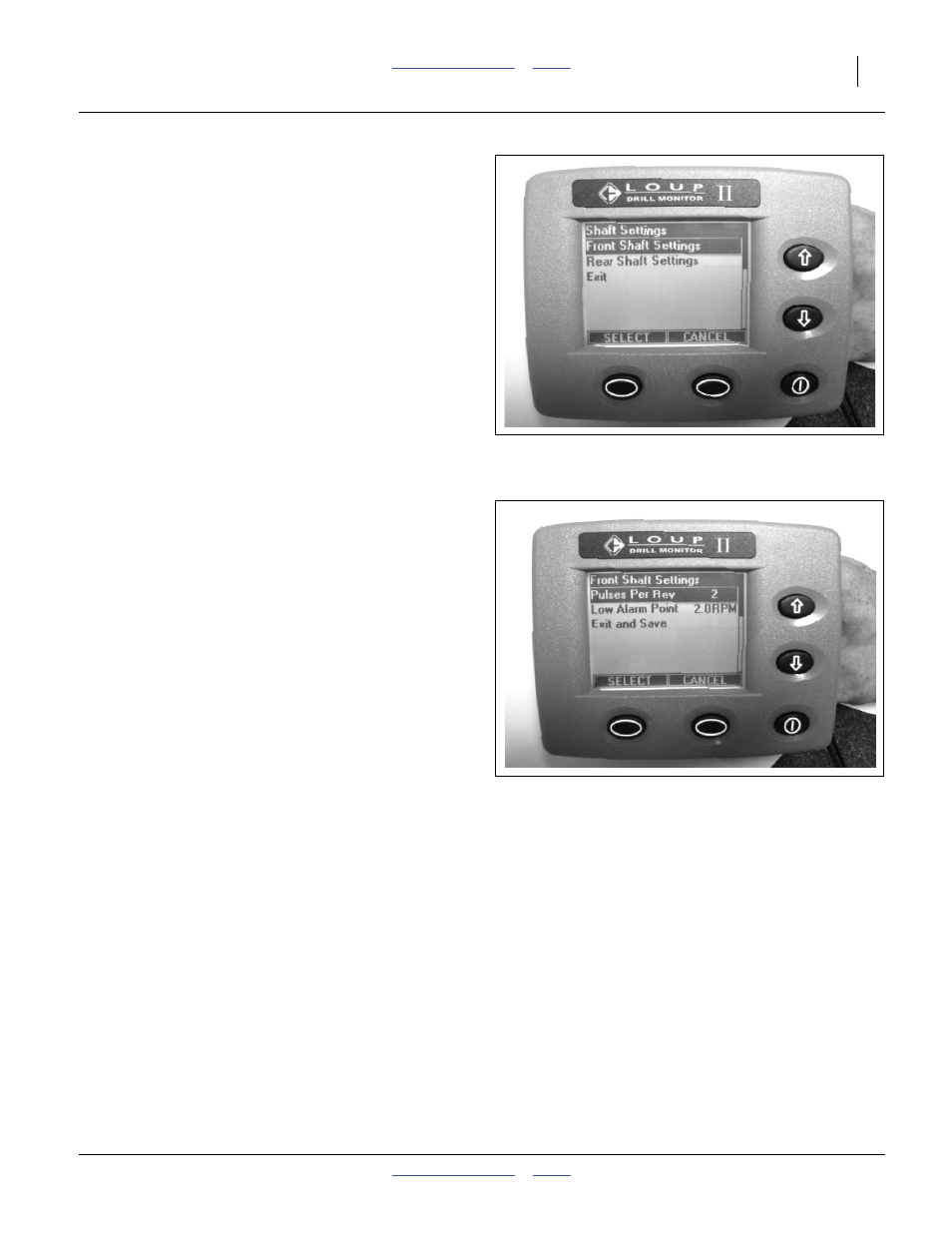

Figure 75
Shaft Settings Top Menu
29062
Figure 76
Front Shaft Settings
29063
