Appendix B - Initial Setup
Cart Drive System
Before hitching to the implement, check that the cart has
the correct sprockets. Without the correct sprockets, the
air drill will not meter seed accurately.
ADC2220 Sprocket Sizes
Sprocket Location
A B C
Drill
Model
Lower
Main
Clutch
Jackshaft
Input
ADI334 19T 38T 45T
ADI345 19T 29T 45T
CTA4000 17T 29T 45T
CTA4000HD 17T 29T 45T
NTA3010 17T 38T 37T
NTA3510 19T 38T 45T
C
B
A

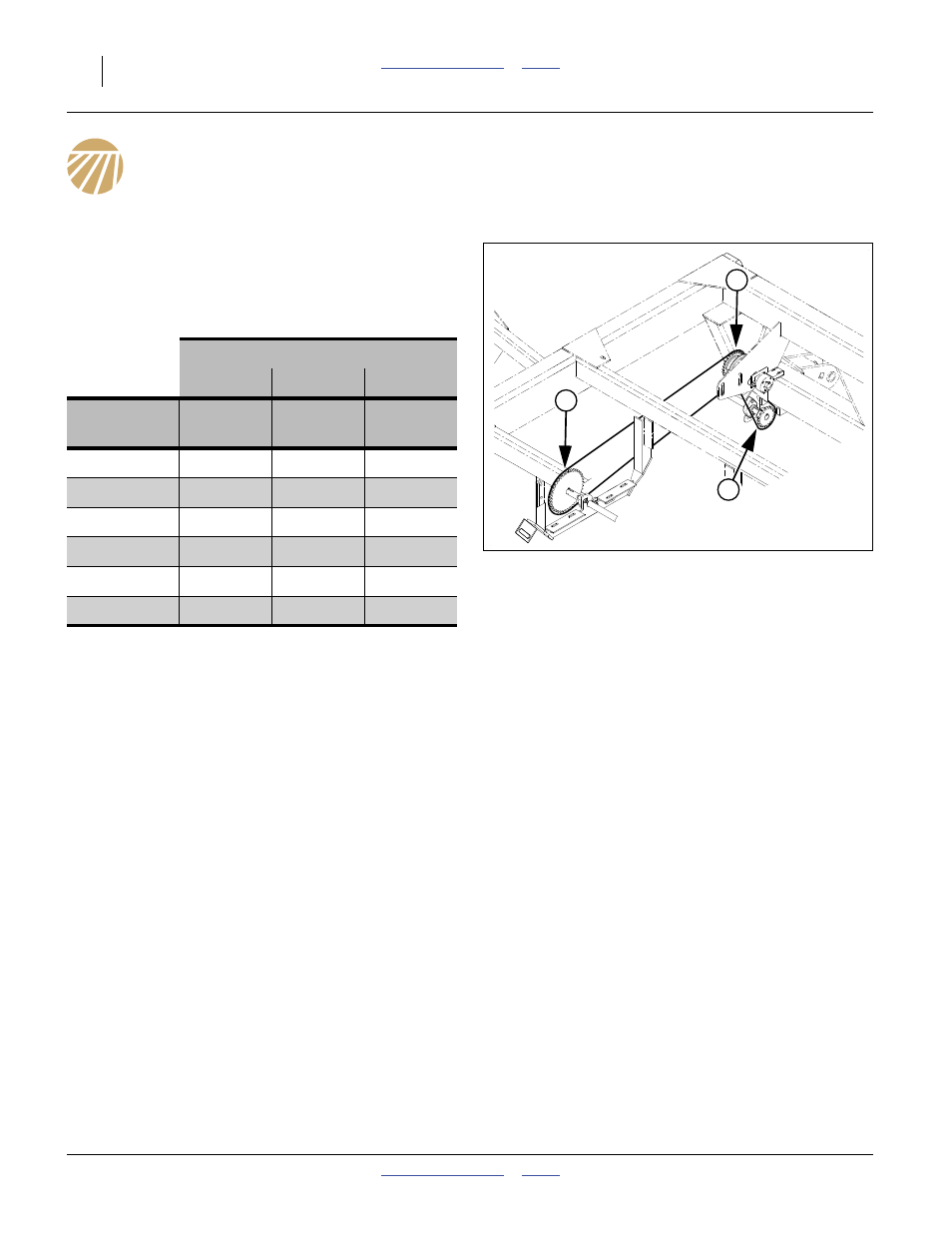

Figure 107
Cart Drive Sprockets
17063
