Refer to Figure 61
5.
Plug each sensor in as the monitor asks for them. If
the sensor is the correct type, it is immediately
recognized, the console beeps, and moves on to the
next sensor.
The first sensor the monitor looks for is a Fan sensor.
This is an implement-mounted sensor monitoring a shaft.
Plug it in now.
If the requested sensor is not mounted on the drill, use
the arrow keys to highlight “Skip this Sensor”, and press
SELECT.
Once the speed sensor has been accepted or skipped,
the monitor moves to the next sensor. The order the
monitor asks for sensors is:
a.
Fan
b.
Front Shaft
c.
Front Bin
d.
Rear Shaft
e.
Rear Bin
f.
Speed
g.
Blockage Module 1 through 8
Refer to Figure 62
Note: If during the Learn Mode you receive a
Wrong Sensor Type for:
message, the monitor is detecting a type of sensor
that is incorrect for this function. For example: This
message would appear if monitor asks for Front
Shaft but a hopper sensor is plugged in.

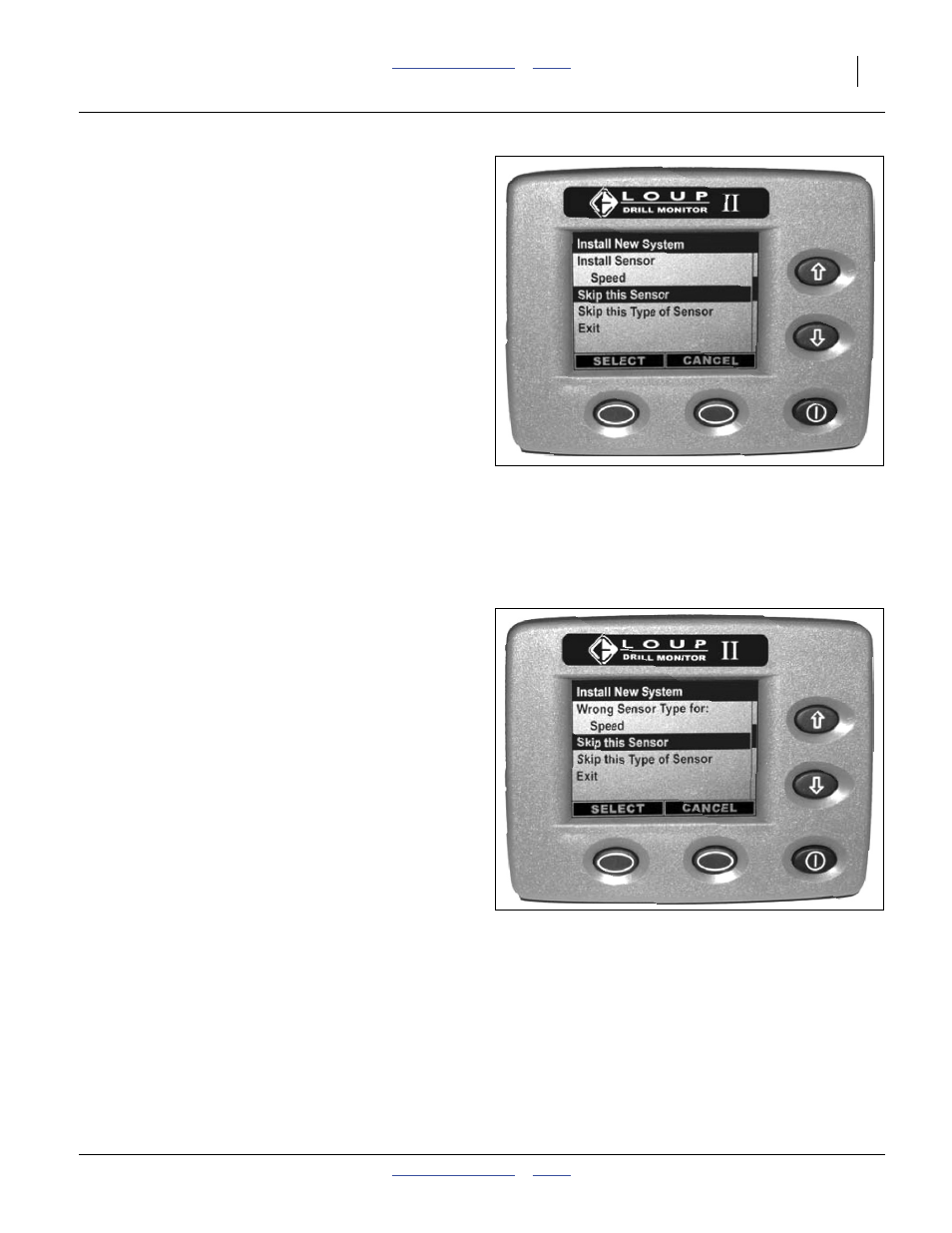

Figure 61
Begin Learn New System
29049
Figure 62
Sensor Type Error
29050
