Normal Operate Screen
Refer to Figure 35
The Normal Operate Screen is divided into the following
areas:
• 2 - Display Sections or 1 enlarged Display Section
(User Chosen)
• 1 - Active alarm window or, if there are no active
alarms, the current ground speed is displayed
• 1 - Bin level icon window
• 2 - Soft-key label windows
Below is a sample screen:
In the Sample Normal Operate Screen above, the different areas are as follows:
• The Top Display Section is the window with “Field Area” in it.
• The Bottom Display Section is the “Fan Speed” window.
• The active alarm window has the Ground Speed “88.8 MPH” displayed on it.
• The Bin Level Window is shown as 3 graphics:
F shows a full hopper
R shows an empty hopper
• The soft key windows are displaying “Menu” and “Enlarge”.

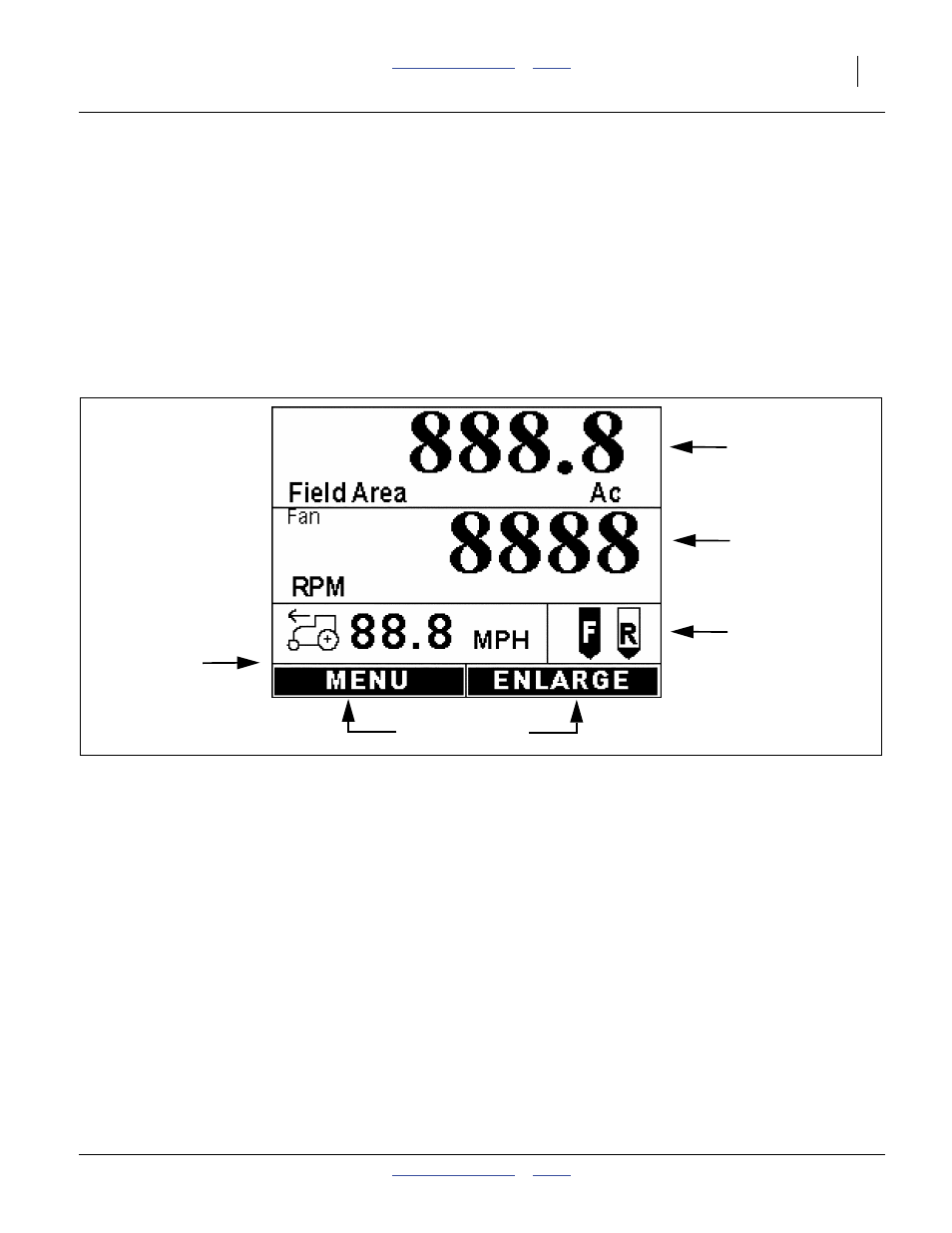

Figure 35
Console Display Regions
29024
Top Display
Bottom Display
Bin Level
Display
Active Alarm
Display
Soft Key Windows
