Install Implement Sensors
Refer to Figure 115
4.
Unplug all sensors from the harness.
5. Reset system by turning the monitor on while holding
down the ACK, MODE and down-arrow buttons at
the same time.
6. Plug sensors into the harness in the requested
order. The monitor readout flashes MISSING and the
sensor that should be plugged in. As the requested
sensor is plugged into the harness, the monitor
double beeps, acknowledging the sensor. The
monitor then requests the next sensor.
The monitor requests sensors as follows:
• Fan Speed
• Front Metering Shaft
• Front Bin
• Rear Metering Shaft
• Rear Bin
• Ground Speed
• Flow1-7
Note: Optional blockage sensors come in 2 varieties; Pin
sensors and Optical sensors. The blockage
module package included with your system
identifies the style of sensor supplied.
0
20
INCHES OF WA TER 15
25
10
MAG NEH ELIC
5
FAN SPEED
FRONT
ME
TER
BIN
LEVEL
LEVEL
BIN
REAR
ME
TER
TO
IMPLEMENT
GROUND SPEED

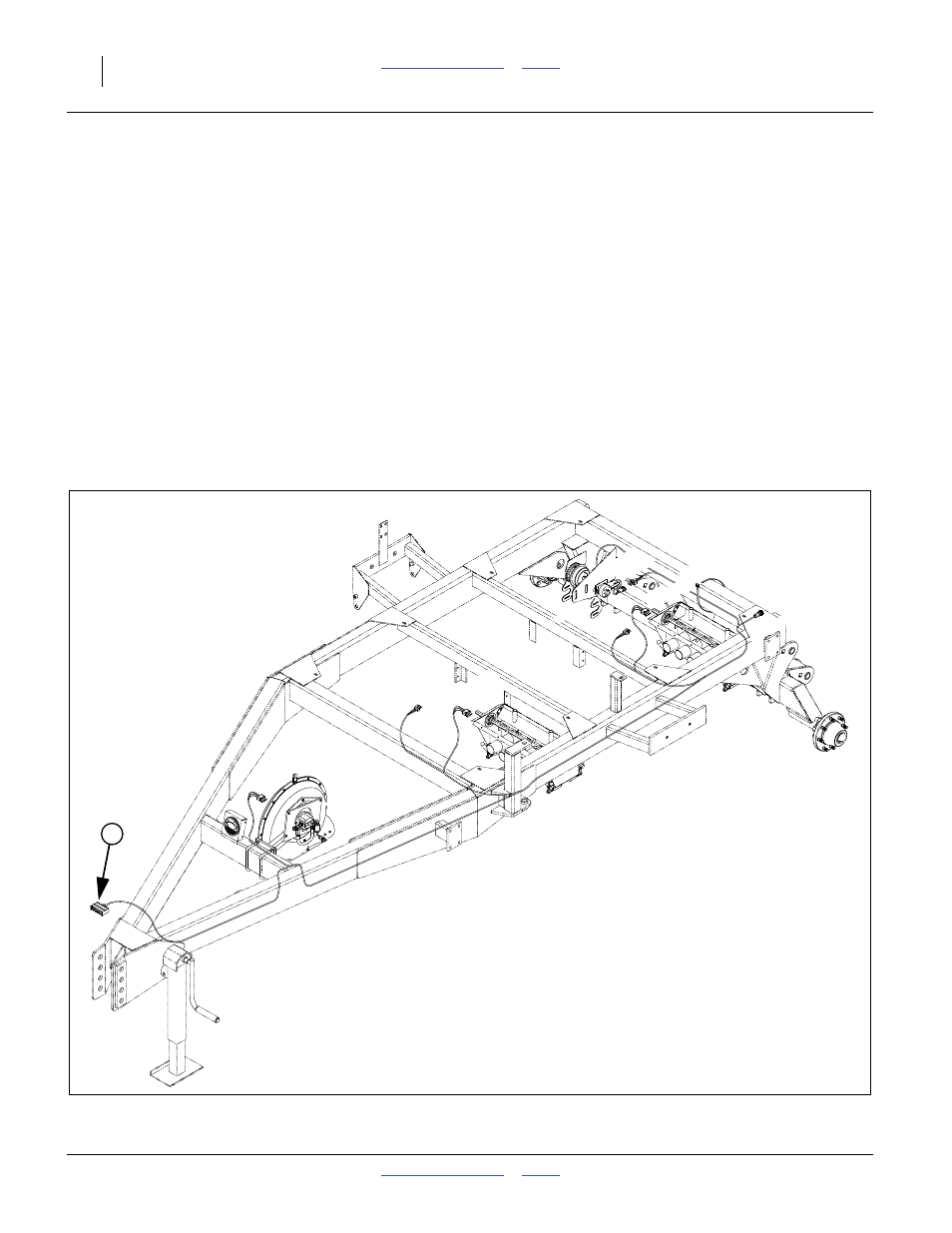

Figure 115
Cart Sensor Locations
16206
5
