56 ADC2220 Table of Contents Index Great Plains Manufacturing, Inc.
167-073M Table of Contents Index 2012-10-17
Implement Setup
Factory defaults for the following settings are very likely
to be incorrect for your drill. Review and set these values
before calibrating or planting.
Refer to Figure 66
Units
The Units setting changes the units of measure that the
monitor accepts as input, calculates and displays.
Note: If you change Units, existing settings are converted
to the new units, excepting Speed Calibration
course length, which remains 400 feet (121.9 m).
• Imperial: (U.S. customary)
U.S. Survey Acres / Feet / Miles per Hour
• Metric:
Hectares / Meters / Kilometers per Hour
Implement Width
Refer to table at right
Adjust to the size of your drill. The factory default of
40.0 feet (1219 cm) is only approximately correct for
40 foot (12.2 m) drills.
Clear Field Area
Use to zero or clear your Field Acres.
Clear Total Area
Use to zero or clear your Total Acres.

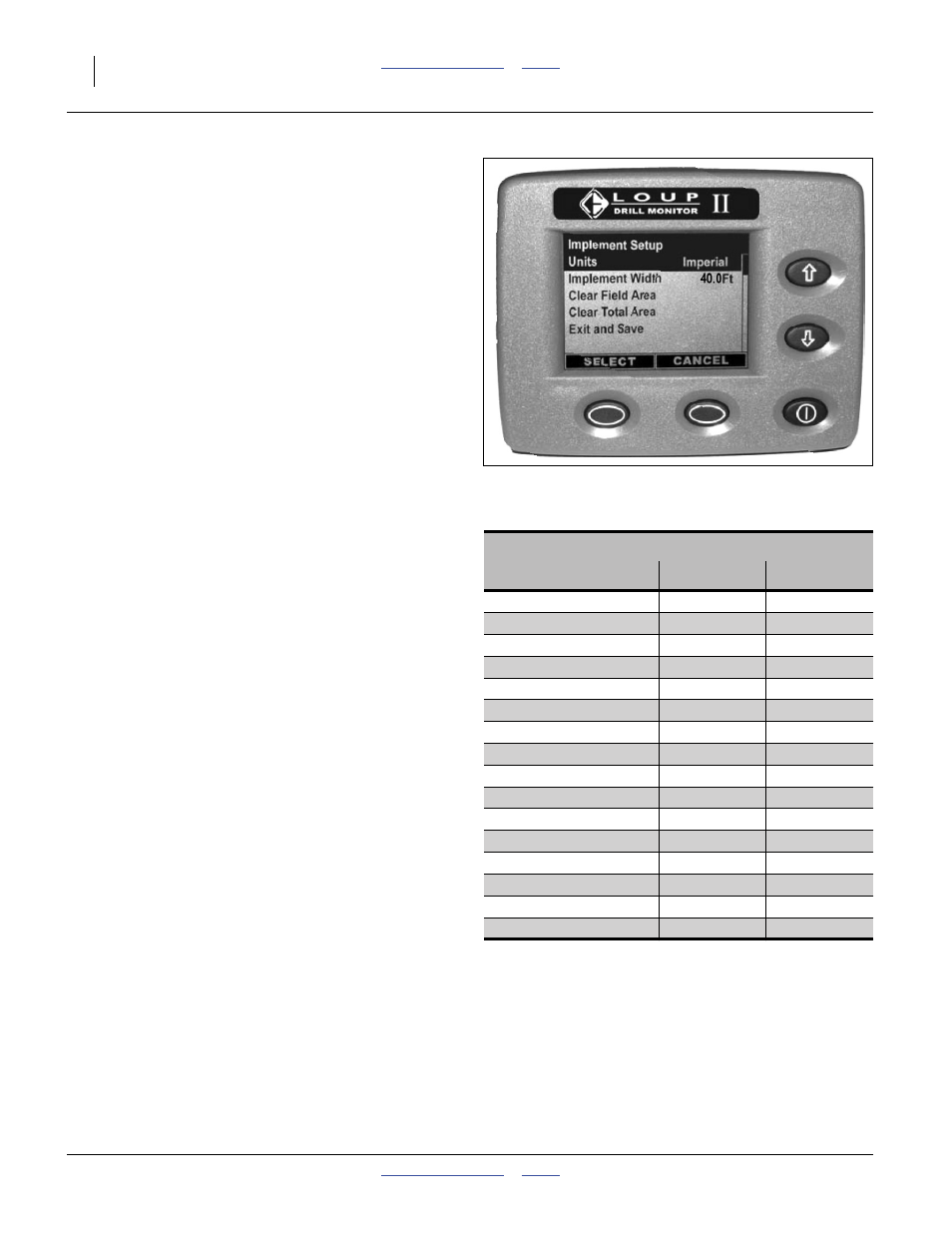

Figure 66
Implement Setup
29054
Width
a
(Swath)
a. For implements not listed, measure between
outside end row units, plus one row space.
Imperial
b
b. Use “Imperial” for U.S. customary units.
Metric
ADI334-3512 35.0 (feet) 10.7 (m)
ADI334-4010 33.3 (feet) 10.2 (m)
ADI334-5507 32.1 (feet) 9.8 (m)
ADI345-4512 45.0 (feet) 13.7 (m)
ADI345-5510 45.8 (feet) 14.0 (m)
ADI345-7507 43.8 (feet) 14.0 (m)
CTA4000-5010 40.6 (feet) 12.4 (m)
CTA4000-6575 40.6 (feet) 12.4 (m)
CTA4000-8006 40.5 (feet) 12.4 (m)
CTA4000HD-5010 40.6 (feet) 12.4 (m)
CTA4000HD-6575 40.6 (feet) 12.4 (m)
CTA4000HD-8006 40.5 (feet) 12.4 (m)
NTA3010-3610 30.3 (feet) 9.2 (m)
NTA3010-4875 30.3 (feet) 9.2 (m)
NTA3510-4010 33.7 (feet) 10.3 (m)
NTA3510-5575 34.7 (feet) 10.6 (m)
