Refer to Figure 63
6.
When all sensors have been plugged in or skipped,
the monitor displays Installation Complete.
7.
Press SELECT.
The monitor displays the Normal Operate Screen.
Note: It is recommended that you turn the monitor off and
back on to ensure the Learn Mode was completed
properly. If the Startup Menu appears when the
monitor is turned on, check that the monitor has not
been disconnected from the harness. If a sensor
Missed or Wrong Sensor Type for message
appears, check that all harness connections are
secure. If no connections are unplugged it may be
necessary to Re-Learn the system.
If problems persist, contact your Great Plains dealer.
System Settings
Refer to Figure 64
Pressing the MENU button on the Normal Operate
Screen accesses your system settings.
Use the DOWN arrow to highlight the desired menu.
Press the SELECT button to enter the selected menu
item.
Review and change these settings as necessary.
All new systems must have the proper implement width and
ground speed to give accurate readings. A Ground Speed
Calibration must be done on all new systems (see page 57).
Systems that include blockage sensors must perform a
Blockage Calibration (See page 62)

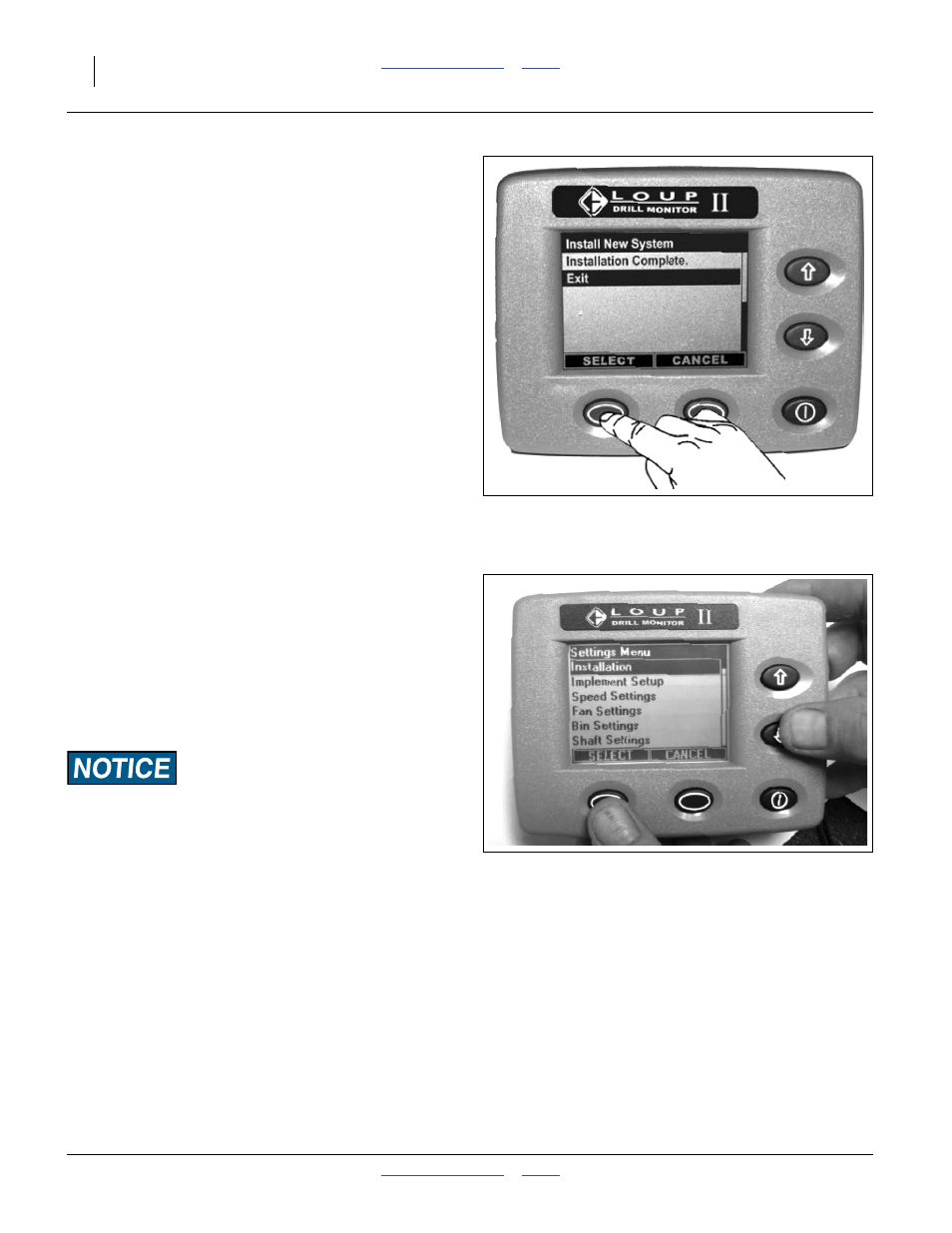

Figure 63
Sensor Scan Complete
29051
Figure 64
Settings Menu
29052
