Hopper Lids
Keep lids closed. Keep tightly closed for operations.
Keep loosely closed for storage. Open only for material
loading, hopper clean-out and lid maintenance.
Lid Opening
Refer to Figure 10
1.
Lift handle .
2. Swing handle out until hook releases from
U-bolt .
3. Move hook clear of U-bolt and re-close handle.
4. Swing lid open.
Lid Closing
1. Open handle and engage hook on U-bolt .
2. Close handle with hook engaged for operations or
short-term parking.
For long-term storage, do not engage hook or latch
handle, to avoid deforming the seal.
3. For storage, particularly unlatched, a locked chain
deters entry.
Strainer
Refer to Figure 11
Each hopper is equipped with a strainer
intended to:
• capture foreign matter in seed and materials that is too
large to pass through the meter, and
• prevent entry.
Leave the strainer in place except during strainer and
hopper cleaning.
Check the strainer for residue prior to each loading
operation. Remove, empty and return it to the hopper.
For strainer or hopper cleaning, the strainer lifts out when
the lid is fully open.

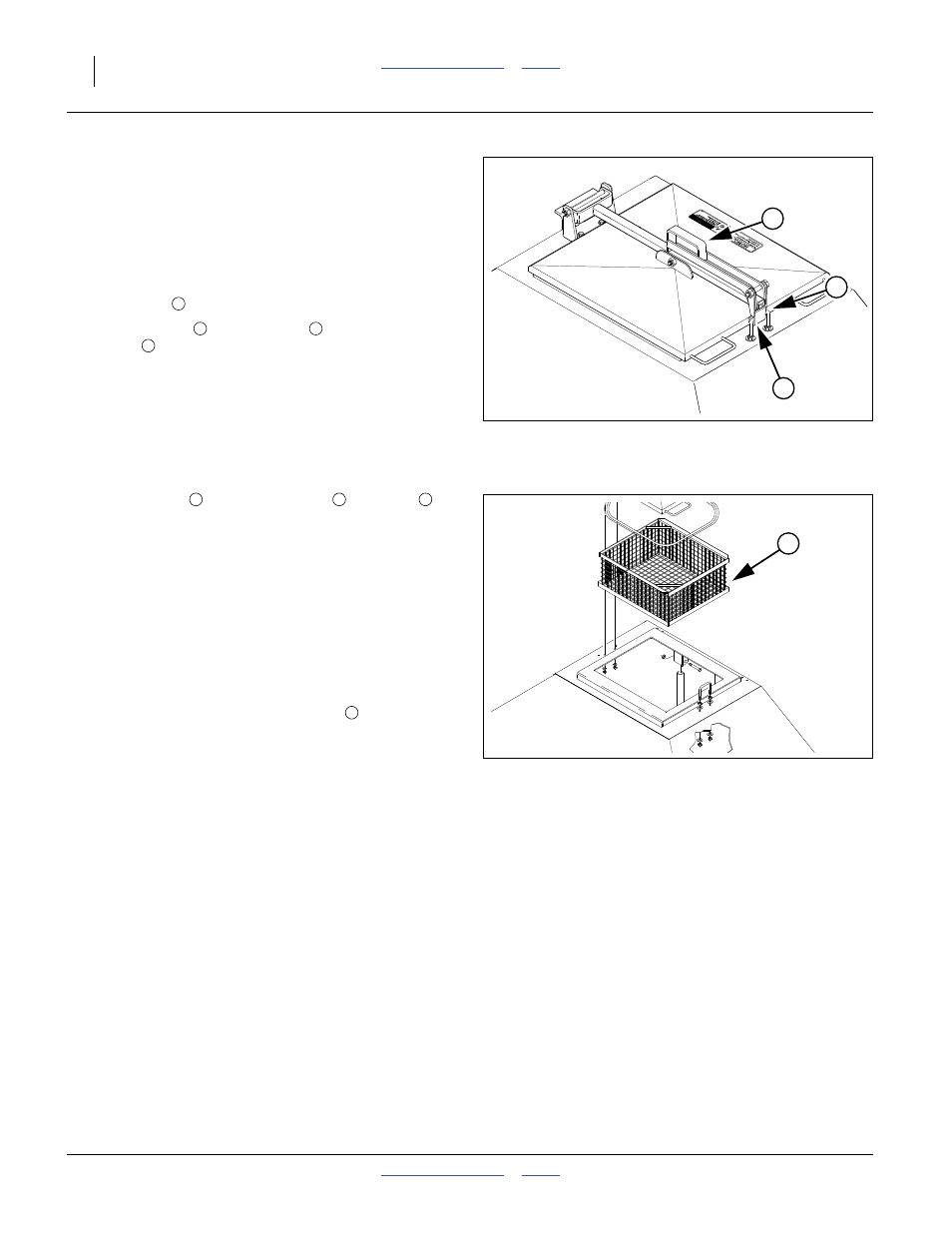

Figure 10
Hopper Lid Latched
16191
4
3
2
2
2 3
4
Figure 11
Hopper Strainer
16137
5
2 3 4
5
