Preparation and Setup
17
2014-07-23
401-479M
Leveling Planter

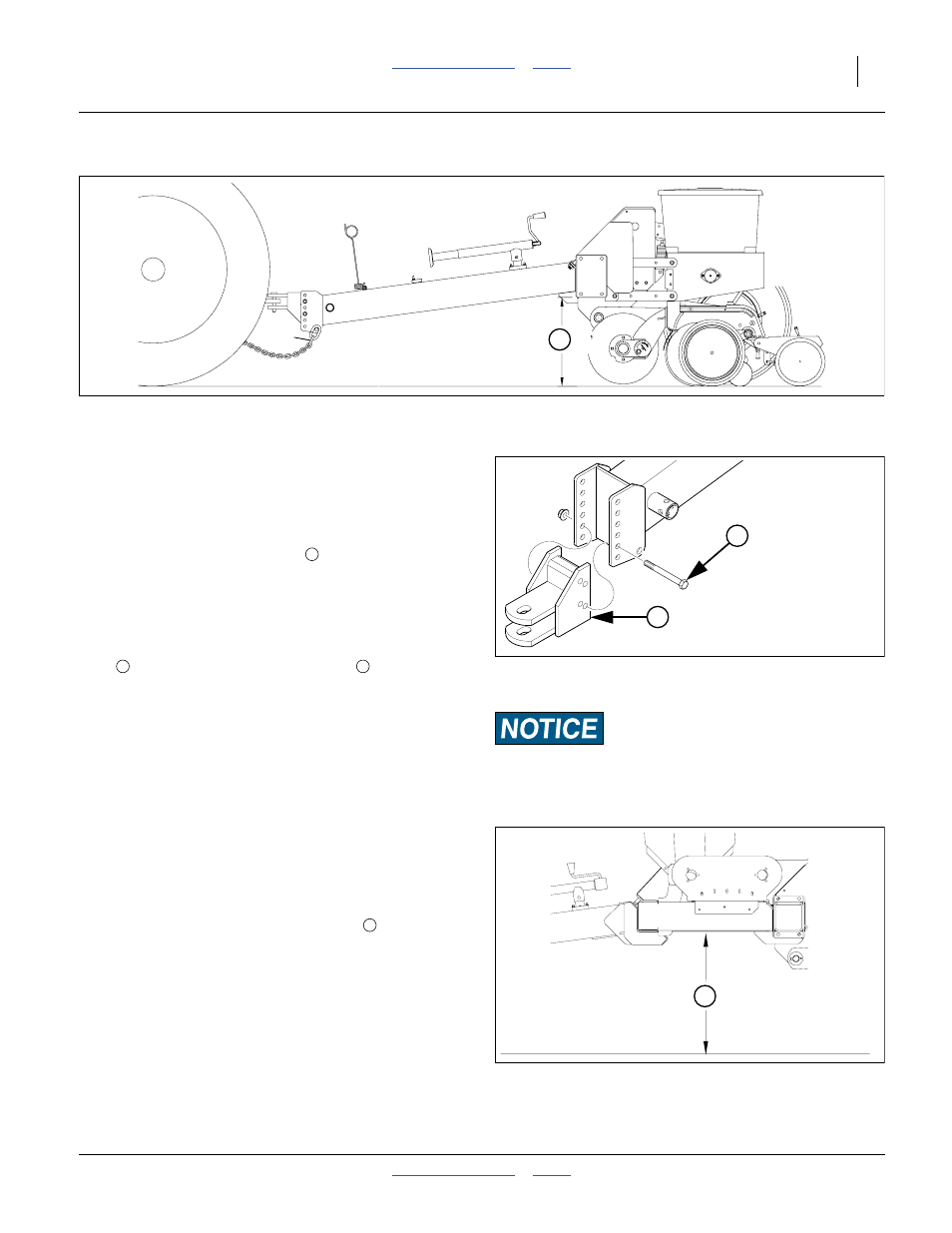

Refer to Figure 10
During initial setup and periodically throughout the
season, check that the planter runs level. When planting,
the top of the hopper support panel should be parallel to
the ground as shown.
To level the planter, the distance
from bottom of the
mainframe tube to the ground, must be:
between 51 and 56 cm (20 and 22 inches)
with the planter lowered into planting position.
Refer to Figure 11
To obtain the correct height, remove the two hitch
bolts
, and reposition the planter hitch
on the
tongue.
The hitch can be turned over for extreme height
changes.
Planter Frame Height
Refer to Figure 12
It may be necessary to adjust planter frame height when
leveling the planter.
Lower planter to planting position.
For proper planter frame height, distance
from bottom
of frame tube to ground should measure:
51 and 56 cm (20 and 22 inches)
from ground.
Figure 10
Setting tool bar Height
24009
5
Equipment Damage Risk:
Always have two bolts through both hitch and tongue.
Do not rely on a single bolt.
Figure 11
Hitch Height Adjustment
16865
7
6
5
6
7
Figure 12
Frame Height
16865
5
5
