Electrical Hookup
Seed Monitor Console

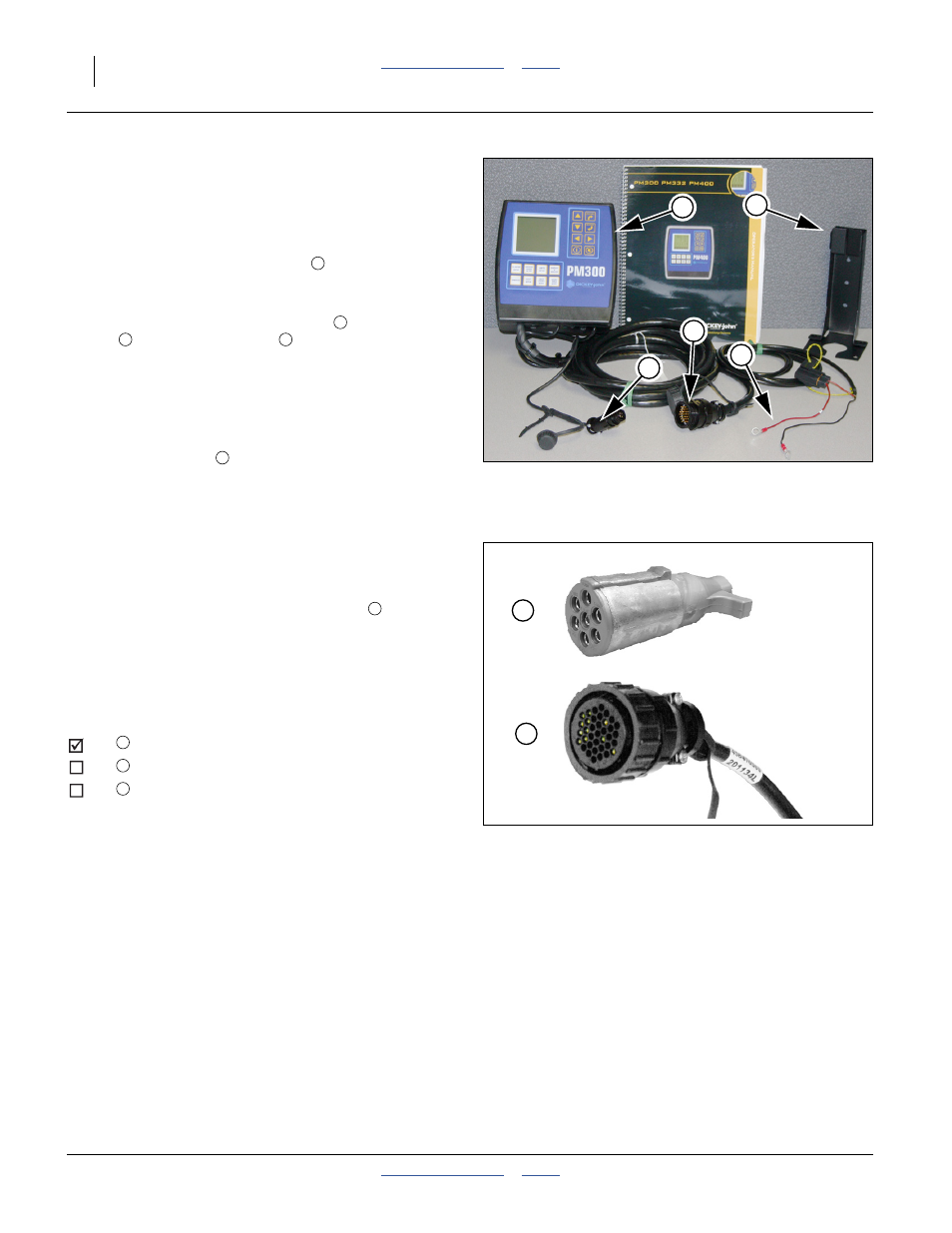

Refer to Figure 8
If the planter is equipped with one of the two optional
seed monitors, the PM300 console
needs to be
mounted in the cab of the tractor to be used with the
planter.
The monitor includes cables for power , speed
sensor and sensor harness . Installation
instructions are found in the included DICKEY-john
®
manual.
Power color code is:
+ positive: red
- negative: black
The included bracket requires customer-supplied
fasteners.
Lighting Harness
Refer to Figure 9
The standard PD8070 Planter lighting harness is
terminated with an ASAE J560b receptacle
. If your
tractor has a European style 7-pin connector, your dealer
can assist with replacing the planter connector.
Mate Connectors at Hitch
After installing any console or connector required, plug
and secure the connectors at the hitch.
Make sure tractor is shut down with accessory power off
before making connections. Make all connections prior to
planter movement.
Figure 8
PM300 Tractor Components
28138
1 5
3
4
2
1
2
3 4
5
Lights
DICKEY-john
®
Planter Control
___________________________
2
1
Figure 9
Connector Identification
25236
34574
1
1
2
3
