OPERATION 4-10 Manual 0-2653
F. Current Ramping Selection (SW1)
The Current Ramping Selection Switch (SW1), located
on the Switching PC Board, turns current ramping
ON or OFF. Current ramping must be turned ON for
Merlin 6000GST operation. In dual power supply
systems the Slave Power Supply must have current
ramping turned ON also. If this switch is set incor-
rectly poor parts life may result.
C u rre n t R a m p in g
SW 1-1
Po s itio n
SW 1-2
Po s itio n
D isa b le d 0 (O f f) 0 (O f f)
En a b le d * 1 (O n ) 1 (O n )
* = F act o ry Se t ting
NOTE
The ON position is in the direction of the arrow
silkscreened on the printed circuit board.
A-01839
Switching Control PC Board
SW1

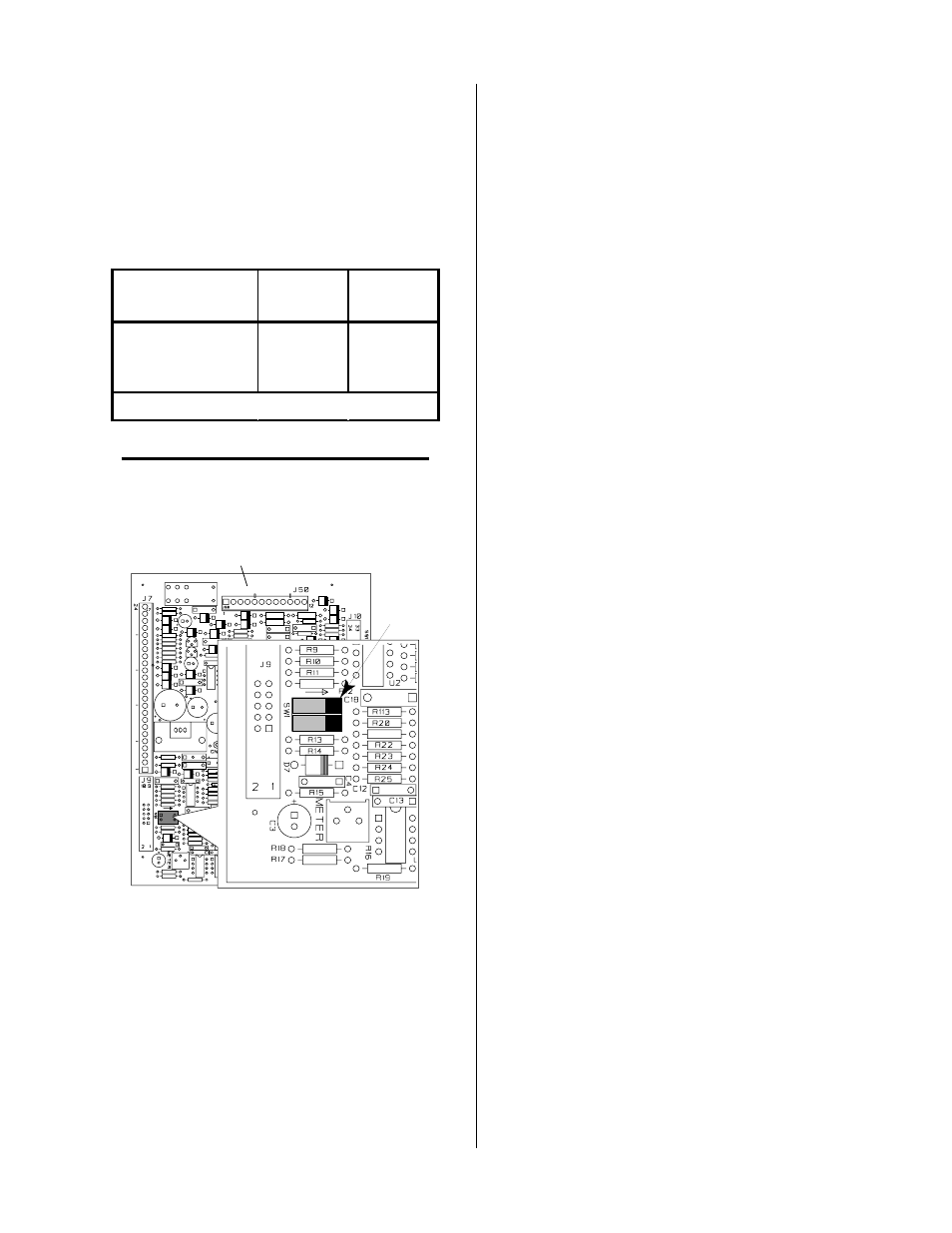

Figure 4-15 Current Ramping Selection Switch SW1
Location
