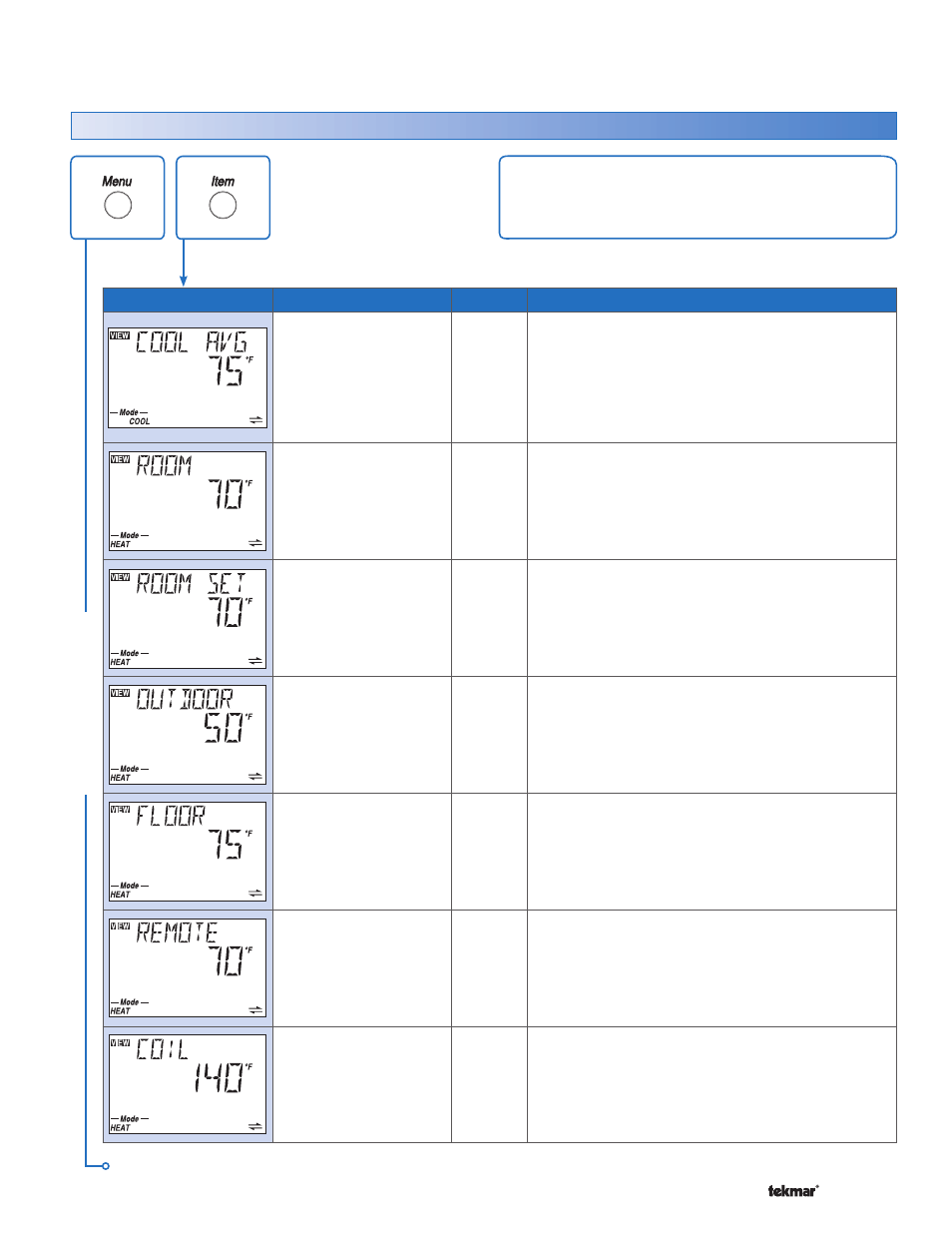

Display Menus
View Menu (1 of 2)
Item Field Range Access Description
-58 to 212°F
(-50.0 to 100.0°C)
SEC
LTD
USER
INST
ADV
COOL AVERAGE SECTION D
Average room temperature of the cool group master
and members.
Note: This item is only available when Cooling Stage
is set to 1 or 2 and this thermostat is a cool group
master.
-58 to 212°F
(-50.0 to 100.0°C)
SEC
LTD
USER
INST
ADV
ROOM SECTION A
Current air temperature in the room.
Note: This item is only available when the Room Sensor
is set to On or Sensor 1, 2, or 3 is set to Room.
– – –, 40 to 95°F
(– – –, 4.5 to 35.0°C)
USER
INST
ADV
ROOM SET SECTION A
Selected room temperature.
Note: This item is only available when the Room Sensor
is set to On or Sensor 1, 2, or 3 is set to Room.
– – – (if no recent
message),
-58 to 212°F
(-50.0 to 100.0°C)
SEC
LTD
USER
INST
ADV
OUTDOOR SECTION A
Current temperature at the outdoor sensor.
Note: This item is only available when an outdoor
sensor is connected to the tN4 network.
-58 to 212°F
(-50.0 to 100.0°C)
SEC
LTD
USER
INST
ADV
FLOOR SECTION A
Current floor temperature.
Note: This item is only available when Sensor 1, 2,
or 3 is set to Floor.
-58 to 212°F
(-50.0 to 100.0°C)
USER
INST
ADV
REMOTE SENSOR SECTION A
Current temperature at the remote sensor location.
Note: This item is only available when Sensor 1 is
set to Remote.
-58 to 212°F
(-50.0 to 100.0°C)
INST
ADV
COIL SENSOR SECTION A
Current temperature at the coil sensor.
Note: This item is only available when Sensor 3 is
set to Coil.
The View menu items display the current operating
temperatures and status information of the system.
Continued on next page.
VIEW MENU
