Test Menu (1 of 1)

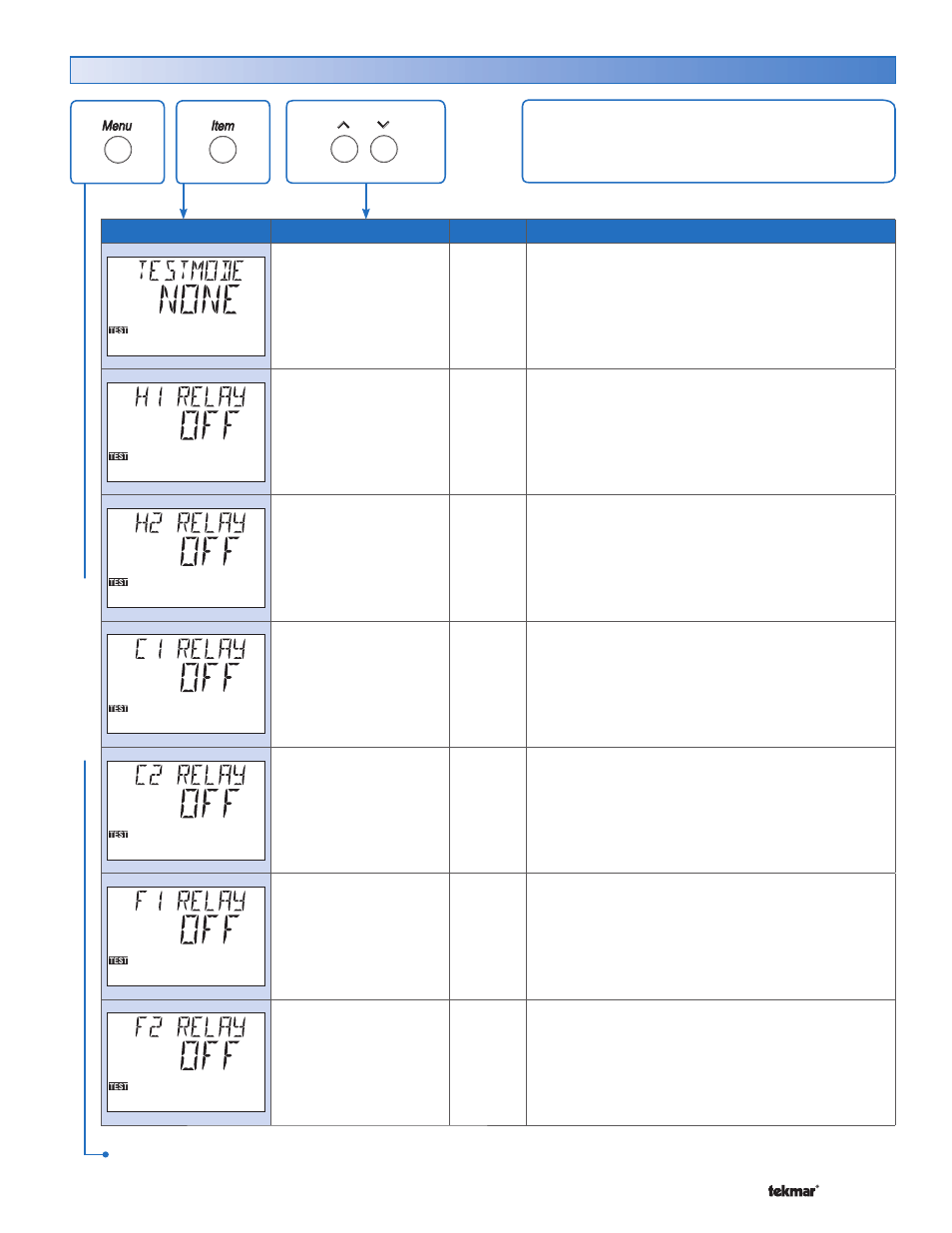

The Test Menu Items allow for testing of each relay
on the thermostat.
Item Field Range Access Description
NONE, AUTO, MAN
Default = NONE
ADV
TEST MODE
Select either manual or automatic test sequence of
the thermostat.
OFF, ON
Default = OFF
ADV
HEAT 1 RELAY
Manually turn on Heat 1 Relay for up to 5 minutes.
Note: This item is only available when Test Mode
is manual.
OFF, ON
Default = OFF
ADV
HEAT 2 RELAY
Manually turn on Heat 2 Relay for up to 5 minutes.
Note: This item is only available when Heat 2 Terminal
is not set to None and Test Mode is manual.
OFF, ON
Default = OFF
ADV
COOL 1 RELAY
Manually turn on Cool 1 Relay for up to 5 minutes.
Note: This item is only available when Cool Stage is
set to 1 or 2 and Test Mode is manual.
OFF, ON
Default = OFF
ADV
COOL 2 RELAY
Manually turn on Cool 2 Relay for up to 5 minutes.
Note: This item is only available when Cool Stage is
set to 2 and Test Mode is manual.
OFF, ON
Default = OFF
ADV
FAN 1 RELAY
Manually turn on Fan 1 Relay for up to 5 minutes.
Note: This item is only available when Fan Mode is
set to 1 through 5 or Fan 1 Vent is set to On and Test
Mode is manual.
OFF, ON
Default = OFF
ADV
FAN 2 RELAY
Manually turn on Fan 2 Relay for up to 5 minutes.
Note: This item is only available when Fan Mode is
set to 3, 4, or 5, or Fan 2 Vent is set to On and Test
Mode is manual.
After the last item, the control returns to the first item in the menu.
TES
T MENU
