tekmar 546 Thermostat Installation - Manual (Page 16)

© 2008 D 546 - 07/08 16 of 44
Item Field Range Access Description
NONE, ZONE,
MST1, MST2,
MST3, MST4,
MBR1, MBR2,
MBR3, MBR4
Default = NONE
USER
INST
ADV
HEAT SCHEDULE SECTION L
If a schedule is not required, select NONE.
If the schedule is only used by this thermostat, select
ZONE.
If the schedule is shared with other thermostats,
select MST1 to MST4.
If the schedule is set on another thermostat, select
MBR1 to MBR4.
Note: MST1 to MST4 is only available if the COOL
Schedule is set to NONE, ZONE or a MBR #.
This item can be viewed in the USER and INST
access levels but can only be adjusted in the ADV
access level.
NONE, ZONE,
MST1, MST2,
MST3, MST4,
MBR1, MBR2,
MBR3, MBR4
Default = NONE
USER
INST
ADV
COOL SCHEDULE SECTION L
If a schedule is not required, select NONE.
If the schedule is only used by this thermostat, select
ZONE.
If the schedule is shared with other thermostats,
select MST1 to MST4.
If the schedule is set on another thermostat, select
MBR1 to MBR4.
Note: MST1 to MST4 is only available if the HEAT
Schedule is set to NONE, ZONE or a MBR #.
This item can be viewed in the USER and INST
access levels but can only be adjusted in the ADV
access level.
24 hr, 5-2,
5-11, 7dAY
Default = 5-11
USER
INST
ADV
SCHEDULE TYPE SECTION L
Select the type of schedule.
Note: This item is only available when the Heat or
Cool Schedule are set to ZONE or MST1 to MST4.
2 (Occ, UnOcc),
4 (Wake, UnOcc,
Occ, Sleep)
Default = 4
USER
INST
ADV
SCHEDULE MODE SECTION L
Select the number of events per day.
Note: This item is only available when the Heat or Cool
Schedules are set to ZONE or MST1 to MST4.

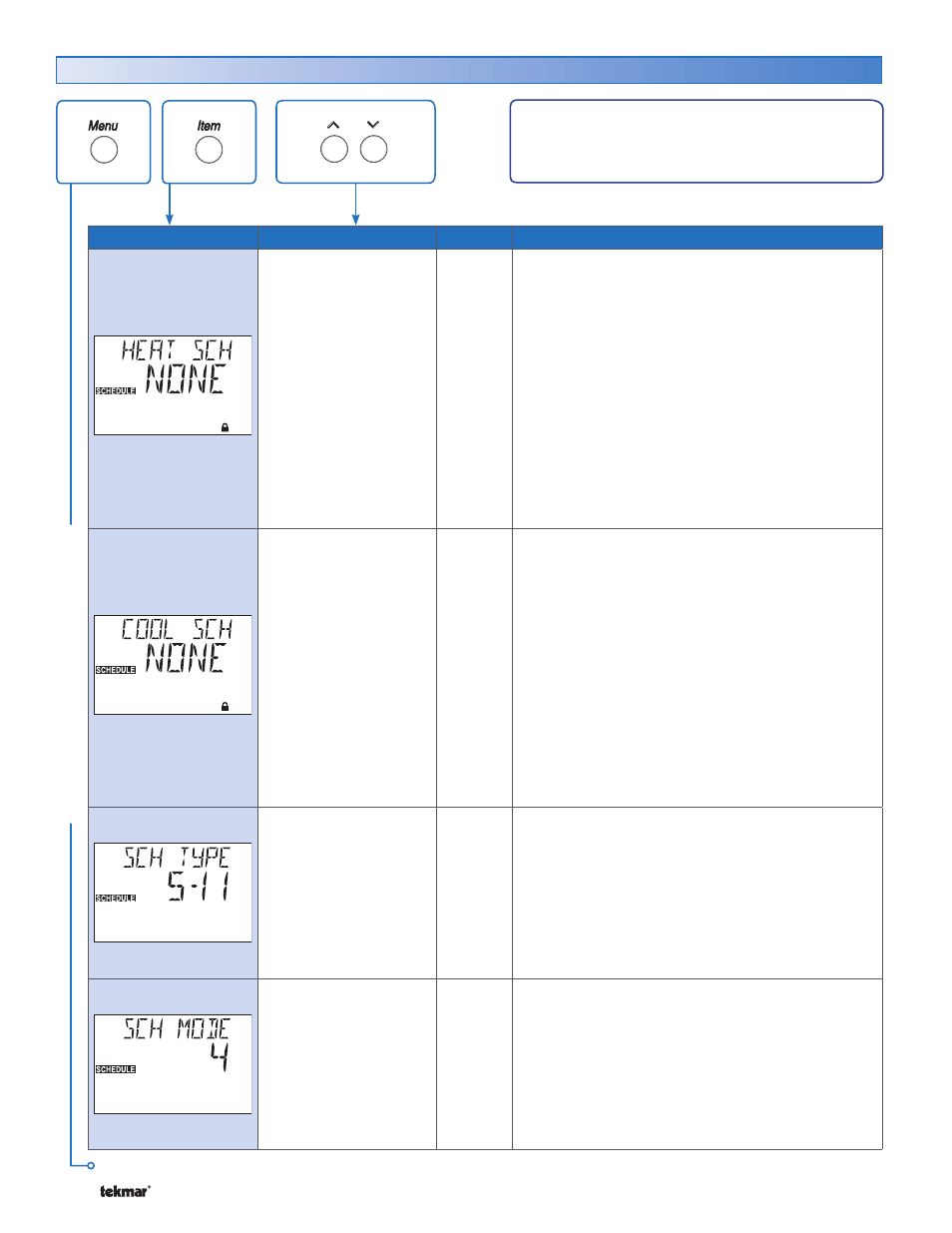

Schedule Menu (1 of 4)
The Schedule menu items set the schedule type, the
number of events per day, and the event times.
Continued on next page.
SC
HEDULE MENU
