19 of 44 © 2008 D 546 - 07/08
Item Field Range Access Description
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV

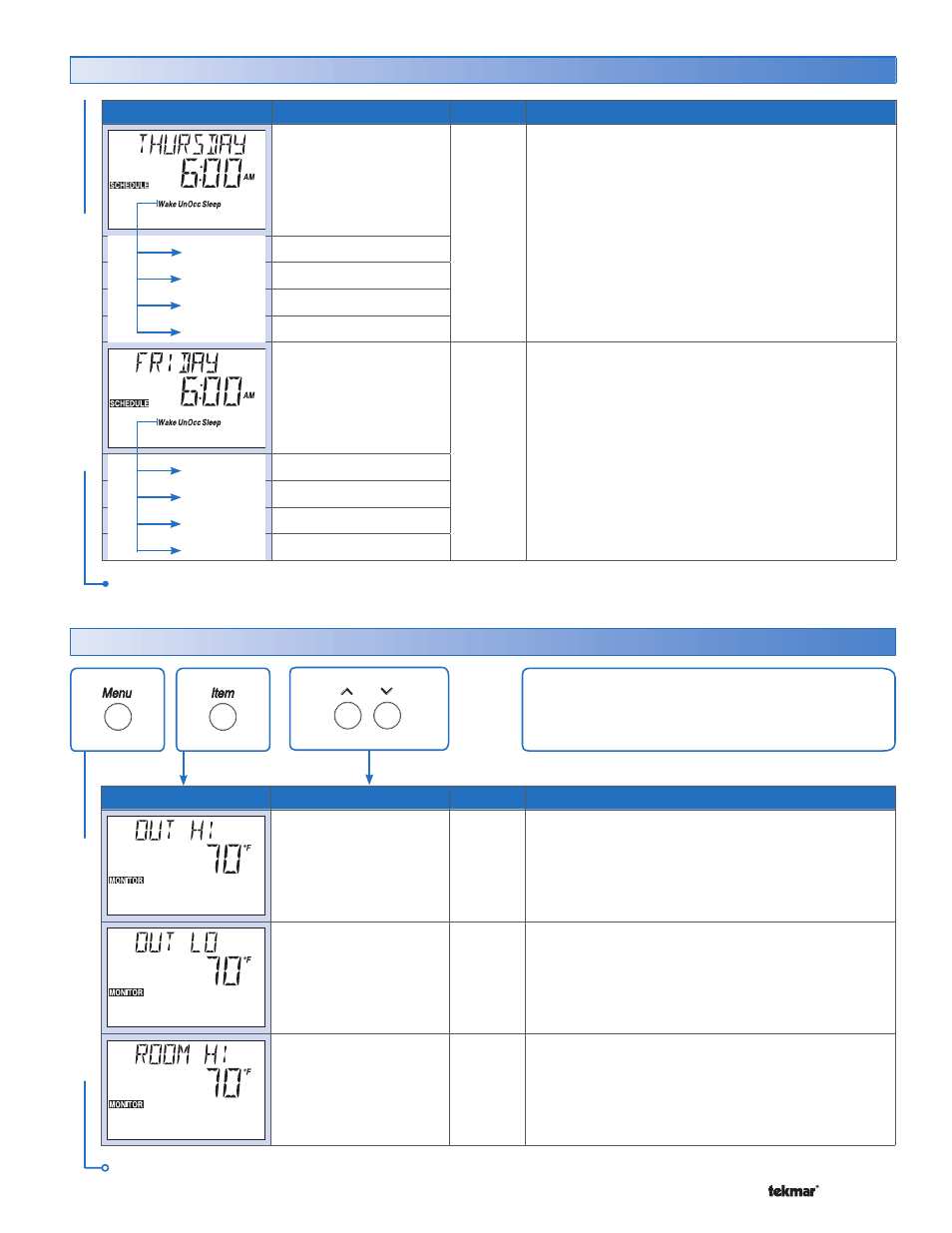

THURSDAY SECTION L
Select the times for the scheduled events.
Note: This item is only available when the Schedule
Type is set to 7dAY.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
– –:– – to 11:50 PM
or
– –:– – to 23:50
USER
INST
ADV
FRIDAY SECTION L
Select the times for the scheduled events.
Note: This item is only available when the Schedule
Type is set to 7dAY.
Wake Default = 6:00 AM
UnOccupied Default = 8:00 AM
Occupied Default = 6:00 PM
Sleep Default = 10:00 PM
Schedule Menu (4 of 4)
After the last item, the control returns to the first item in the menu.
SC
HEDULE MENU
Item Field Range Access Description
-76 to 149°F
(-60.0 to 65.0°C)
LTD
USER
INST
ADV
OUTDOOR HIGH SECTION A
Records the highest outdoor temperature. Press Up
and Down buttons to clear.
Note: This item is only available when an outdoor
sensor is connected to the tN4 network.
-76 to 149°F
(-60.0 to 65.0°C)
LTD
USER
INST
ADV
OUTDOOR LOW SECTION A
Records the lowest outdoor temperature. Press Up
and Down buttons to clear.
Note: This item is only available when an outdoor
sensor is connected to the tN4 network.
-22 to 266°F
(-30.0 to 130.0°C)
USER
INST
ADV
ROOM HIGH SECTION A
Records the highest room temperature. Press Up
and Down buttons to clear.
Note: This item is only available when there is at
least one active room sensor.
Monitor Menu (1 of 2)
The Monitor menu items record the high and low
temperatures and the number of running hours of
mechanical equipment.
Continued on next page.
MONIT
OR MENU
