tekmar 406 House Control Installation - Manual (Page 3)

3 of 48 © 2012 406_D - 11/12
Power Required ---------------------------------------------------------------------------------------- ----------------------------------------------------------------------------------------
115 V (ac), 1-phase, 15 A service from circuit breaker panel
(potentially up to two circuits) • Power disconnect (optional) •
Installation Location
When choosing the location for the control, consider the
following:
Keep dry. Avoid potential leakage onto the control.
RH 90% to 104°F (40°C).
Non-condensing environment.
Do not expose to operating temperatures beyond 32-104°F
(0-40°C)
Provide adequate ventilation.
Keep away from equipment, appliances or other sources of
electrical interference.
Locate the control near pumps and/or zone valves if possible. •
•
•
•
•
•
Provide easy access for wiring, viewing and adjusting the
control.
Mount approximately 5 ft. (1.5 m) off the finished floor.
Install the electrical junction box to a wall using #10 x
1” wood screws. Wall anchors are recommended when
mounting to sheet rock wallboard or masonry.
Install the extension ring onto the electrical junction box.
Total box volume must be 38 cubic inches (623 cm
3 ) or
greater to comply with National Electrical Code (NEC) or
Canadian Electrical Code (CEC).
•
•
•
•
Rough-In Wiring
Line Voltage Wiring ------------------------------------------------------------------------------------ ------------------------------------------------------------------------------------
The control operates a number of pumps through wiring on
the back of the control. The control must be mounted to a 4” x
4” electrical junction box so that these electrical connections
are safely contained.
For ease of service, the circuit breaker or power discon-
nect should be located in reasonably close proximity to the
equipment.
All line voltage wire connections are recommended to be pulled
inside a flexible or solid conduit. Always follow proper wiring
practices, building and electrical codes for your jurisdiction.
Each cable must be pulled from the equipment to the electrical
junction box. It is recommended to label each cable for easy
identification. All line voltage wires should be stripped to a
length of 1/2” (13 mm).

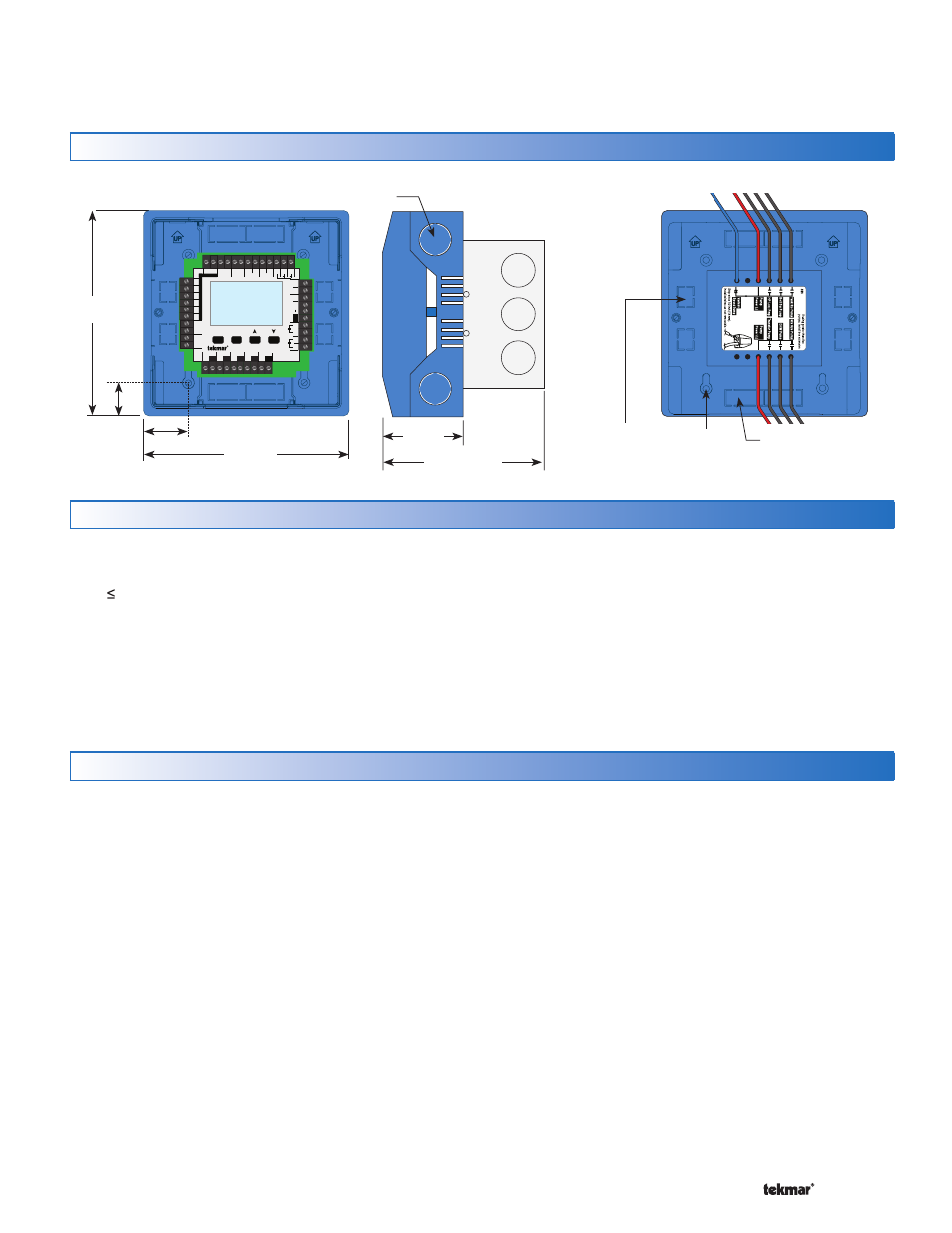

Physical Dimensions
Front View Side View
Menu
House Control 406
Item
+
Ta nk
C om
Boil
H PR
t
Out
Com
Zone 1
H8009B
Zone 2 Zone 3 Zone 4
tN2 tN2 tN2 tN2 tN2 tN2 tN2 tN2 Rc1 Y1 O/B
Sensors - No P
ow
er
No Power
Call
Call
Mix/DHW
tN4
tN4
CC
Mod dc/mA
Boil / Mix
Tank
Rc2
Y2
Se tpoint
DHW
R C
Input Power
Backup
Vlv C Vlv C Vlv C
Zone 3 Zone 1 Zone 2 Zone 4
Vlv C
5–1/2”
(140 mm)
5–1/2”
(140 mm)
1–1/8” (30 mm)
7/8”
(22 mm)
CL
Control designed to mount on 4” x 4” electrical
box (not included). For systems that require 2
power sources of 115 V (ac), a box extension
ring is required to increase box fill capacity.
Back View
Ø 1/8”
(3 mm)
7/8” x 1/2” (23 mm x 12 mm)
Knock-out (x 4)
1/2” x 5/8”
(12 mm x 16 mm)
Knock-out (x 4)
1/2” Knock-out (x 4)
2–1/4”
(57 mm)
4–1/2” (114 mm)
Pull a three conductor 14 AWG cable for the following
equipment:
Circuit Breaker or Power Disconnect
Variable Speed Pump (if applicable)
HP Loop Pump
Boiler System Pump (if applicable)
Tank System Pump (if applicable)
Mix System Pump (if applicable)
DHW Pump (if applicable)
Transfer (Xfr) Pump (if applicable) •
•
•
•
•
•
•
•
Low Voltage Wiring ------------------------------------------------------------------------------------- -------------------------------------------------------------------------------------
Each cable must be pulled from the equipment to the control’s
plastic enclosure. All low voltage wiring connections enter the
enclosure through conduit knockouts on the sides, or through
the square knockouts on the rear. It is recommended to label each cable for easy identification. All low voltage wires are
to be stripped to a length of 3/8” (9 mm) to ensure proper
connection to the control.
