tekmar 374 Universal Reset Control - Manual (Page 27)

27 of 36 © 2009 D 374 - 03/09

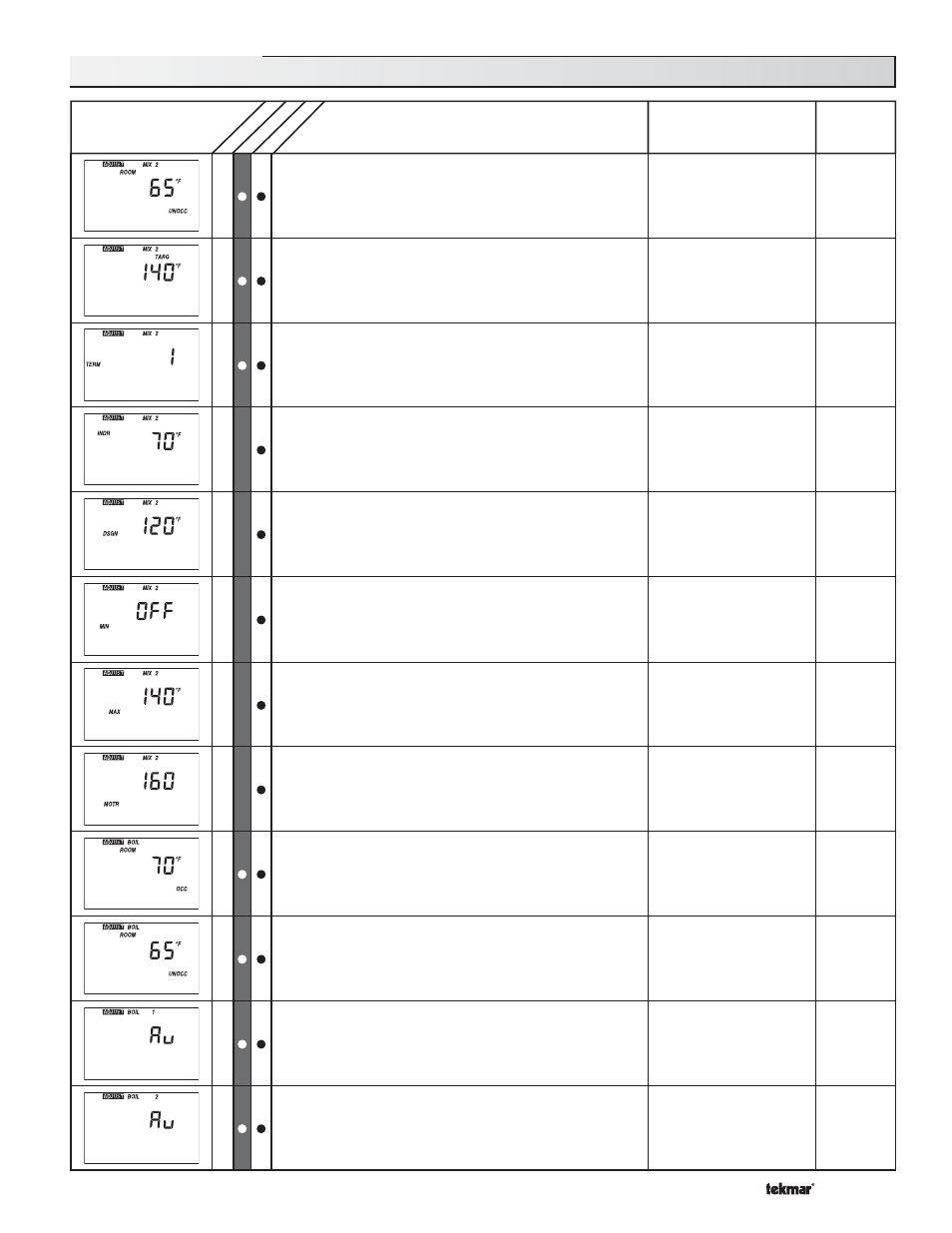

Adjust Menu (2 of 4)
E1
Mix 2 Room Unoccupied The desired room air temperature
during the unoccupied period for mix 2 zones. This item is
only available when the
Setback / Off DIP switch is set to
Setback and when Mix 2 Mode is set to 1.
35 to 100°F
(2 to 38°C)
Default = 65°F (18°C)
E1
Mix 2 Target The mix 2 setpoint temperature. This item
is only available when Mix 2 Mode is set to 2.
60 to 200°F
(16 to 93°C)
Default = 140°F (60°C)
A
Mix 2 Terminal Unit The type of terminal units that are
being used in mix 2 zones. This item is only available
when Mix 2 Mode is set to 1.
1 (HRF1), 2 (HRF2),
3 (COIL), 4 (CONV),
5 (RAD), 6 (BASE)
Default = 1
E1
Mix 2 Indoor The design indoor air temperature used
in the heat loss calculation for mix 2 zones. This item is
only available when Mix 2 Mode is set to 1. 35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
E1
Mix 2 Design The design supply water temperature
used in the heat loss calculations for mix 2 zones. This
item is only available when Mix 2 Mode is set to 1.
70 to 220°F
(21 to 104°C)
E1
Mix 2 Minimum The minimum allowed mix 2 target
temperature. This item is only available when Mix 2
Mode is set to 1.
OFF, 35 to 150°F
(OFF, 2 to 66°C)
E1
Mix 2 Maximum The maximum allowed mix 2 target
temperature. This item is only available when Mix 2
Mode is set to 1.
80 to 220°F
(27 to 104°C)
E1
Mix 2 Motor The time that the actuating motor requires
to operate from fully closed to fully open. This item is
only available when the
Floating / Variable DIP switch is
set to Floating and Mix 2 Mode is set to 1 or 2.
30 to 230 seconds
Default = 160 seconds
B1
Boiler Room Occupied The desired room air
temperature during the occupied period for boiler zones.
This item is only available when the
Boiler Sensor
Return / Supply DIP switch is set to Supply.
35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
B1
Boiler Room Unoccupied The desired room air
temperature during the unoccupied period for boiler
zones. This item is only available when the
Boiler
Sensor Return / Supply DIP switch is set to Supply and
when the Setback / Off DIP switch is set to Setback.
35 to 100°F
(2 to 38°C)
Default = 65°F (18°C)
B1
Boiler 1 Selects whether or not boiler 1 is operational.
This item is only available when the
Boiler Sensor
Return / Supply DIP switch is set to Supply.
Au (automatic), OFF
Default = Au
B1
Boiler 2 Selects whether or not boiler 2 is operational.
This item is only available when the
Boiler Sensor
Return / Supply DIP switch is set to Supply.
Au (automatic), OFF
Default = Au
Display Description Range
Section Installer Ad
v
Actual
Setting
