tekmar 374 Universal Reset Control - Manual (Page 26)

© 2009 D 374 - 03/09 26 of 36

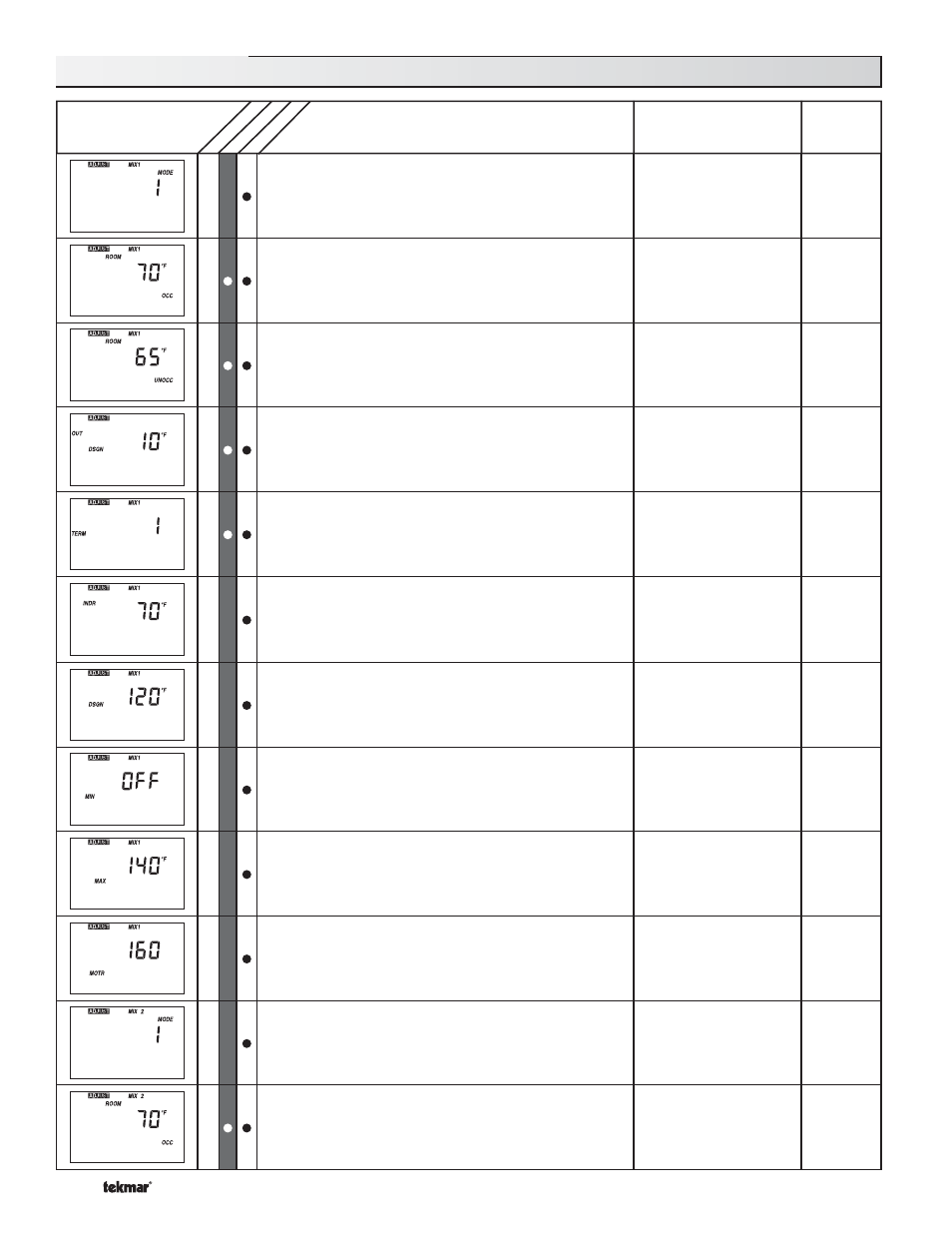

Adjust Menu (1 of 4)
E1
Mix 1 Mode Selects the mode of operation for mixing
device 1.
0 (off)
1 (reset)
Default = 1
E1
Mix 1 Room Occupied The desired room air temperature
during the occupied period for mix 1 zones. This item is
only available when Mix 1 Mode is set to 1. 35 to 100°F
(2 to 38°C)
Default = 70°F (21°C)
E1
Mix 1 Room Unoccupied The desired room air temperature
during the unoccupied period for mix 1 zones. This item is
only available when the
Setback / Off DIP switch is set to
Setback and when Mix 1 Mode is set to 1.
35 to 100°F
(2 to 38°C, OFF)
Default = 65°F (18°C)
A
Outdoor Design The design outdoor air temperature
used in the heat loss calculations for the heating system.
This item is only available when Mix 1 Mode is set to 1,
Mix 2 Mode is set to 1 or the Boiler sensor Return / Supply
DIP switch is set to Supply
-60 to 32°F
(-51 to 0°C)
Default = 10°F (-12°C)
A
Mix 1 Terminal Unit The type of terminal units that are
being used in mix 1 zones. This item is only available
when Mix 1 Mode is set to 1.
1 (HRF1), 2 (HRF2),
3 (COIL), 4 (CONV),
5 (RAD), 6 (BASE)
Default = 1
E1
Mix 1 Indoor The design indoor air temperature used in
the heat loss calculation for mix 1 zones. This item is only
available when Mix 1 Mode is set to 1. 35 to 100°F
(2 to 38°C, OFF)
Default = 70°F (21°C)
E1
Mix 1 Design The design supply water temperature used
in the heat loss calculations for mix 1 zones. This item is
only available when Mix 1 Mode is set to 1.
70 to 220°F
(21 to 104°C, OFF)
E1
Mix 1 Minimum The minimum allowed mix 1 target
temperature. This item is only available when Mix 1 Mode
is set to 1.
OFF, 35 to 150°F
(OFF, 2 to 66°C)
E1
Mix 1 Maximum The maximum allowed mix 1 target
temperature. This item is only available when Mix 1 Mode
is set to 1.
80 to 220°F
(27 to 104°C)
E1
Mix 1 Motor The time that the actuating motor requires to
operate from fully closed to fully open. This item is only
available when the
Floating / Variable DIP switch is set to
Floating and Mix 1 Mode is set to 1.
30 to 230 seconds
Default = 160 seconds
E1
Mix 2 Mode Selects the mode of operation for mixing
device 2.
0 (off)
1 (reset)
2 (setpoint)
Default = 1
E1
Mix 2 Room Occupied The desired room air temperature
during the occupied period for mix 2 zones. This item is
only available when Mix 2 Mode is set to 1. 35 to 100°F
(2 to 38°C, OFF)
Default = 70°F (21°C)
Display Description Range
Section Installer Ad
v
Actual
Setting
