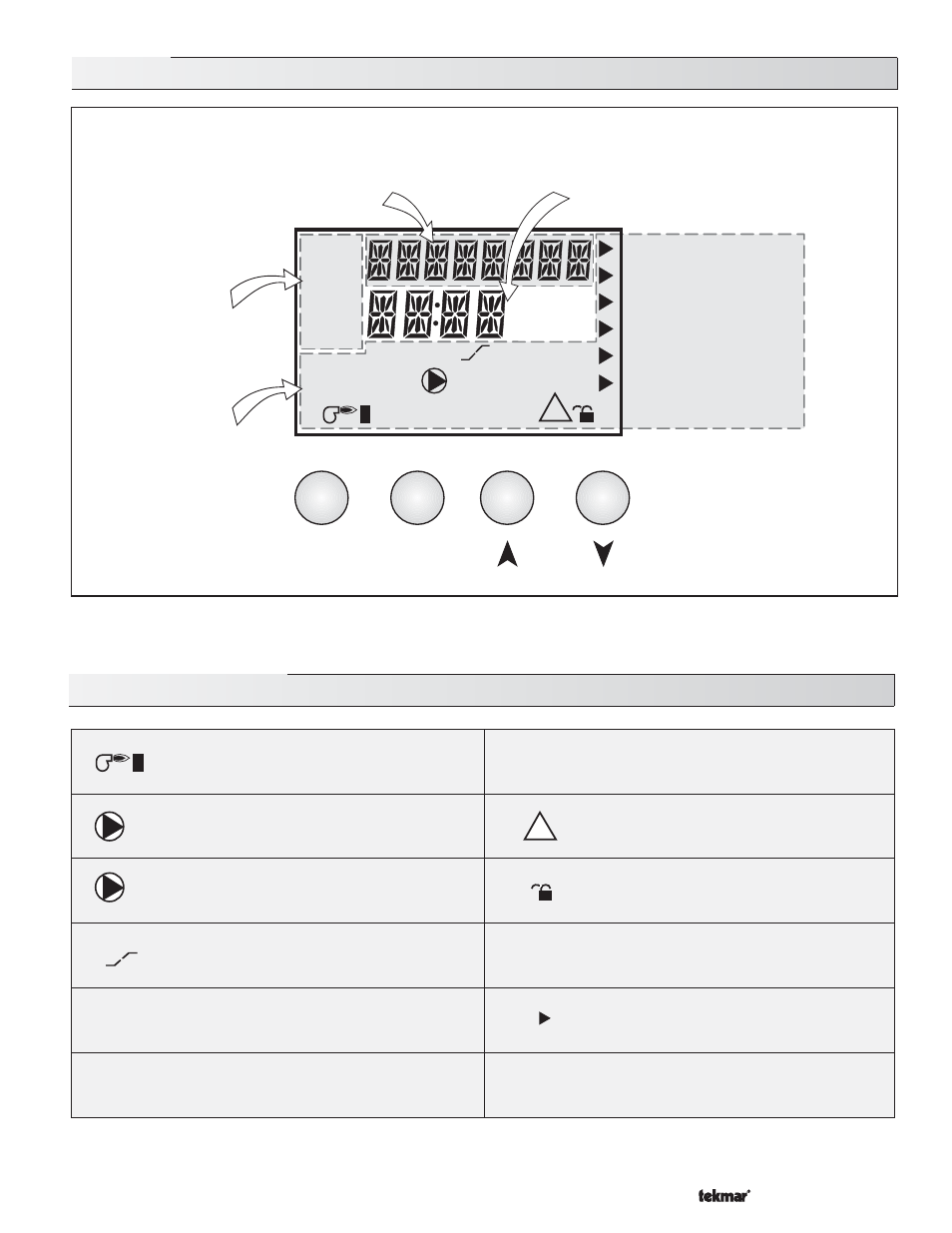

Symbol Description
Display
Boiler Demand
DHW Demand
Setpoint Demand
WWSD
Minimum
Maximum
Menu Item
Number Field
Displays the current value
of the selected item
{
Buttons
Selects Menus, Items and
adjusts settings
Misc
° F°C
Ovr
View
Adjust
Schd
hr
Monitor
Menu Field
Displays the
current menu
Status Field
Displays the current
status of the control’s
inputs, outputs and
operation
Item Field
Displays an abbreviated
name of the selected item
UnOcc
!
min
sec
DHW
1 2
1
!
DHW
Burner
Displays when the stage 1 and / or stage 2
relay is turned on.
Pump
Displays when the boiler pump is operating.
DHW Pump
Displays when the DHW pump is on.
Warning
Displays when an error exists or when a limit
has been reached.
Lock - Unlock
Displays whether the access levels are locked
or unlocked.
Boost
Displays when the control is in boost after
setback.
Occ
Occupied Schedule
Displays when the control is in occupied mode.
1
Ovr
Override
Displays when the control is in override mode.
° F, °C, sec,
min, hr
°F, °C, sec, min, hr
Units of measurement.
UnOcc
UnOccupied Schedule
Displays when the control is in unoccupied
mode.
Pointer
Displays the control operation as indicated by
the text.
1 2
