Powers ES150 Emergency Tempering Valves with Dual Internal Cold Water By-Pass User Manual
Page 4
TI ES150 v3 Page 4

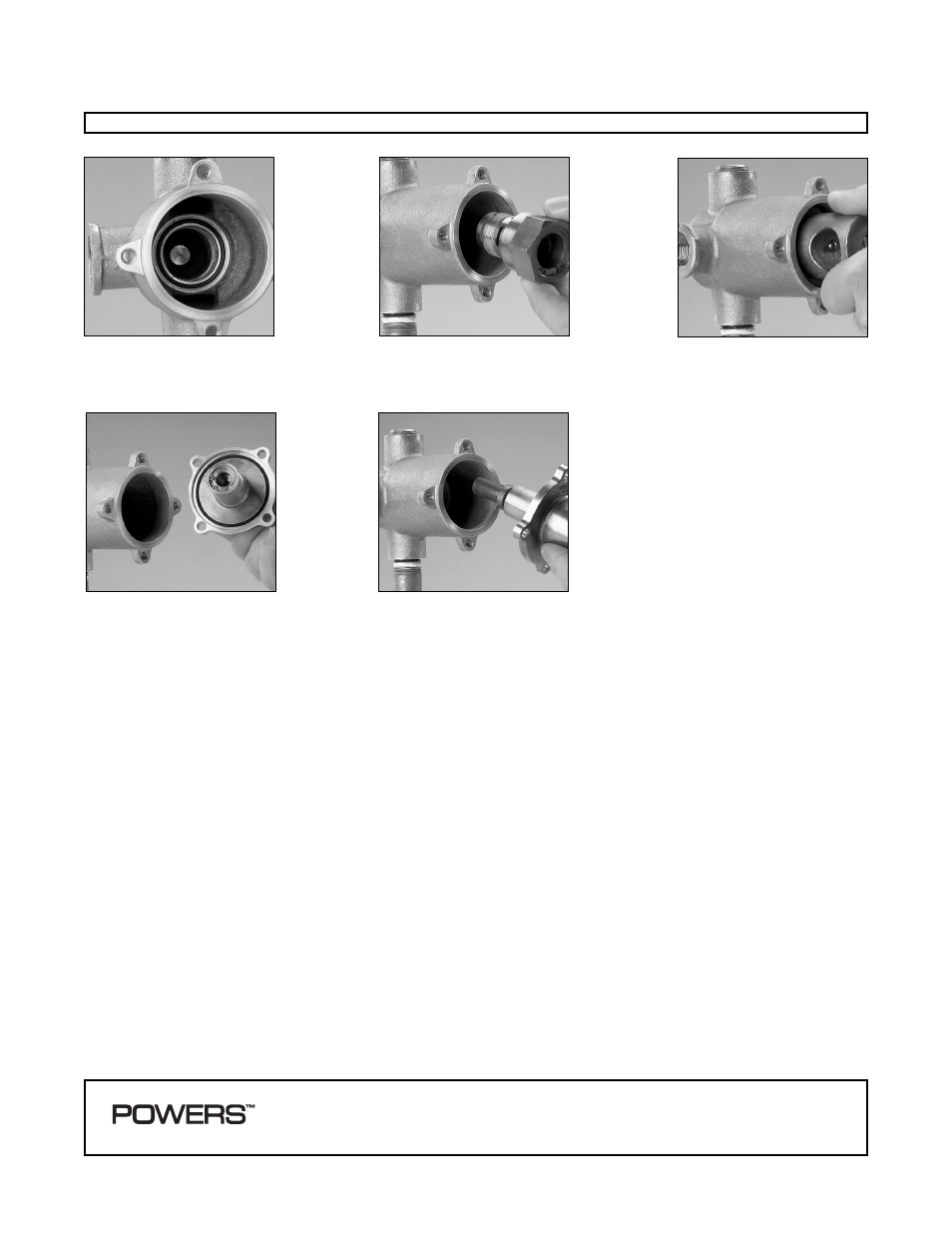

Lubricate cartridge “O” ring and
place in groove in back of the body.
Thread the cartridge into the body.
Hand tighten with 1-3/8” deep
socket until snug.
Do not overtighten.
Lubricate the bonnet “O” ring, and
place in groove or bonnet.
CAUTION: If the overload assembly
has been removed from the bonnet
ensure that high temperature limit
stop with set screw is in place
before assembling the valve.
Place actuator into overload assem-
bly and install bonnet onto valve
with four (4) screws.
Adjust and test per instructions on
page 3.
REASSEMBLY
