TI430 v3 Page 2

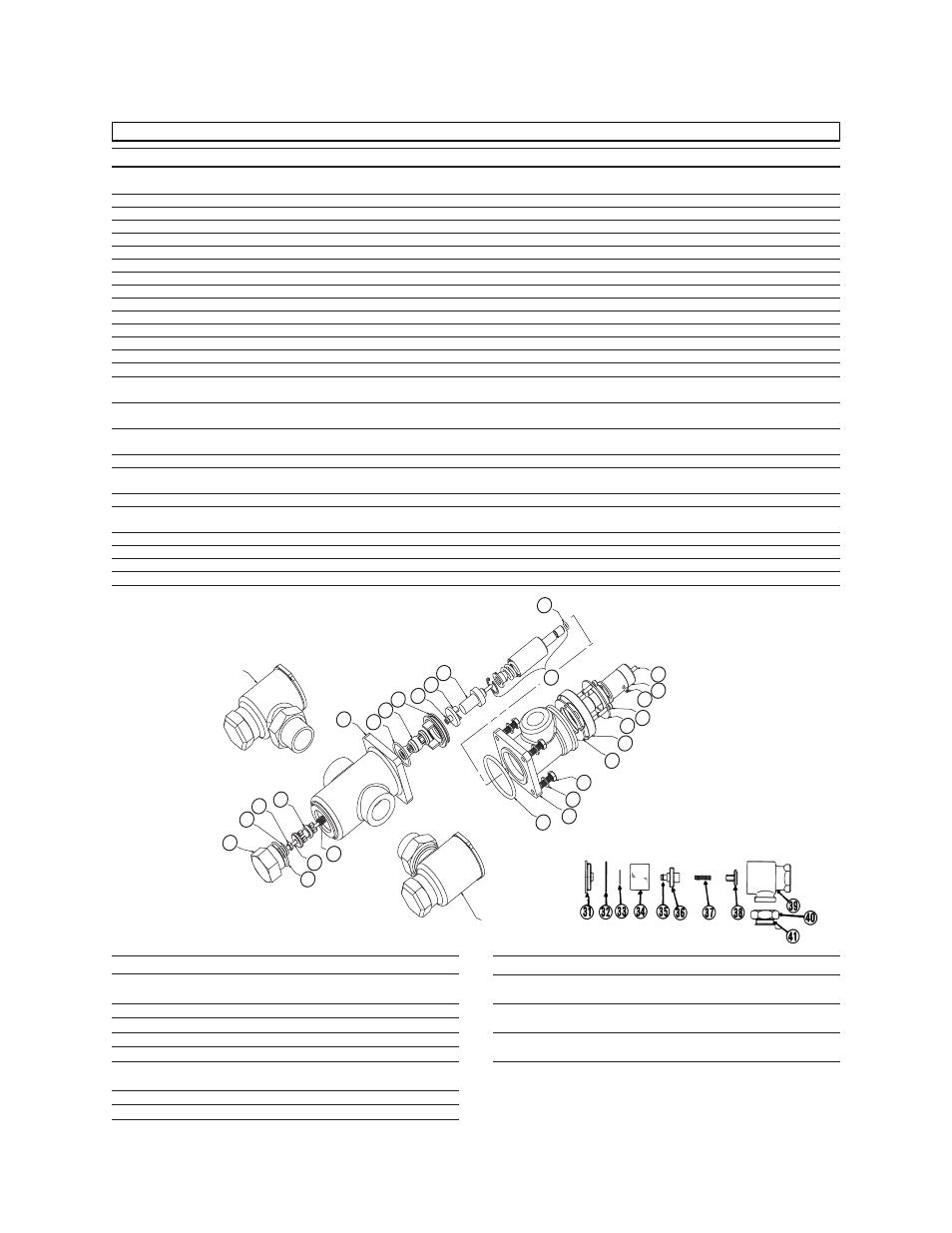

NO. NAME FINISH 431 432 433 434
1 Body Cap Rough Bronze 390-334 390-334 390-336 390-336
Polished Chrome 390-335 390-335 390-337 390-337
2 “O” Ring N/A 084-020 084-020 047-132 047-132
3 Return Spring N/A 390-155 390-155 390-162 390-162
4 Nut U s e M i x i n g V a l v e R e p a i r K i t
5 Cold Water Poppet U s e M i x i n g V a l v e R e p a i r K i t
6 Cold Water Stem U s e M i x i n g V a l v e R e p a i r K i t
7 Motor Failure Spring N/A 390-248 390-048 390-201 390-092
8 Lower Body N/A N/A N/A
9 “O” Ring N/A 047-035 047-036 047-040 047-047
10 Hot Water Poppet U s e M i x i n g V a l v e R e p a i r K i t
11 Overload Assembly N/A N/A N/A
12 Thermal Actuator U s e T h e r m a l A c t u a t o r R e p a i r K i t
13 “O” Ring N/A 047-022 047-020 047-020 047-020
14 Motor Housing N/A N/A N/A N/A N/A
15 Gasket N/A 390-243 390-051 390-198 390-095
16 Motor Housing Cap Rough Bronze 390-225 390-144 390-178 390-156
Polished Chrome 390-226 390-145 390-179 390-157
17 Adjustment Knob Retainer Rough Bronze 390-254 390-256 390-258 390-256
Polished Chrome 390-255 390-257 390-259 390-257
18 Adjustment Knob Rough Bronze 390-340 390-342 390-342 390-342
Polished Chrome 390-341 390-169 390-169 390-169
19 Set Screw Kit N/A 430-017 430-016 430-016 430-016
20 Screw Rough Bronze 030-068 030-068 030-109 030-061
Polished Chrome 030-068G 030-068G 030-109G 030-061G
21 Set Screw N/A 430-020 390-166A 390-166A 390-166A
22 Bolts Rough Bronze 080-015 080-015 080-015 080-015
Polished Chrome 080-015 080-015 080-015 080-015
23 Funnel 390-006 390-009 390-503 390-506
24 Funnel “O” Ring 800-064 084-041 084-043 084-042
25 “O”Ring 047-002 047-020 084-029 084-014
26 Adapter 390-001 390-010 390-504 390-505
NO. NAME FINISH 431/432 433/434
31 Bonnet* Rough Bronze 230-267 230-287
Polished Chrome 230-268 230-288
32 “O” Ring n/a 047-029 047-130
33 Gasket n/a 230-083 230-083
34 Screen n/a 230-116 230-104
35 “O” Ring n/a 047-009 047-009
36 Stem Rough Bronze 230-269 230-289
Polished Chrome 230-270 230-290
37 Spring n/a 230-127 230-103
38 Poppet Assembly n/a 230-271 230-293
NO. NAME FINISH 431/432 433/434
39 Body Rough Bronze n/a n/a
Polished Chrome n/a n/a
40 Nut Rough Bronze 230-117 230-096
Polished Chrome 230-118** 230-097**
41 Tail Piece Rough Bronze 230-119 230-094
Polished Chrome 230-120** 230-095**
* If Replacing either bonnet or stem on old style checks, you must replace both with new parts.
Do not use the new bonnet with an old stem, or vice versa.
** Available as complete body, nut and tail piece assembly only.
13
12
26
25 23
10
24 8
5
4
3
1
2
6
7
11 21
18
19
20
17
16
15
22
22
14
9
CHECKSTOP
CHECKSTOP
PARTS LIST
CHECKSTOP SECTION
