Powers 1430 Series HiLo Master Mixing Valve - Manual (Page 2)

TI 1430 HiLo Page 2
CHECKSTOP
CHECKSTOP
7
5 6
2
1
10
8
17
11 12
18
9
23
24
25
26
27
28
29
30
13
19
21
20
16
15
14
22
3
4

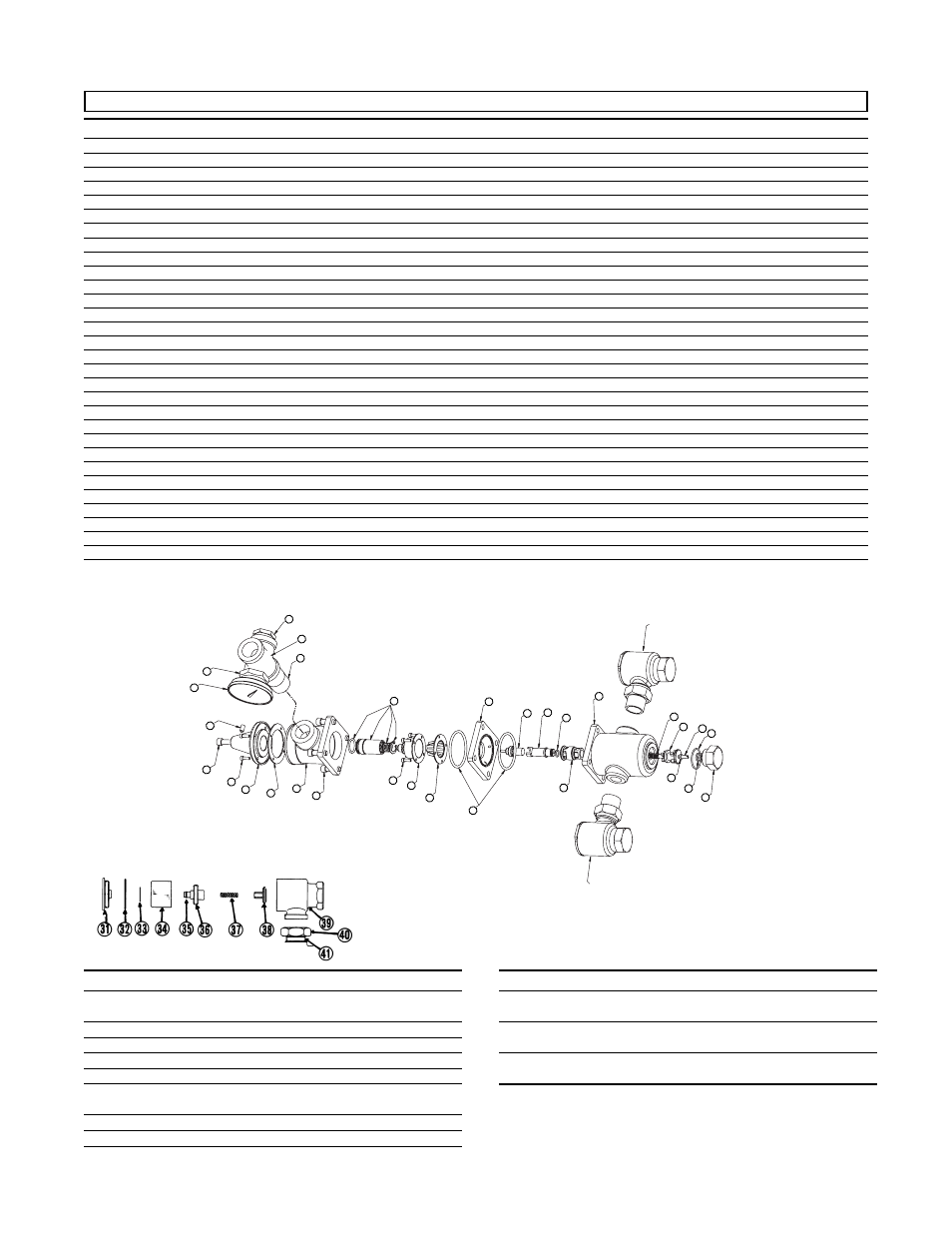

PARTS LIST
NO. NAME 1432 BRONZE 1432 POLISHED CHROME 1434 BRONZE 1434 POLISHED CHROME
1 Body Cap 390-334 390-335 390-336 390-336
2 “O” Ring 084-020 084-020 047-132 047-132
3 Return Spring 390-068 Kit 390-068 Kit 390-070 Kit 390-070 Kit
4 Nut 390-068 Kit 390-068 Kit 390-070 Kit 390-070 Kit
5 Cold Water Poppet 390-068 Kit 390-068 Kit 390-070 Kit 390-070 Kit
6 Cold Water Stem 390-068 Kit 390-068 Kit 390-070 Kit 390-070 Kit
7 Motor Failure Spring 390-068 Kit 390-068 Kit 390-070 Kit 390-070 Kit
8 Lower Body n/a n/a n/a n/a
9 “O” Ring 047-036 047-036 047-047 047-047
10 Hot Water Poppet 390-068 Kit 390-068 Kit 390-070 Kit 390-070 Kit
11 Motor Adapter 390-024 390-024 390-521 390-521
12 Thermal Motor 390-500 Kit 390-500 Kit 390-543 Kit 390-543 Kit
13 Dial Thermometer 894-3709 894-3709 894-3709 894-3709
14 Motor Housing n/a n/a n/a n/a
15 Motor Housing Gasket 390-051 390-051 390-095 390-095
16 Motor Housing Cap n/a n/a n/a n/a
17 “O” Ring 047-020 047-020 084-014 084-014
18 Funnel Cage n/a n/a n/a n/a
19 Set Screw 390-026 390-026 390-026 390-026
20 Screw (4) 390-027 390-027 390-526 390-526
21 Temp. Adjustment Screw 390-028 390-028 390-527 390-527
22 Bolts 390-028 390-028 390-527 390-527
23 Expandable Restrictor 390-500 Kit 390-500 Kit 390-543 Kit 390-543 Kit
24 Retainer n/a n/a n/a n/a
25 Screws (4) 390-064 390-064 390-526 390-526
26 Overload Assy. n/a n/a n/a n/a
27 Pipe/Nipple 390-031 390-058 390-531 390-535
28 Cross 390-033 390-060 390-528 390-532
29 Hex Plug 390-053 390-061 390-530 390-534
30 Hex Bushing 390-056 390-062 390-529 390-533
* Replace both hot and cold water poppets together. Kit contains matched pair to give proper travel.
NO. NAME FINISH 1432 1434
31 Bonnet* Rough Bronze 230-267 230-287
Polished Chrome 230-268 230-288
32 “O” Ring n/a 047-029 047-130
33 Gasket n/a 230-083 230-083
34 Screen n/a 230-116 230-104
35 “O” Ring n/a 047-009 047-009
36 Stem Rough Bronze 230-269 230-289
Polished Chrome 230-270 230-290
37 Spring n/a 230-127 230-103
38 Poppet Assembly n/a 230-271 230-293
NO. NAME FINISH 1432 1434
39 Body Rough Bronze n/a n/a
Polished Chrome n/a n/a
40 Nut Rough Bronze 230-117 230-096
Polished Chrome 230-118** 230-097**
41 Tail Piece Rough Bronze 230-119 230-094
Polished Chrome 230-120** 2300-095**
** Available as complete body, nut and tail piece assembly only.
CHECKSTOP SECTION
