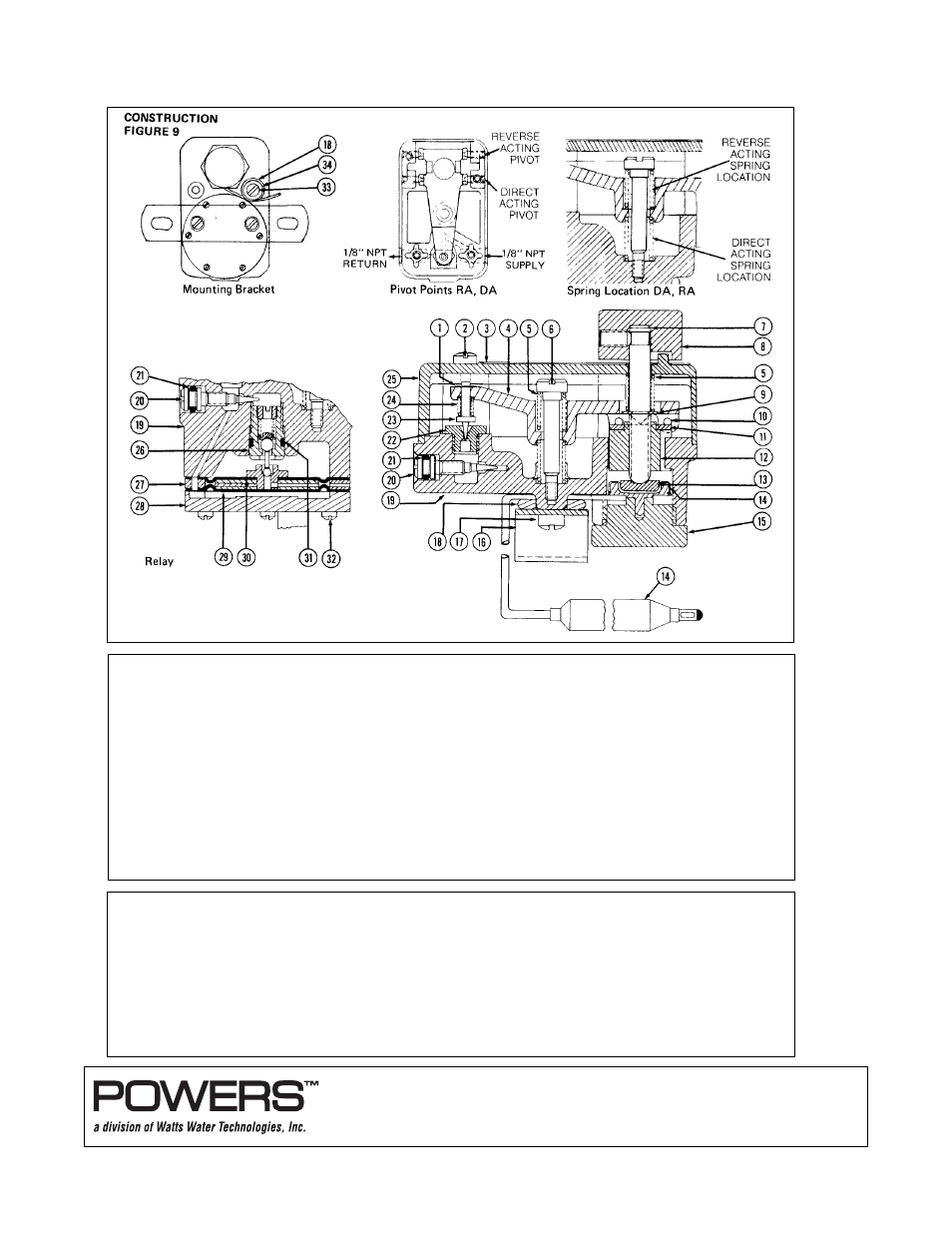

PARTS

Name

Part No. Quantity Material

1.

“C” Washer

100-124

1

2.

Cover Screw

030-064

4

Brass

3.

Nameplate

744-223

1

4.

Lever

744-204

1

Brass

5.

Valve Spring

225-073

2

St. Stl.

6.

Spring Retaining Screw

744-215

1

Brass

7.

Adjustment Stem

744-216

1

Brass

8.

Adjustment Knob with Set Screw

744-234

1

9.

Type “E” Retaining Ring

047-056

1

Berylein Cop.

10.

Lever Pivot Screw

744-154

2

11.

Piston Washer

744-217

1

Steel

12.

Adjustment Piston

744-210

1

Noryl

13.

Power Element Follower

744-212

1

Brass

14.

Sensing Element

744-235

1

Copper

15.

Power Element Cap

744-211

1

Brass

16.

Mounting Bracket Non-Relay

744-221

1

Steel

Relay

744-233

1

17.

Mounting Bracket Screw

030-104

2

Brass

18.

Capillary Tubing Washer

744-219

1

Buna N

19.

Body Non-Relay

744-202

1

Noryl

Relay

744-226 1

20.

Restriction Screw

744-218

1

Brass

21.

“O” Ring

047-049

1

Rubber

22.

Valve Seat

744-213

1

Phos. Brz.

23.

Valve

744-214 1

St.

Stl.

24.

Helical Compression Ring

744-075

1

Phos. Brz.

25.

Cover

744-205 1

Delrin

26.

Supply Valve Assembly

*

1

27.

Diaphragm Spacer

*

1

Noryl

28.

Relay Cover

*

1

Noryl

29.

Diaphragm

*

1

Neoprene

30.

Exhaust Valve & Diaphragm Assembly

*

1

Brass

31.

“O” Ring (

5

/

16

"x

7

/

16

"x

1

/

16

")

*

1

Buna N

32.

Relay Cover Screw

*

6

Brass

33.

Capillary Holder Screw

030-062

1

Brass

34.

Washer

046-108

1

Brass

KITS

Stainless Steal Well

184-119

Copper Well

184-118

Mounting Tube Kit

744-199

Duct Flange

808-517

Basic Accessory Kit No.

744-102

includes 2 of each

1

/

8

" x 1-

1

/

2

" lg. Brass nipple

1

/

8

" Brass Tee

1-

1

/

2

" Pressure Gauge 0-30psi (138 to 207 kPa)

Air Accessory Kit

744-107

includes:
Reducing Valve

1

/

4

" piping plug

1

/

8

" nipple

*Relay Repair Kit

744-260

includes items: 26-32
