Retract installation – E-flite Hawker Sea Fury 400 ARF User Manual
Page 9
9
E-flite Hawker Sea Fury 400 ARF Assembly Manual

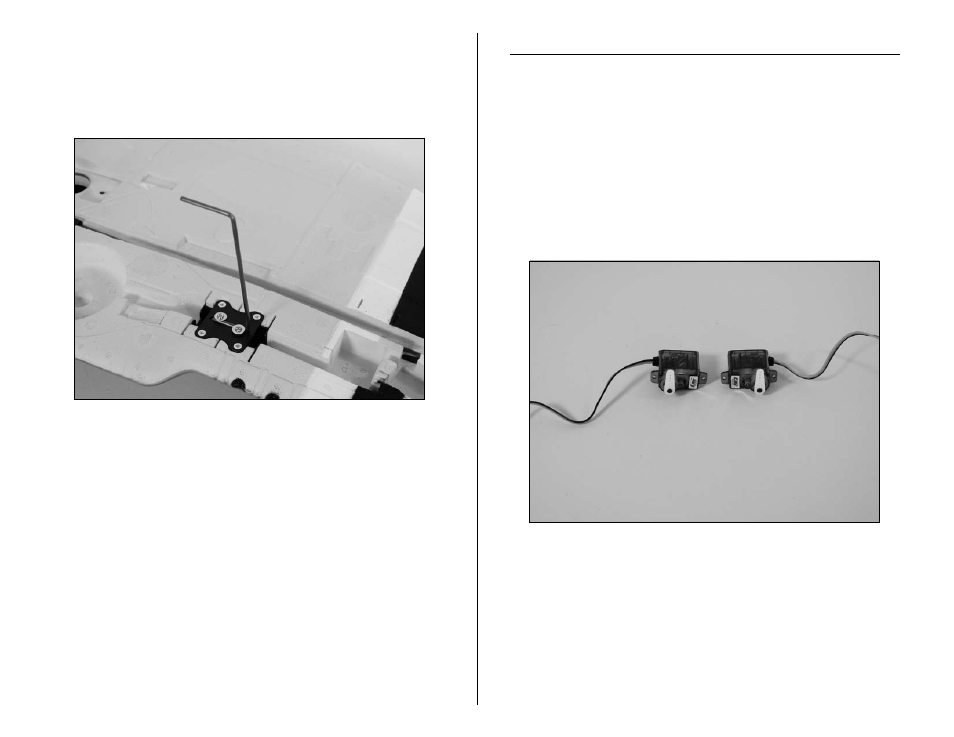

4. Secure the landing gear assembly in the wing using a
#1 Phillips screwdriver and four 3mm x 6mm countersunk
sheet metal screws per assembly. The strut is positioned
toward the wing tip and is angled toward the leading
edge when installed correctly.
Retract Installation
Required Parts
Servo (2)
Retract linkage (2)
Double-sided tape (2 pcs)
Retract assembly (right and left)
3mm x 6mm countersunk sheet metal screw (8)
Required Tools and Adhesives
Phillips screwdriver: #0, #1
Hobby knife
1. Prepare the retract servos by installing the servo arms
on the servos.
Note: The servos are shown with the servo arms
centered. Make sure to position the servo horn so they
travel equally from this center position or your retracts
may not operate correctly.
