11

E-flite Hawker Sea Fury 400 ARF Assembly Manual



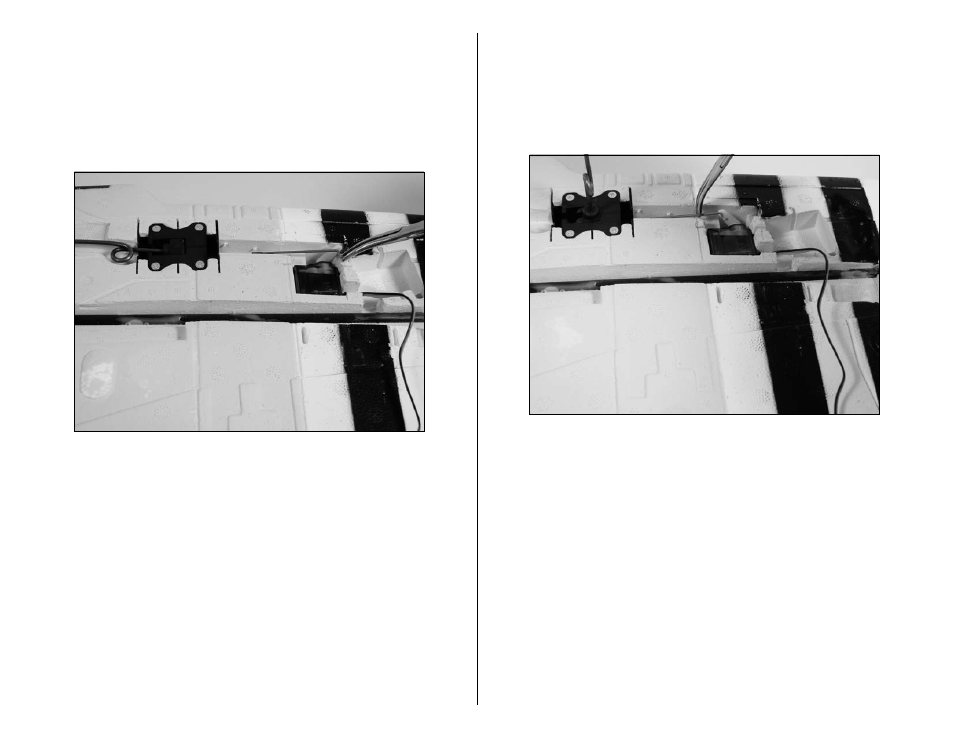

5. Place the retract in the Up position and insert the

retract servo in the pocket.

Do not connect the linkage

to the retract servo at this time. Use the radio to move

the servo arm to the Up position. Hold the linkage to the

arm to make sure the linkage aligns with the servo arm.

Adjust the end point at the radio to align the arm with

the linkage.



6. Place the retract in the down position and use the

radio to move the servo to the down position.

Do not

connect the linkage to the retract servo at this time.

Hold the linkage to the arm to make sure the linkage

aligns with the servo arm. Adjust the end point at the

radio to align the arm with the linkage.
