17 E-flite Hawker Sea Fury 400 ARF Assembly Manual
Motor and Cowling Installation
Required Parts
Motor mount 6-inch (152mm) servo extension
Electronic speed control 1.5mm x 10mm self-tapping screw
Propeller 6-inch (152mm) battery extension
Motor w/accessories Spinner backplate
Spinner cone Spinner washer
3mm x 10mm machine screw (4)
1/8-inch (3mm) spacer (4)
Required Tools and Adhesives
Razor saw Phillips screwdriver: #00, #1

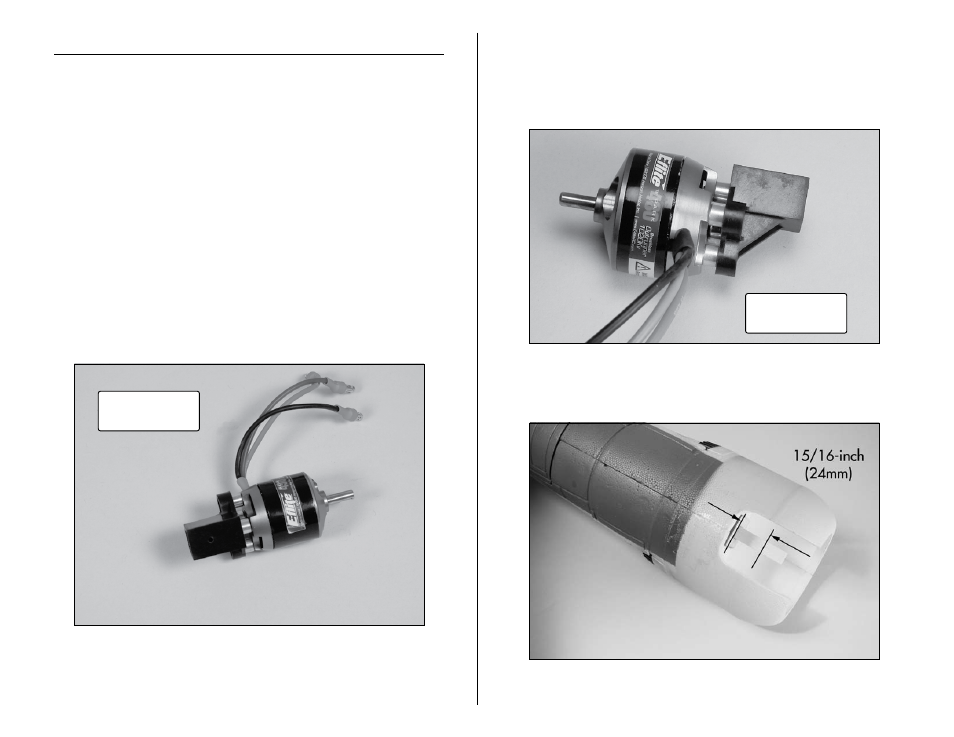

 1. Attach the Park 450 motor to the mount using a
#1 Phillips screwdriver and four 3mm x 10mm machine
screws and the four 1/8-inch (3mm) spacers as shown..
Use threadlock on the screws to prevent the vibrations of
the motor from loosening the screws.
Park 450
Note: When installing the Park 480 motor, use a #1
Phillips screwdriver, four 3mm x 10mm machine screws
and the four 1/8-inch (3mm) spacers as shown. Use
threadlock on the screws to prevent the vibrations of the
motor from loosening the screws.
Park 480
 2. Use a razor saw to cut the length of the motor
mounting stick to 15/16-inch (24mm) as shown below.
