14 E-flite Hawker Sea Fury 400 ARF Assembly Manual

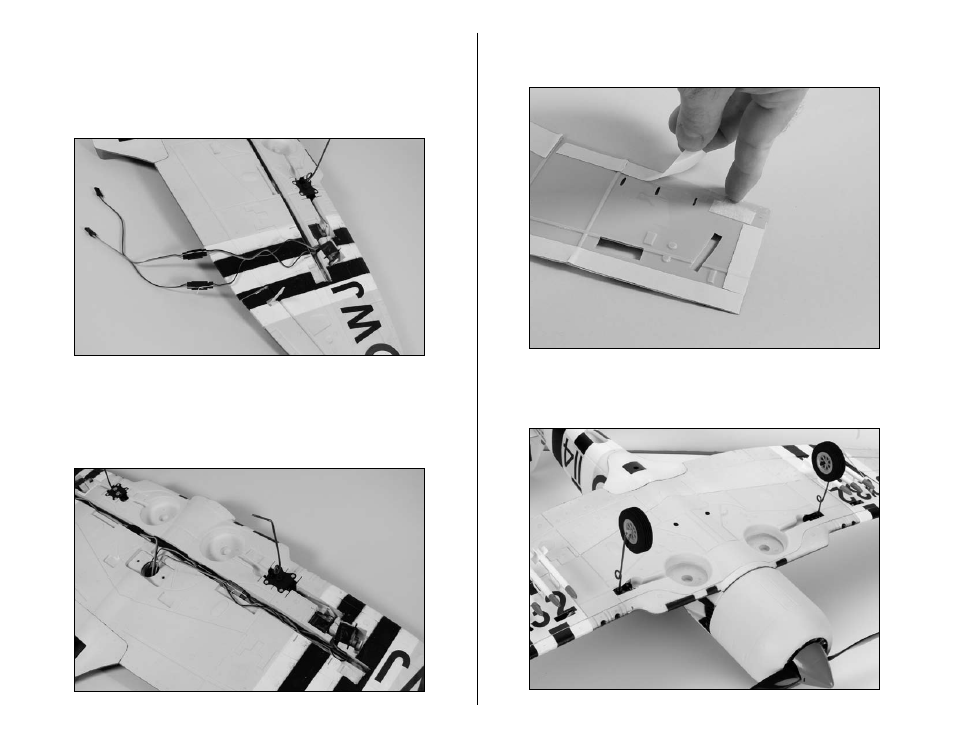

 5. Connect a 6-inch (152mm) extension to each aileron
servo lead. If you have opted to install retracts, attach
a 9-inch (228mm) extension to each retract servo lead.
Use string to secure the extension(s) so they do not
unplug accidentally.
 6. Route the leads for the aileron (and retract) servo(s)
along the channel in the wing. The extension(s) then
pass to the top of the wing through the hole in the
center of the wing.
 7. Remove the backing from the double-sided tape on
the wing cover.
 8. Carefully position the wing cover on the bottom of the
wing. Make sure to align the cover when positioning it.
