E-flite Hawker Sea Fury 400 ARF User Manual
Page 10
10
E-flite Hawker Sea Fury 400 ARF Assembly Manual

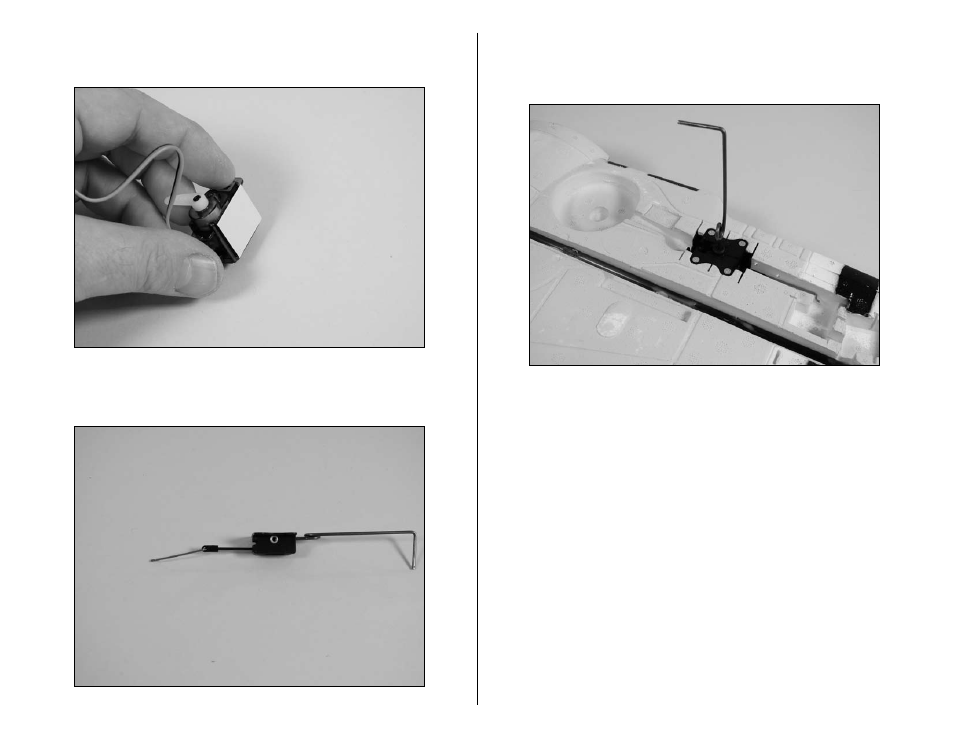

2. Apply a piece of double-sided tape onto each servo,
on the side opposite the servo arm.
3. Connect the retract linkage to the retract
actuator arm.
4. Secure the retract assembly in the wing using a #1
Phillips screwdriver and four 3mm x 6mm countersunk
sheet metal screws per assembly.
