E-flite Hawker Sea Fury 400 ARF Assembly Manual



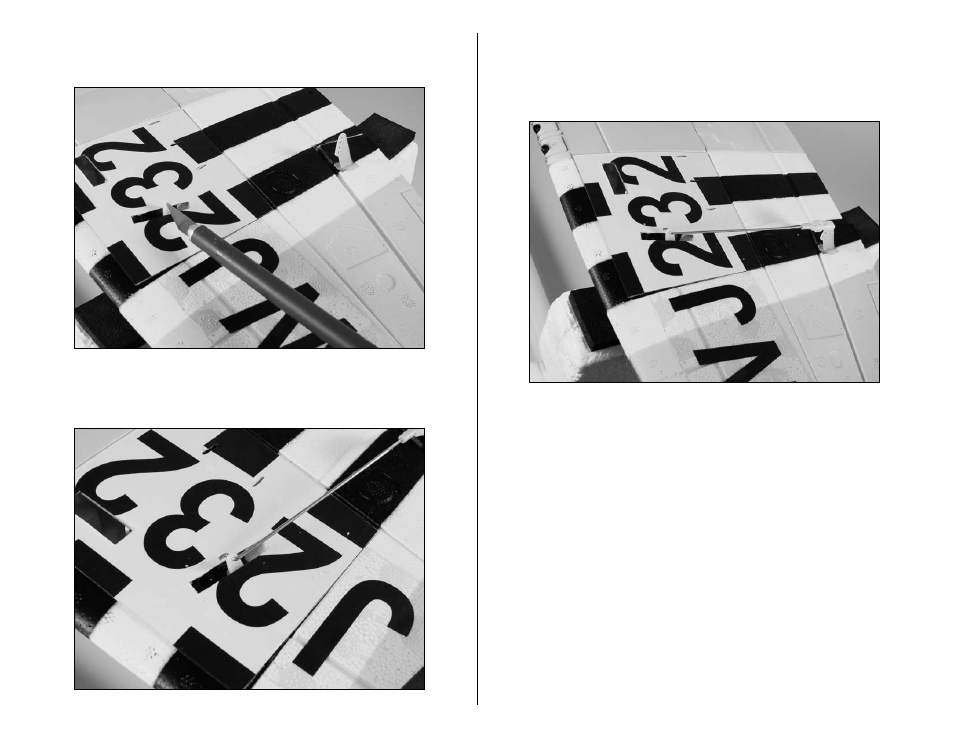

9. Use a hobby knife to enlarge the outer hole on the

aileron servo arm to accept the aileron linkage.



10. Insert the Z-bend on the aileron linkage into the outer

hole of the aileron servo horn.



11. Connect the clevis of the aileron linkage to the

aileron control horn. With the radio on, it may be

necessary to adjust the length of the linkage so the

aileron is centered.

12. Repeat Steps 9 through 11 to connect the remaining

aileron linkage.
