E-flite Hawker Sea Fury 400 ARF User Manual
Page 22
22
E-flite Hawker Sea Fury 400 ARF Assembly Manual

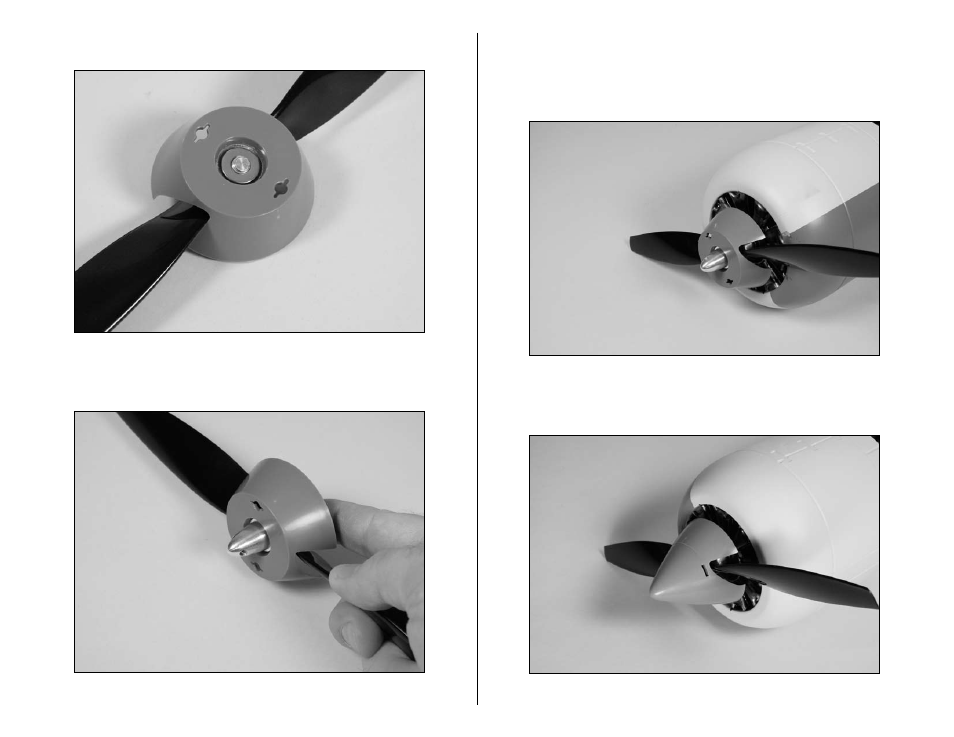

14. Next, slide the supplied washer onto the adapter.
16. Install the adapter nut, but do not tighten it at
this time.
17. Place the spinner assembly on the motor shaft.
Check that the positioning of the assembly will allow the
backplate and propeller to spin without rubbing on the
cowling. Tighten the adapter nut once all is well.
18. Snap the spinner cone onto the spinner backplate to
complete the motor assembly.
