8 E-flite Hawker Sea Fury 400 ARF Assembly Manual
Fixed Gear Installation
Required Parts
Fixed main gear wire (right and left)
Landing gear block (2) 2mm x 10mm shoulder screw (4)
3mm x 6mm countersunk sheet metal screw (8)
Required Tools and Adhesives
Phillips screwdriver: #0, #1

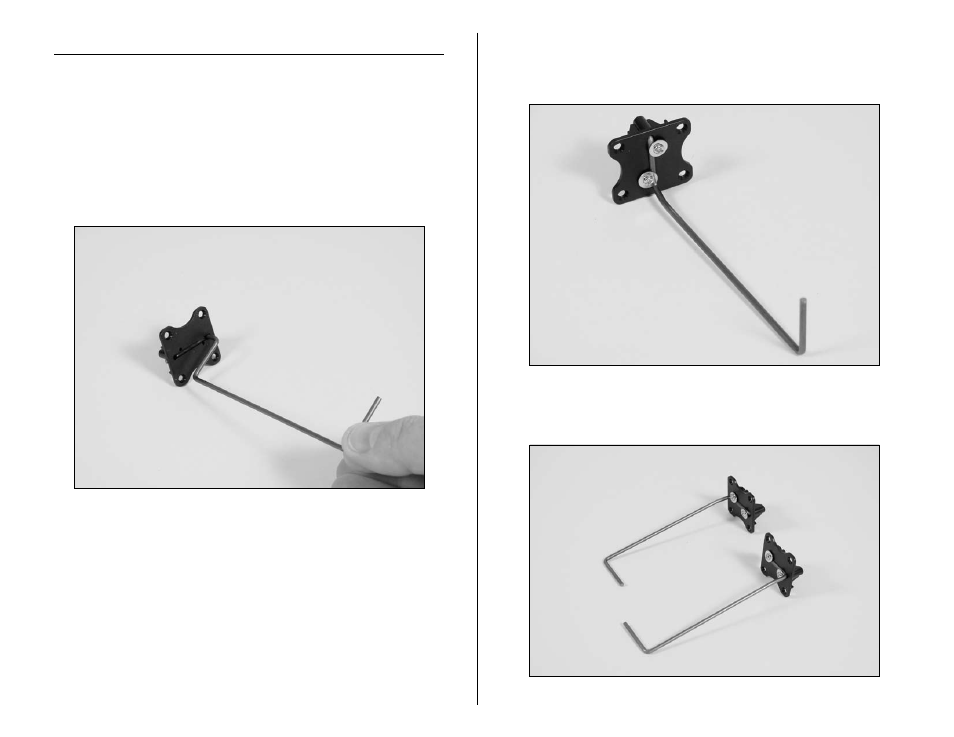

 1. Insert the landing gear into the landing gear block.
 2. Use two 2mm x 10mm shoulder screws and a #0
Phillips screwdriver to secure the landing gear to the
landing gear block.
 3. Repeat Steps 1 and 2 to assemble the second landing
gear. (Make one left and one right)
