2 Installation
791 VA Detector
12
• Screw nipple 36 onto screw nipple 33 to fix outlet capillary 37
is position.
4 Discharge
• Pull outlet capillary 38 which is already mounted on cell body
32 through one of the openings in the rear panel of the 733 IC
Separation Center so that it emerges outside the instrument.
• Insert outlet capillary 38 in a sufficiently large waste container
and fix it in position.
28
29
30
31
32
31
33
34
35
36
37
27 31
35
36
38
41 39 31 40

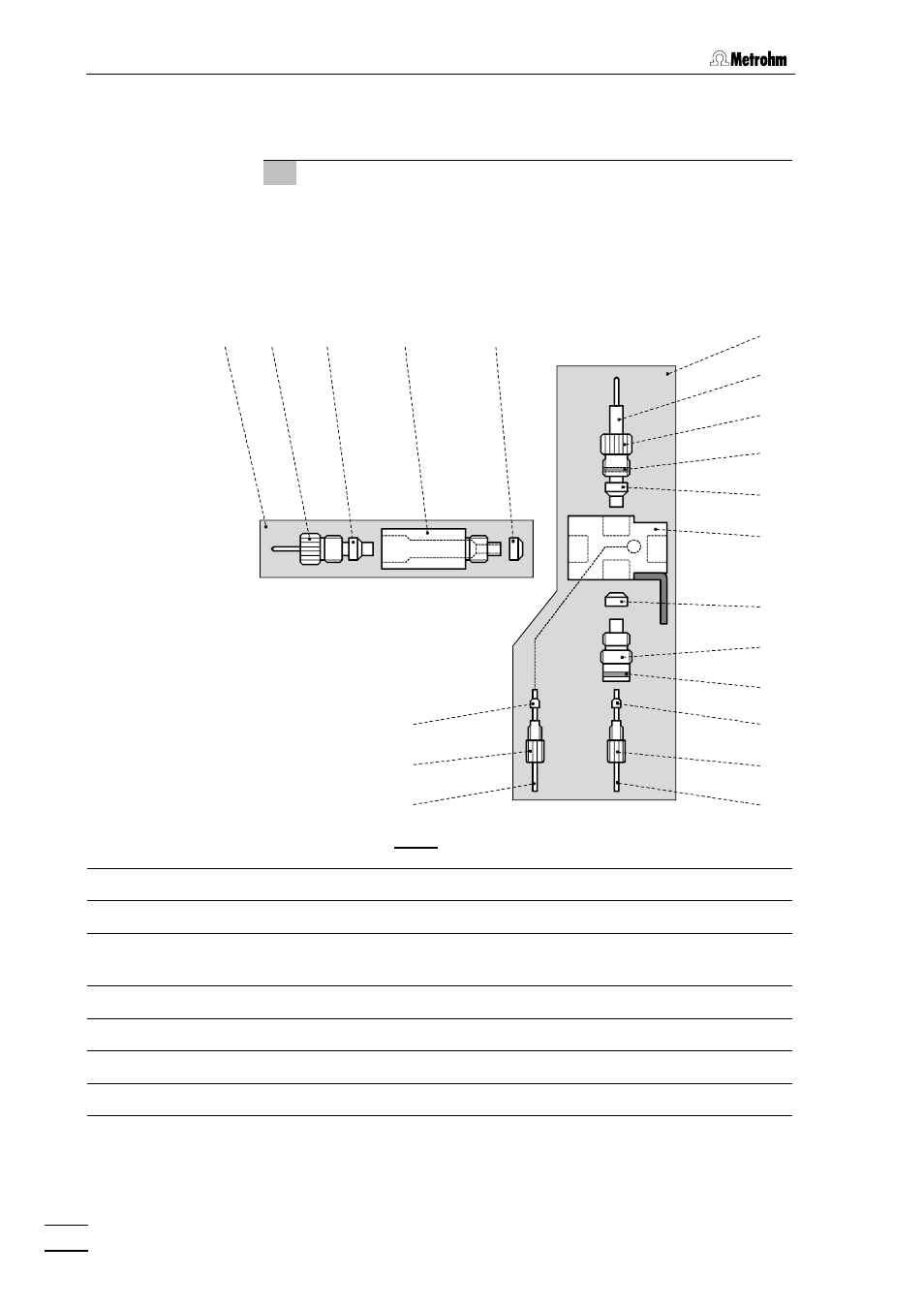

Fig. 5: ELCD cell assembly
27 ELCD cell (6.5303.030) 35 PTFE gasket (6.2704.020)
28 Working electrode 36 Screw nipple (4.420.2580)
29 Screw nipple (6.2730.000) 37 PEEK outlet capillary from
1.733.0X10 Detector block
30 Sealing ring (E.301.0028) 38 PTFE outlet capillary (6.1803.000)
31 PTFE gasket (6.2704.010) 39 Reference electrode (6.0727.000)
32 Cell body 40 Ag/AgCl Reference system
33 Screw nipple (6.2731.030) 41 Electrolyte vessel
34 Sealing ring (E.301.0004)
