Page 50: Figure 27, Tubing

3.14 Connections
■■■■■■■■■■■■■■■■■■■■■■
42
■■■■■■■■
864 Robotic Balance Sample Processor
3 Fasten the ionizing bar
■
Fasten the ionizing bar to the holder as shown in the preceding
illustration and fix it in place with the two accompanying hexagon
nuts.
4 Connect the cables
■
Connect the cable of the ionizing bar to the control device.
■
Connect the control device to the mains supply.
Note
The ionizer must be switched on by hand before a determination ser-
ies.
3.14
Connections
The following figures show all necessary cable and tubing connections as
an overview.
3.14.1
Tubing connections
T1
T2
864
809
800
800
843
S
W
P1
P2
S
T
P
1
2
3
4
5
6
7

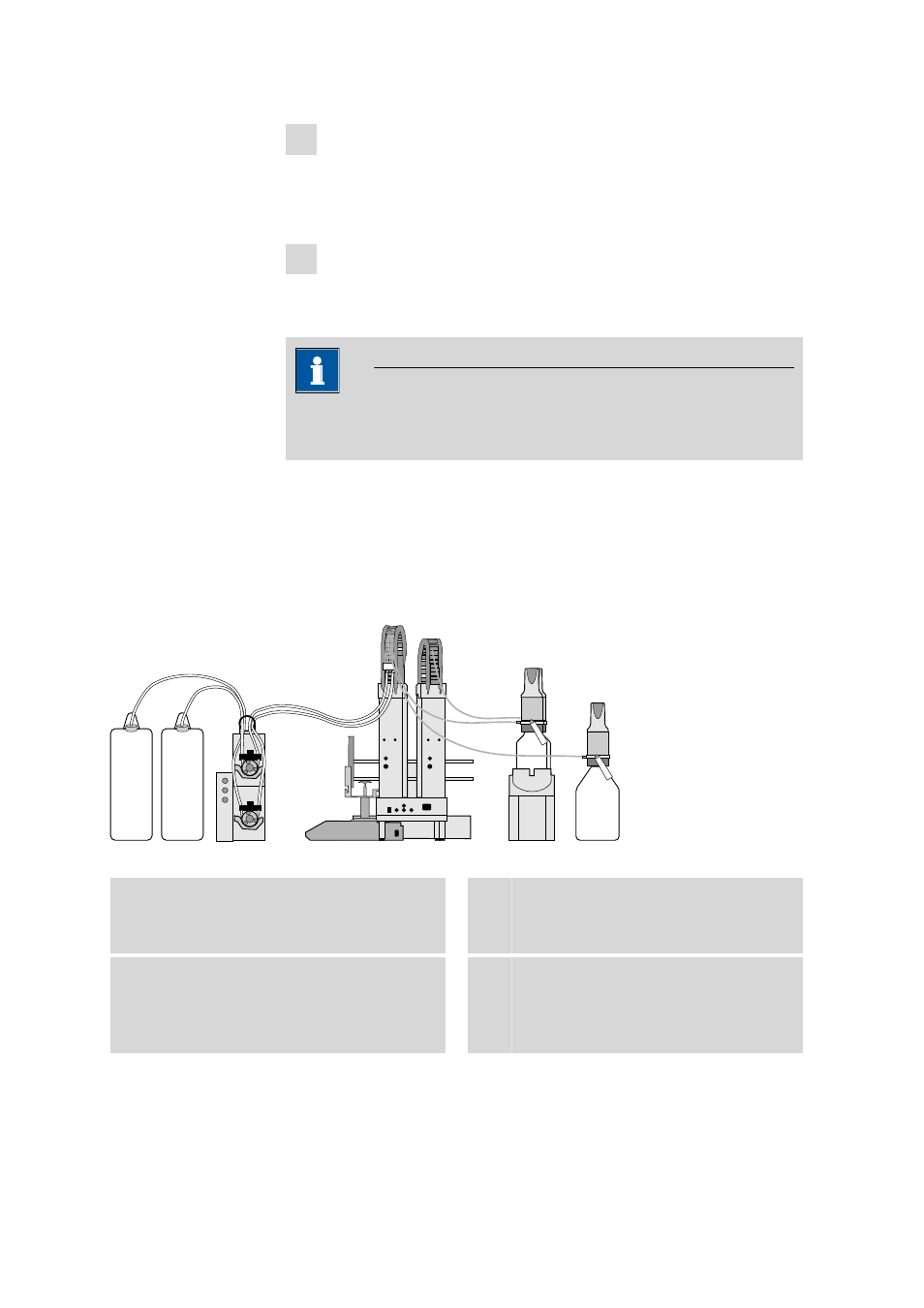

Figure 27
Tubing
1
Waste
6.1812.000 PTFE tubing.
Waste canister W
— 843 pump 2
2
Solvent
6.1812.000 PTFE tubing.
Supply canister S
— 843 pump 1
3
Aspiration tubing
6.1812.000 PTFE tubing.
843 pump 2
— 864 distributor, connector
on the right
4
Rinsing tubing
6.1812.000 PTFE tubing.
843 pump 1
— 864 distributor, connector
on the left
