3.8
Installing the washing station
If a more intensive rinsing procedure is required, then a washing station
(additional equipment 6.5622.000) can be used. This is not included in
the standard equipment. In addition, a second 843 Pump Station is
also required.
1
2
3
6.1812.000
6.1812.000

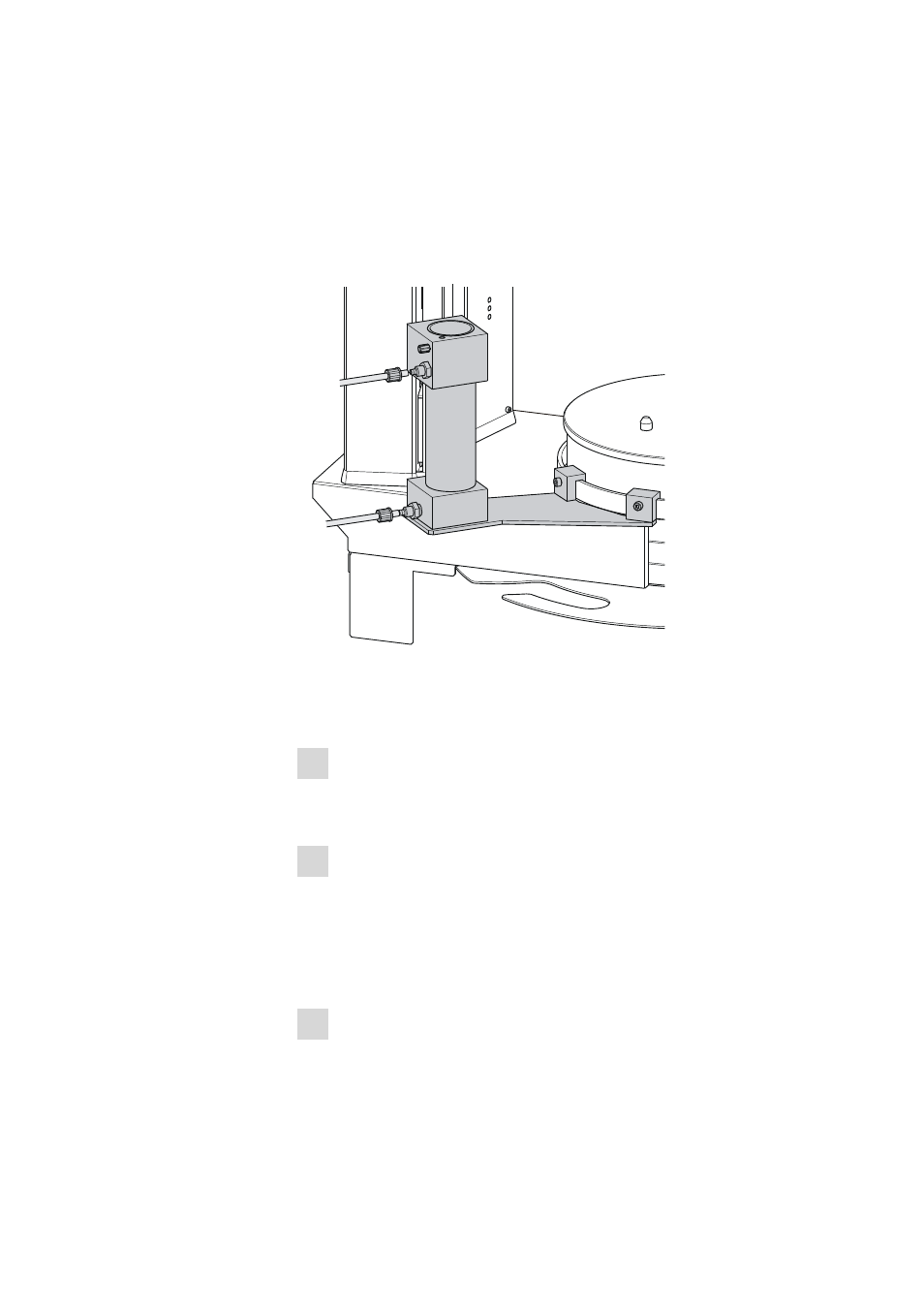

Figure 18
Mounting the washing station
In order to be able to mount the washing station, remove the sample rack
and the drip pan. Afterwards, proceed as follows:
1 Mount the washing station
■
Mount the washing station to the left next to tower 2 on the
assembly rail and screw it tightly.
2 Mount the outlet
■
Fasten a 6.1812.000 PTFE tubing to the lower tubing connector
of the washing station.
This is the outlet of the washing station.
■
Shorten the tubing to a suitable length and connect it to the aspi-
ration pump of the second 843 Pump Station.
3 Mount the feed line
■
Fasten a 6.1812.000 PTFE tubing to the upper tubing connector
of the washing station.
This is the feed line for the rinsing liquid.
