1.2 Parts and controls

754 Dialysis Unit

3

S

WARNING - Fire Hazard -

with the same type and rating of fuse

For continued protection replace only

Type 1.754.0010 Nr.

f=50-60 Hz

S=12 VA

Fuse

115V: 110-120V:

230V: 220-240V:

0,2A(T)

0,1A(T)

Pump

Made by Metrohm Herisau Switzerland

14

14

13

13

12

12

16

16

15

15

11

11

Remote

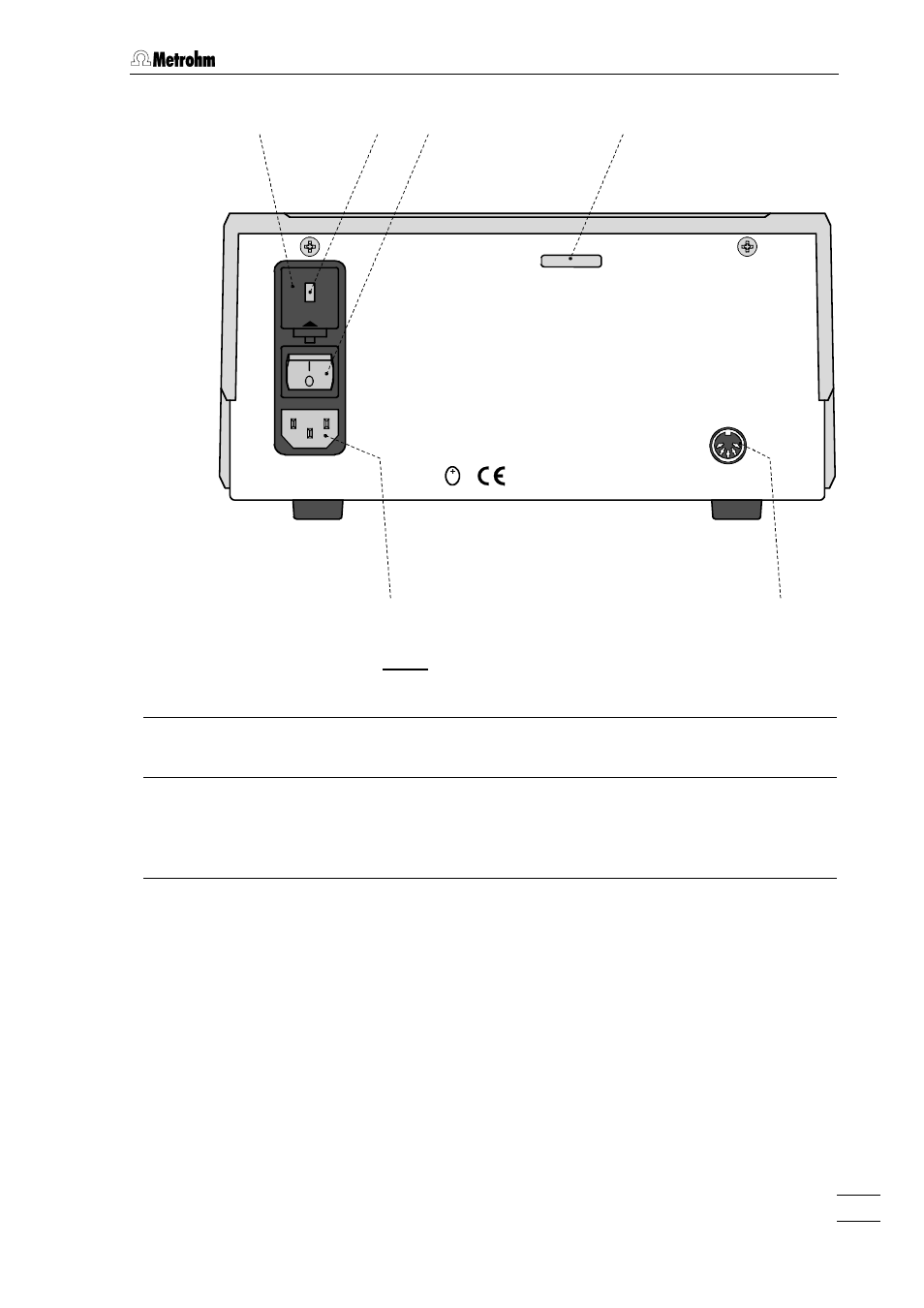

Fig. 2: Rear of the 754 Dialysis Unit

11

11

Fuse holder

Changing the fuses, see section 2.2

14

14

Serial number

12

12

Voltage selection insert with

display of voltage

15

15

Remote interface

Remote I/O lines for connecting

external devices (e.g. 732 IC De-

tector)

13

13

Mains switch

For switching the instrument on/off:

I = ON

0 = OFF

16

16

Mains connection plug

Mains connection, see section 2.2
