2 Installation
754 Dialysis Unit
16
4 Close dialysis cell
• Place top part 38 38 on bottom part 35 35 so that both parts lie
flush.
• Using the 6.2621.070 Allen key, screw the 5 screws 39 39 right
in and tighten up.
5 Attach dialysis cell
• Insert the assembled dialysis cell 34 34 in the cell holder 66 of the
754 Dialysis Unit.
40 40
34 34 35 35 36 36 38 38 39 39 37 37
41 41 42 42 43 43 44 44 40 40

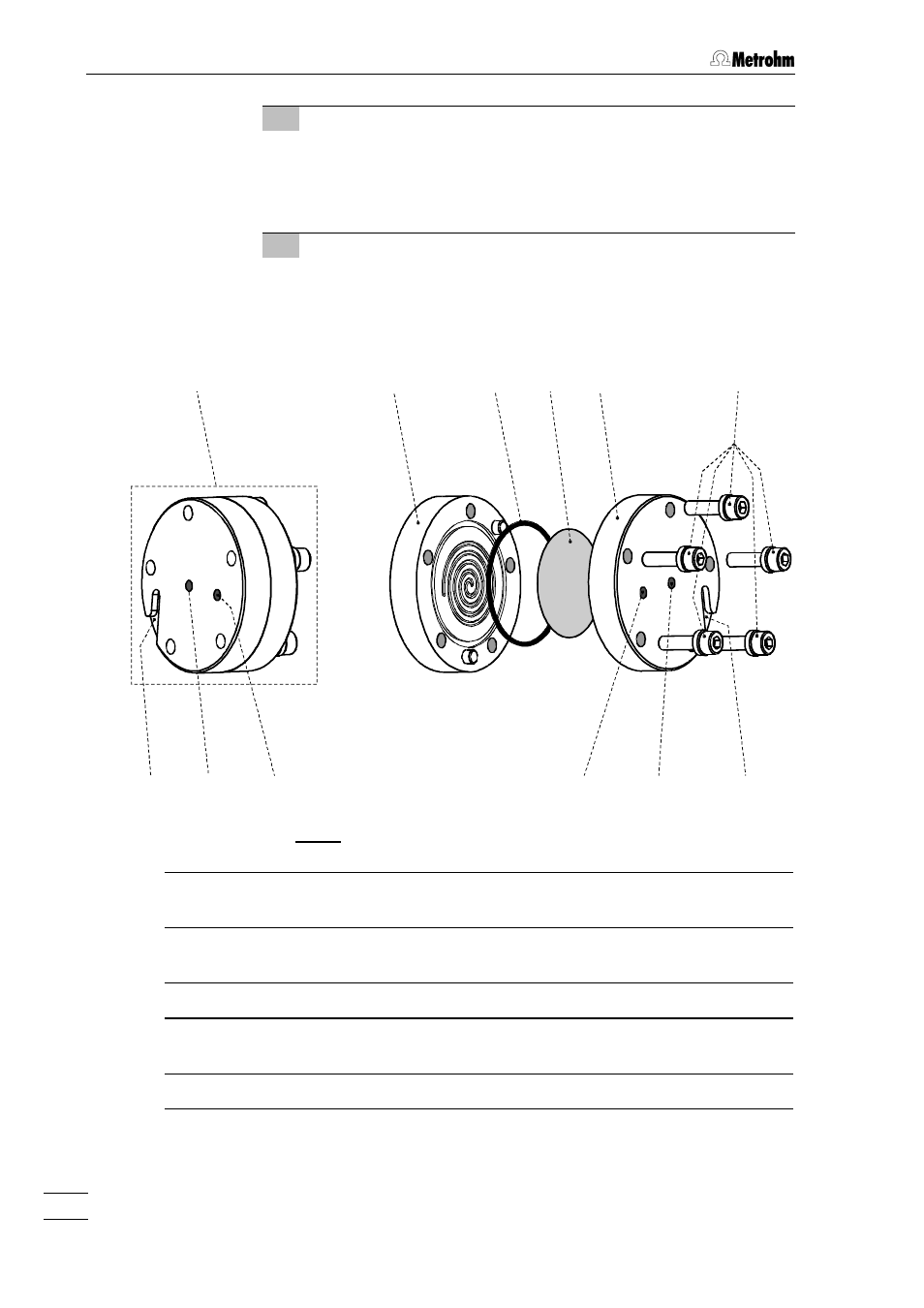

Fig. 7: Assembling the dialysis cell
34 34 Dialysis cell (6.2729.100) 40 40 Slot for positioning the dialysis
cell in cell holder 66
35 35 Bottom part of the dialysis
cell
41 41 Outlet for acceptor solution
36 36 Sealing ring (E.301.0111) 42 42 Inlet for acceptor solution
37 37 Dialysis membrane
(e.g. 6.2714.010)
43 43 Inlet for sample solution
38 38 Top part of the dialysis cell 44 44 Outlet for sample solution
39 39 Screws V.022.6030 incl.
washer 4.754.4090
