2 Installation
754 Dialysis Unit
12
FILL INJECT
STEP
FILL INJECT
A B
25
19 19
18 18
27 27
22
21
23
24
17 17
41 41
20
28 28 21 21 22 22

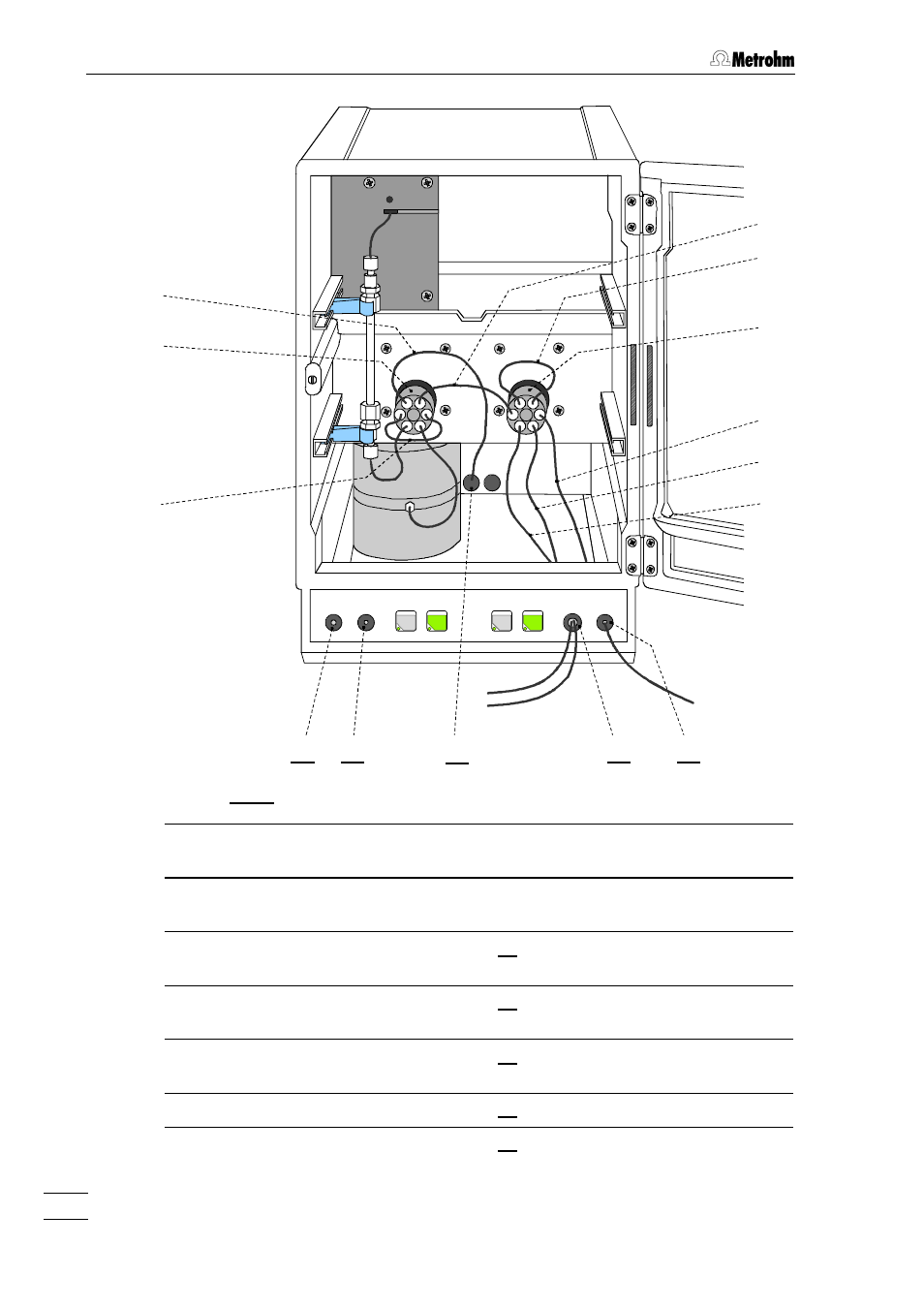

Fig. 5: Interior of the 733.0020 IC Separation Center
17 17 PEEK sample loop
(6.1825.210; 20 µµL )
24 24 PEEK capillary
(6.1831.050; 40 cm)
18 18 Injection valve A 25 25 PEEK capillary
(6.1831.050; 40 cm)
19 19 PEEK capillary
(6.1831.060; 1 m)
21 21 Connection for syringe
20 20 PEEK capillary
(6.1831.040; 15 cm)
22 22 Feedthrough
21 21 PEEK capillary
(6.1831.040; 15 cm)
27 27 Feedthrough
22 22 Injection valve B 28 28 Feedthrough
23 23 PEEK capillary
(6.1831.040; 15 cm)
41 41 Rear panel opening
