R-Series Data Center Products User’s Guide Chassis and Blade Installation • 73
– R1350 Using a C/Port
MSL header JP6 is located to the left of the DIMM slots, above and to the left
of the SATA cable, as shown in the following figure.

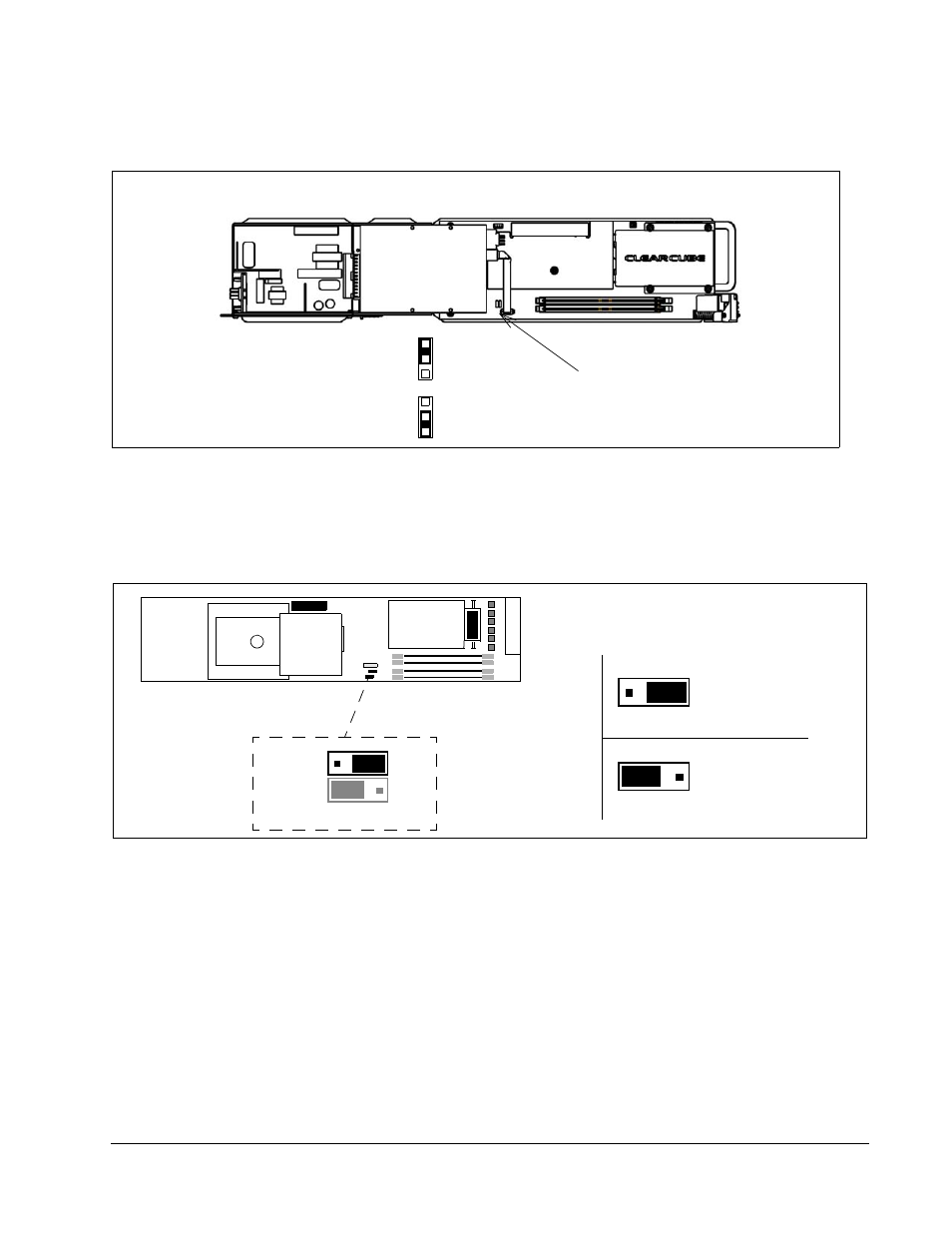

Figure 38 R1350 MSL Header and Jumper Settings for Use with C/Port
– R3080D
MSL header JP6 is located below the video card and to the right of the
Ethernet port on the bottom edge of the blade, as shown in the following
figure (the CMOS header is immediately below the MSL header; ensure that
you move the jumper on the top-most header, not on the CMOS header).
Figure 39 Model R3040S MSL Header Location and Settings (Default Setting Shown on Motherboard)
1
3
1
3
R1350 and MSL Header and Jumper (for MSL on C/Port)
USB Mass Storage
Devices Do Not
Function
USB Mass Storage
Devices Function
Normal (Default)
MSL Header JP6
on Motherboard
MSL Disabled
Access to
USB Device Is
Permitted
(Default Setting)
MSL Enabled
Access to
USB Device Is
Prohibited
Front of Blade
MSL
R520
CMOS
JP10
JP6
1
MSL Header (on Top)
