R1350 Labels

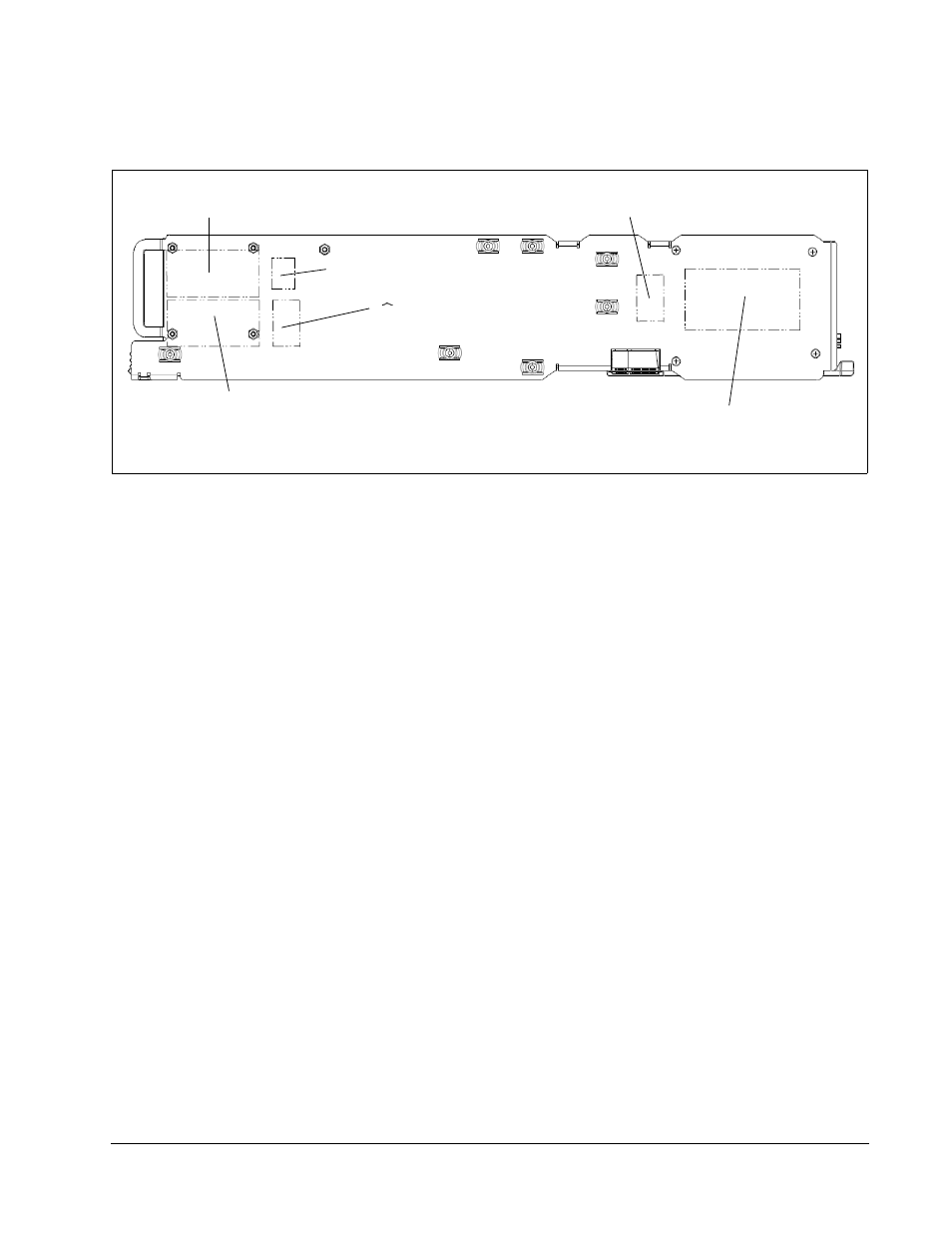

The following figure shows the label on the blade exterior that specifies each network
adapter MAC address and additional labels.
C/Port Cabling
When connecting a C/Port to an R3040S, only use C/Port connectors 2, 4, 6, or 8 on
the Connect Bay Module (located on the far left side of the chassis). For example, if
an R3040S is in chassis slots 3 and 4, connect your C/Port to connector 4. Connect
C/Port cables to the Connect Bay Module, as shown in Table 4 on page 28.
R3080D Cabling
The rear of a ClearCube chassis (shown Figure 27 on page 40) provides up to 2
Gigabit Ethernet ports (1 primary port and 1 secondary port) for each R3080D blade,
depending on video card configuration. The following list describes each possible
video configuration.
•
ClearCube MVX (MGA6) and onboard graphics—in R3080D blades with
these video configurations, the primary and secondary ports of the slot that the
blade occupies are Gigabit Ethernet. For example, if the blade is in slot 3, primary
port 3 and secondary port 3 provide Gigabit Ethernet for the blade.
•
V5x20 PCoIP Host card—in R3080D blades with this video configuration, the
primary port is Gigabit Ethernet and the secondary port is for PCoIP
communication. For example, if the blade is in slot 3, primary port 3 provides
Gigabit Ethernet and secondary port 3 provides PCoIP communication.
Blade Part Number &
Regulatory Compliance
Blade System Configuration Details
(Including OS, CPU, Memory,
Hard Disk, and Video Card)
Intel Inside Decal
Blade Serial Number &
Network Adapter MAC Addresses
Video Configuration
Microsoft Certificate of Authenticity
