R-Series Data Center Products User’s Guide Chassis and Blade Installation • 27
The first three characters of a module’s serial number, shown on the back apron and
visible when the module is installed in its bay, are the same as the module’s
abbreviation. For example, the serial number
XCM12345 identifies a 8 x 8 Connect
Module.
To remove a Connect, Management, or Network module, press down on its green
lever (or levers) until the module is released, and pull the module out of its bay.

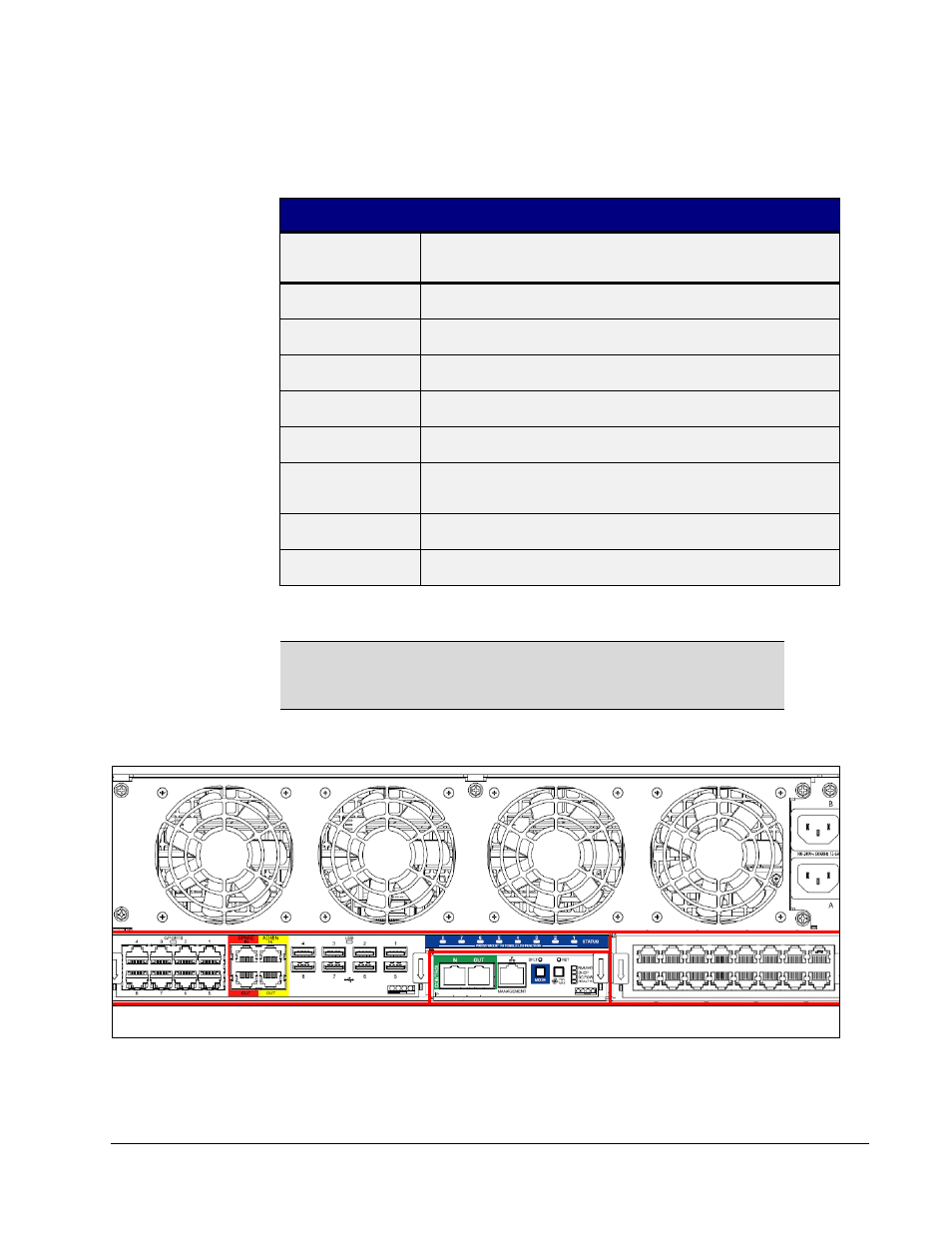

Figure 20 shows the back apron of the R4300, with the three module bays designated.
Figure 21 shows typical R4300 modules.
Figure 20 R4300 Module Bays
Table 3 Serial Number Formats for R4300 Modules
Serial Number
Format
Module
ACMxxxxx R4380 – Administrator Connect Module
XCMxxxxx R4387 – 8 x 8 Connect Module (C/Port Switching)
RMMxxxxx R4345 – Remote Management Module
EP2xxxxx R4363 – Ethernet Passthrough 16-Port GB Module (EP2)
EP6xxxxx R4362 – Ethernet Passthrough 16-Port Module (EP6)
FPMxxxxx
R4320 – Fan Pack Module (contains Variable Fanspeed
Controller)
DIMxxxxx R4315 – Dual AC Input Module
PSUxxxxx R4316 – Power Supply Unit
NOTE
When hot-swapping Management, Connect, and Network
Modules from an R4300, remove the module and wait for at
least 5 seconds before replacing it.
Connect Bay Management Bay Network Bay
