98 • Hardware Upgrade and Replacement Procedures R-Series Data Center Products User’s Guide

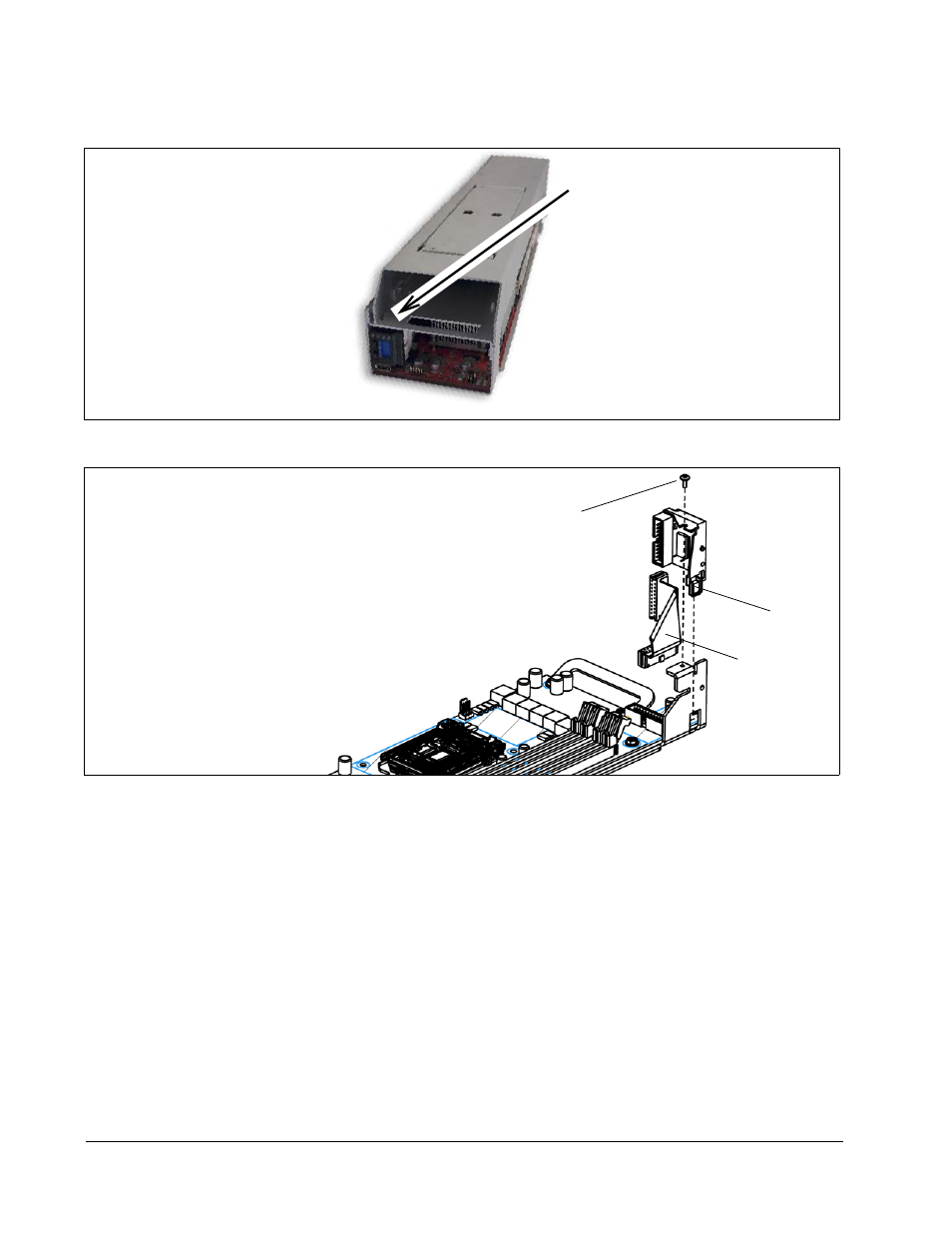

• R3040S—Insert a screwdriver in the access hole, shown below, to remove the
screw.
• R3080D and R1350—Remove the LCD screw, shown in the following
figure.
4. Remove the LCD panel.
a. From the front of the blade, grasp the LCD panel and cable and lift the panel up.
b. Gently rotate the LCD panel forward toward the opposite, interior wall of the
blade. Ensure that you do not bind or break the tab extending through the hole
Access Hole for
Front LCD Panel Screw
Insert Screwdriver Here
LCD Screw
Tab
LCD Cable
