38 • Chassis and Blade Installation R-Series Data Center Products User’s Guide
control. One or more RMMs need to be connected to Ethernet to allow
auto-negotiation and control failover. Figure 25 shows an example of this.

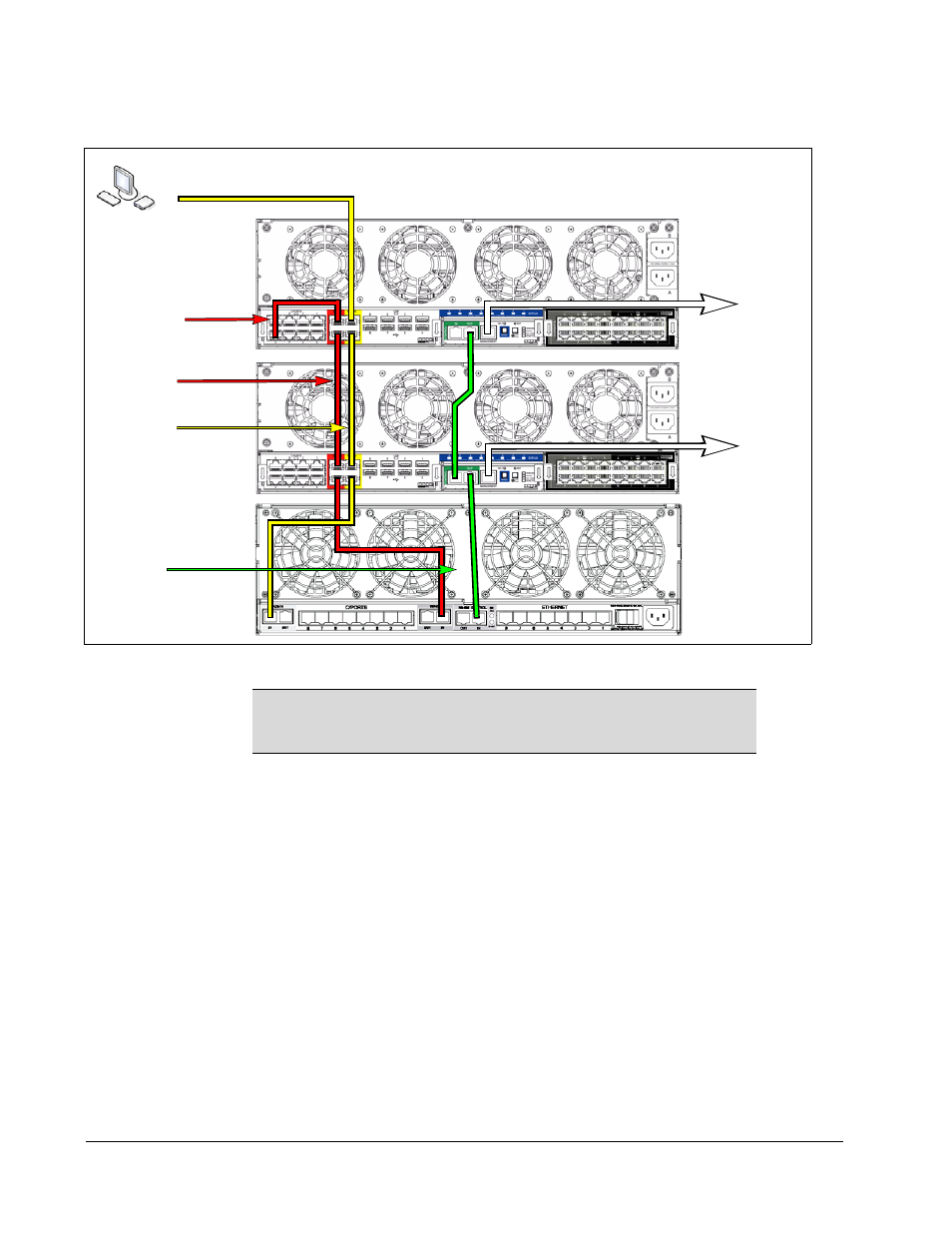

Figure 25 Mixed-Mode Daisy-Chain Cabling Example
NOTE
With an RMC-equipped BSBP as Primary, no other chassis in
the Control Chain can serve as Secondary, because Secondary
mode is not supported on the RMC.
Admin C/Port
CLEARCUBE
Spare
Primary R4300
To Network
Secondary R4300
Tertiary BSBP R4200
with E-net Control Link
Admin
Daisy Chain
Control
Chain
Configuration
Cable
To Network
with E-net Control Link
No RMC
Spare
Daisy Chain
Admin
Daisy Chain
No E-net Control Link
Admin C/Port
and Terminal
