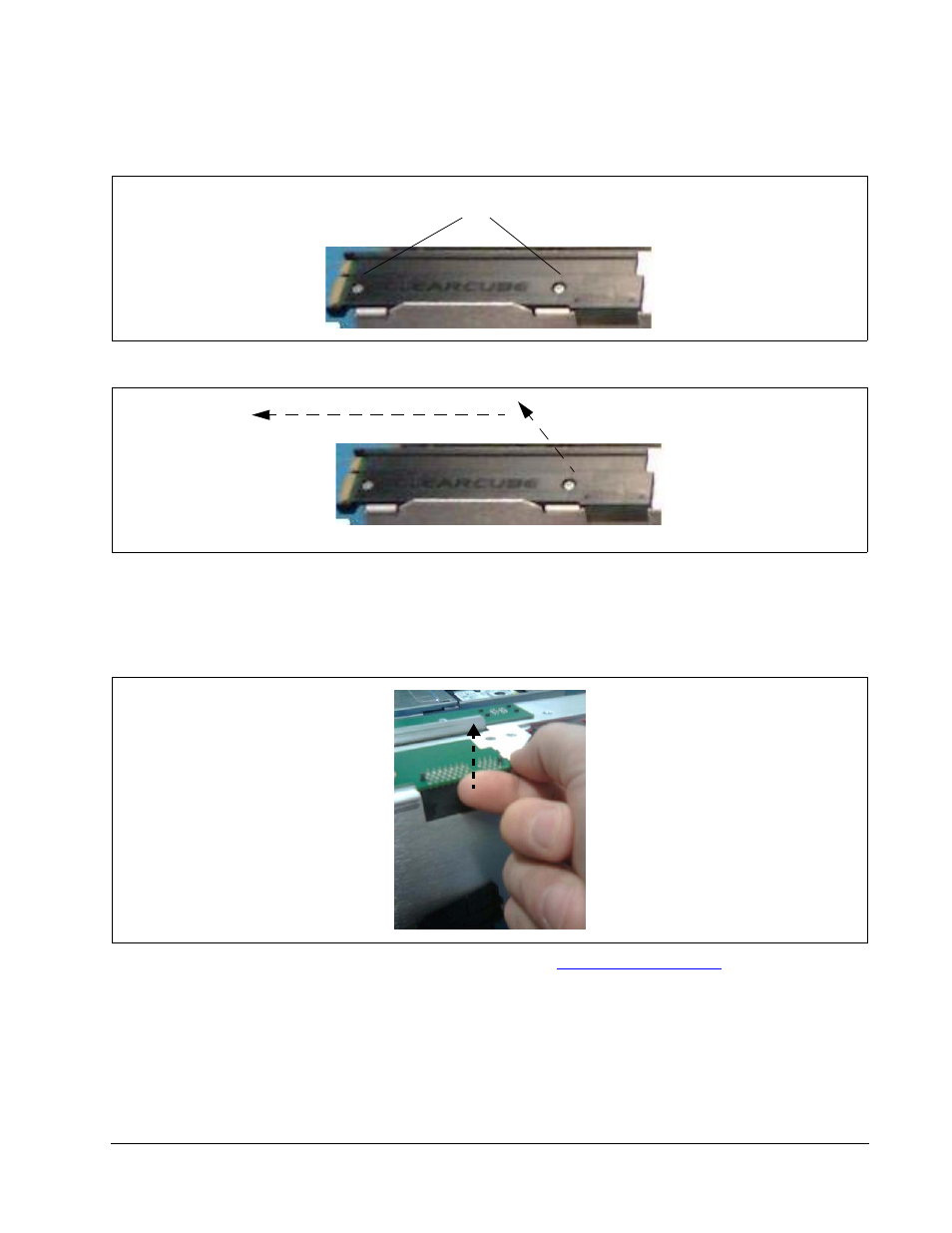

2. Ensure that you are working with the shorter of the two interposers, contained in
the black, plastic shroud.
3. Unscrew and remove both screws securing the interposer to the blade.
4. Use your finger to gently lift the right side of the shroud and remove it by sliding
it off the interposer to the right.
5. Remove the interposer:
a.
Using your right hand, place your thumb on the edge of the blade frame, just
to the right of the interposer.
b. Place the pad of your index finger on the edge of the circuit board. Gently
push up with your finger until the interposer is free from the blade.
Discard this interposer. Contact
for information
about recycling ClearCube products, or contact your local electronic waste
recycling authority.
6. Place the plastic shroud on the replacement interposer.
Screws
