MVX Installation

8. On the side window, click ClearView.

shows the resulting screen and the

default 1x1 display configuration.

9. In the Select Display Configuration menu, select the configuration that matches the

physical layout of the monitors and click Apply. The recommended Preferred Display

Refresh rate is 3x.

Note: Selecting a display configuration of 1x1 automatically enables the built-in Clone Mode

functionality. In Clone Mode, all monitors connected to the MVX display the same

video image, including the startup BIOS screens.

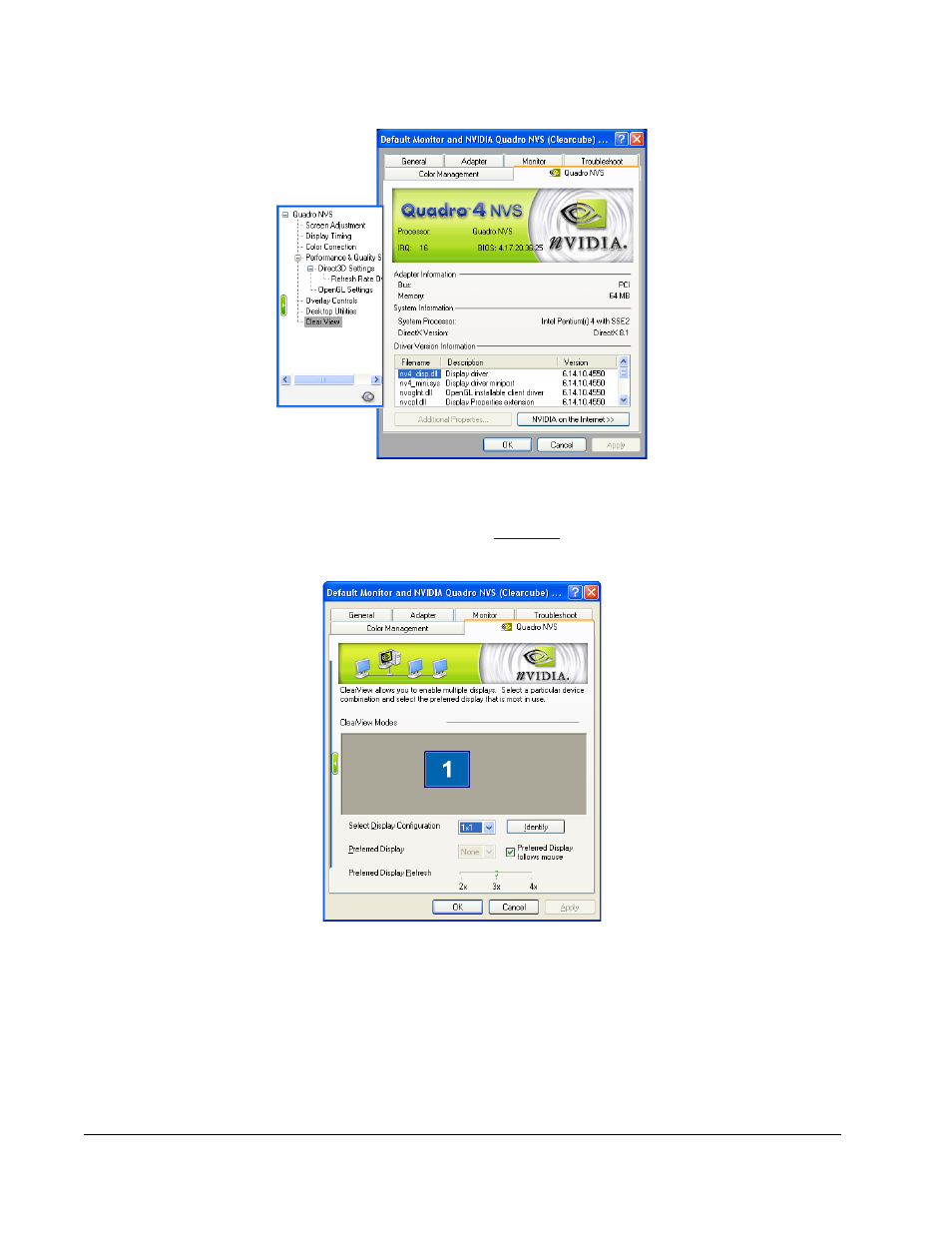

Figure 20. Quadro NVS Tab

Figure 21. Default 1x1 Monitor Configuration
