22 • C/Port Installation
Understanding Default Network Addresses
The C7420 Fiber C/Port and V5120 Dual Host are initially configured for DHCP connections.
If a DHCP server does not provide an IP address within 20 seconds of startup, the C7420 and
the V5120 use the default network addresses detailed in the following table.
Table 3. Default Static Addresses
Setting up Connections
The following sections describe how to configure your C7420 Fiber C/Port and dual–monitor
blade. Connect the devices using the any of the following methods as appropriate for your
environment.

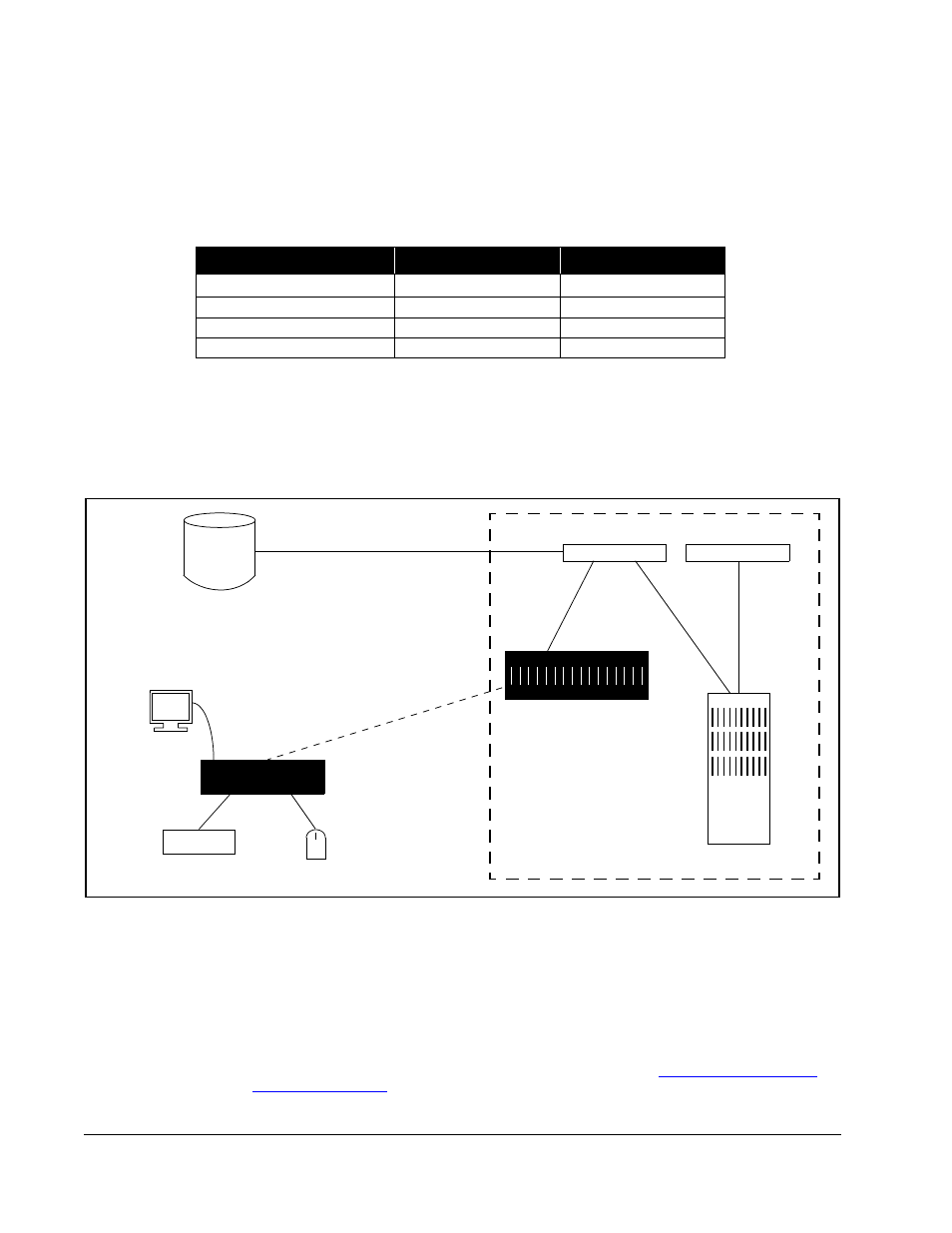

Figure 15. ClearCube architecture with C7420 Fiber C/Port and F6150–160 fiber transceiver
Direct Connection
To perform the following steps, you must have the IP and MAC address of the V5120 Dual
Host card in the blade to which you are connecting. Default IP and MAC addresses are
provided in the following steps.
Note: The C7420 Fiber C/Port and V5120 Dual Host are initially configured for DHCP
connections. If a DHCP server does not provide an IP address within 20 seconds of
startup, the C7420 and V5120 use the defaults detailed in “ Understanding Default
Network Addresses ” on page 22.
C7420 Fiber C/Port V5120 Dual Host
IP Address 192.168.1.100 192.168.1.101
Subnet Mask 255.255.255.0 255.255.255.0
Gateway Address 192.168.1.1 192.168.1.1
Peer Address 192.168.1.101 192.168.1.100
C7420 Fiber C/Port
Keyboard Mouse
Network Switch
Chassis and Blades
F6150–160
Sentral Switch
Fiber Connection
Sentral
Server
Fiber Transceiver
Data Center
