28 • MVX Installation
Note: The monitor connector ends of each splitter cable are stamped with either a 1 or a 2 to
indicate the output sequence order.
The Multi-Video Solution supports several different resolutions and refresh rates. Table 4 lists
the supported combinations. These combinations apply per monitor, with all monitors set to
identical resolutions and refresh rates.
The ClearCube Multi-Video solution was designed and engineered to work with the Quadro4
video adapter on the PC blade. No tuning features are provided on the MVX. All tuning is
accomplished via the C/Port. Color tuning on the C/Port may be required for cable runs longer
than 100 meters.
Note: Fiber C/Ports do not require any tuning.

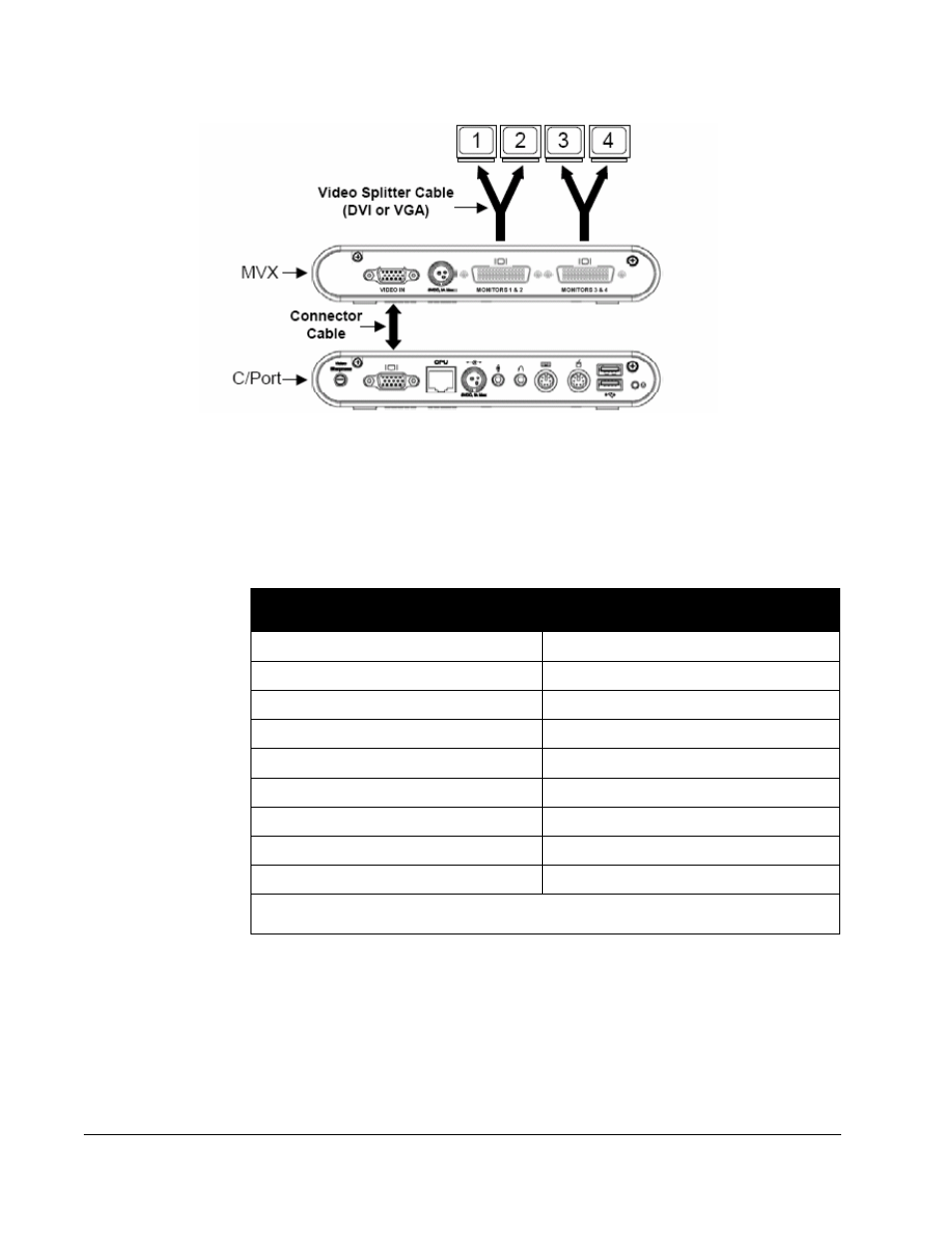

Figure 16. MVX Connection Diagram
Table 4. Supported MVX Resolution and Refresh Rates
Screen Resolution * Refresh Rates
640 x 480 (DOS mode only) 60 Hz
720 x 400 (DOS mode only) 60 Hz
800 x 600 60/75/85 Hz
1024 x 768 60/70/75/85 Hz
1152 x 864 75 Hz
1280 x 768 60/75/85 Hz
1280 x 960 60 Hz
1280x 1024 60/75 Hz
* When changing screen settings, the number of pixels is multiplied based on screen
orientation. For example, in 2x1 mode, at 1280 x 1024, the resolution is shown as 2560 x 1024.
