C7130 and C7120 C/Port Installation • 11
Identifying your Chassis
R4300 and R4200 chassis can easily be identified in your data center. Figure 6 on this page
shows R4300 and R4200 chassis. Note the difference in the connectors on the lower apron.
Unpacking the C/Port
The C/Port package contains one of each of the following items:
•
C/Port unit
• C/Port power supply and power cord
A special tuning tool for adjustments is included with the documentation and software
package in your shipment. A mounting adapter is available as an option from ClearCube to
conveniently mount a C/Port underneath a desktop. Figure 7 on page 12 shows the major
features on the front and back panels of the C/Port.

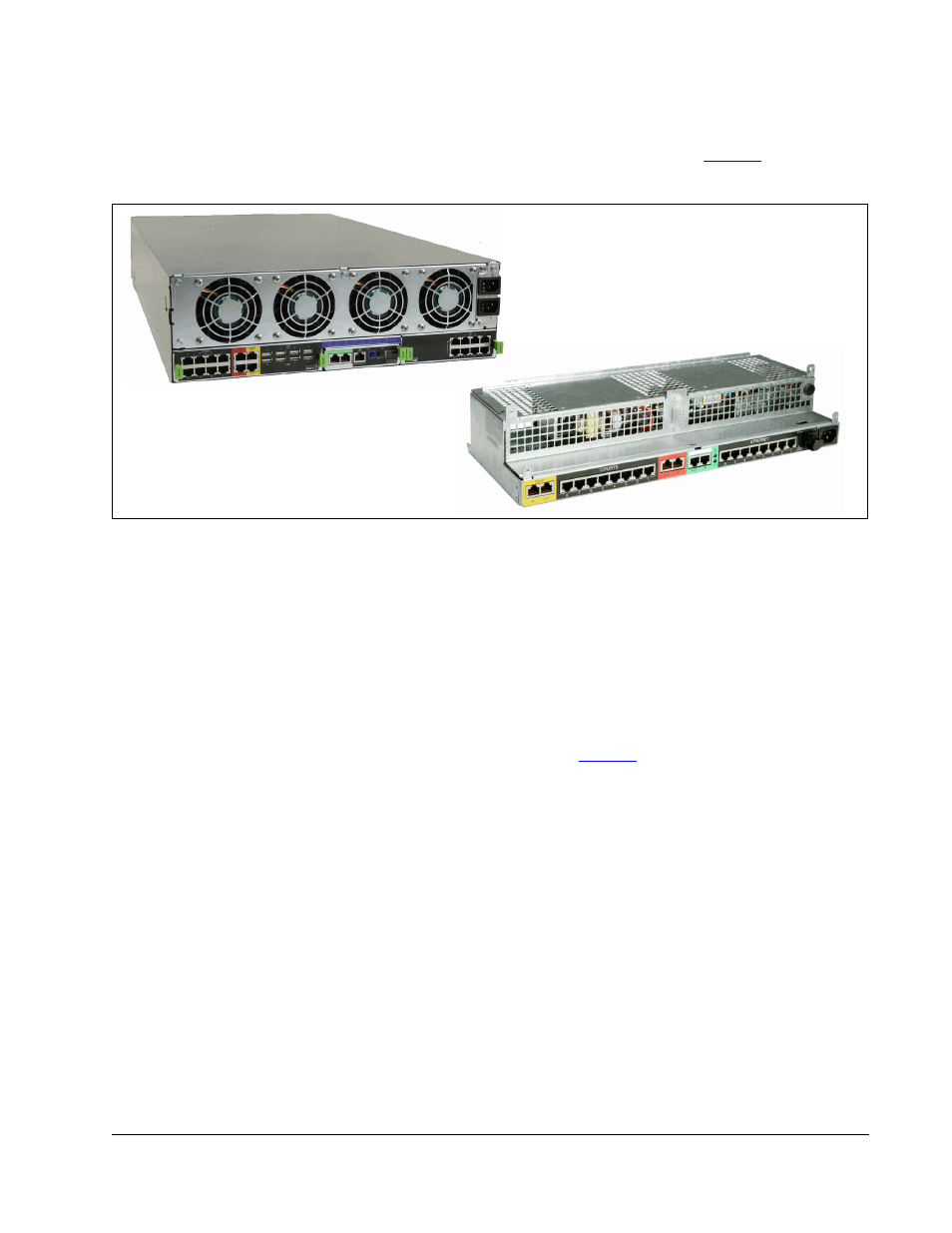

Figure 6. R4300 Chassis (L) and R4200 Chassis (R)
