ClearCube C/Port & MVX User Manual
Page 41

Software Installation and Configuration
• 31
5. Set the resolution to 1280 x 1024 (not all flat panel monitors support resolutions greater
than 1024 x 768) pixels and click Apply. Click OK if prompted.
6. Click the Advanced button and then select the Monitor tab, shown in
.
ClearCube recommends that the screen refresh rate be set to 60 Hz for flat-panel monitor
use, or 75 Hz for CRT use. Certain monitor models may work optimally at different
refresh rates, so these refresh rates should be used as guidelines, not requirements.
7. Click on the Quadro NVS tab. If the side window isn’t visible, click the green arrow icon
located in the left middle of the Quadro NVS tab. See
.

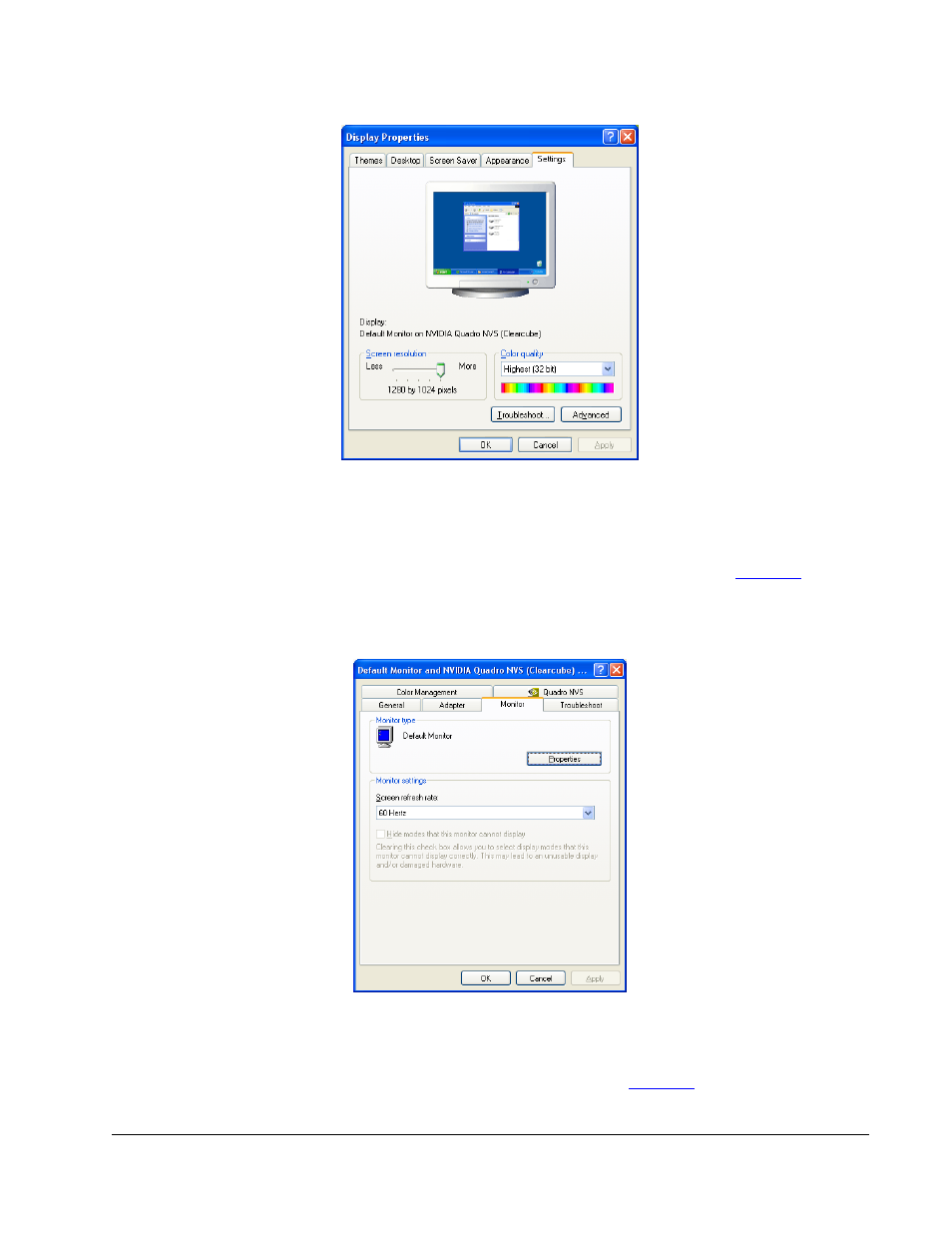

Figure 18. Display Settings Tab
Figure 19. Monitor Tab
