INSTALLATION
INSTRUCTIONS
9518 Instructions 6-26-13.Doc Page 5 of 7
Mirror Removal & Installation
37. Remove the existing vehicle mirror by twisting it
approximately 30 degrees. Carefully unplug the
existing mirror connector.

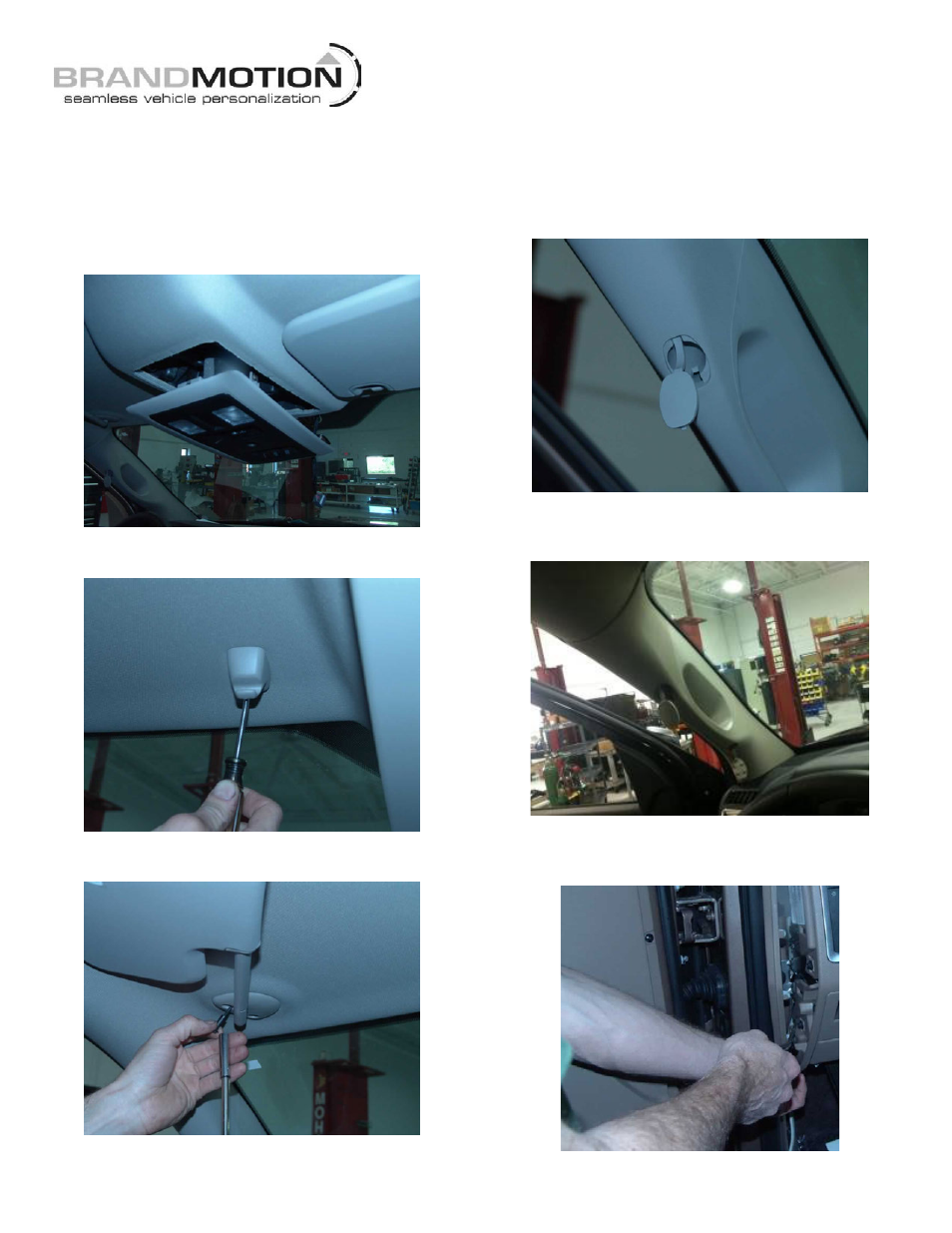

38. Remove the overhead console by releasing the
retention clips on the back of the unit, then pulling it
rearward.
39. Remove the driver’s side sun visor anchor using a
T20 Torx driver.
40. Remove the driver’s side sun visor using a 8mm
socket.
41. Remove both driver’s side A-pillar bolt covers using
a small Flat Blade Screwdriver. Insert screwdriver
into the gap between the bolt cover and A-Pillar
cover. Gently pry the bolt cover away from the A-
pillar cover while being careful not to damage trim.
42. Remove A-pillar bolts with a 10mm socket, and then
remove the A-Pillar cover by shifting it away from
the A-pillar with your hands.
43. Remove the driver’s side end of dash cover by
gently prying it away from the dashboard using a
Plastic Trim Tool. Be careful not to damage the trim.
